6881076C25-E
September 5, 2008
Troubleshootin
g Waveforms:
ASTRO Dig
ital Spectra Plus VOCON Board Waveforms
6-11

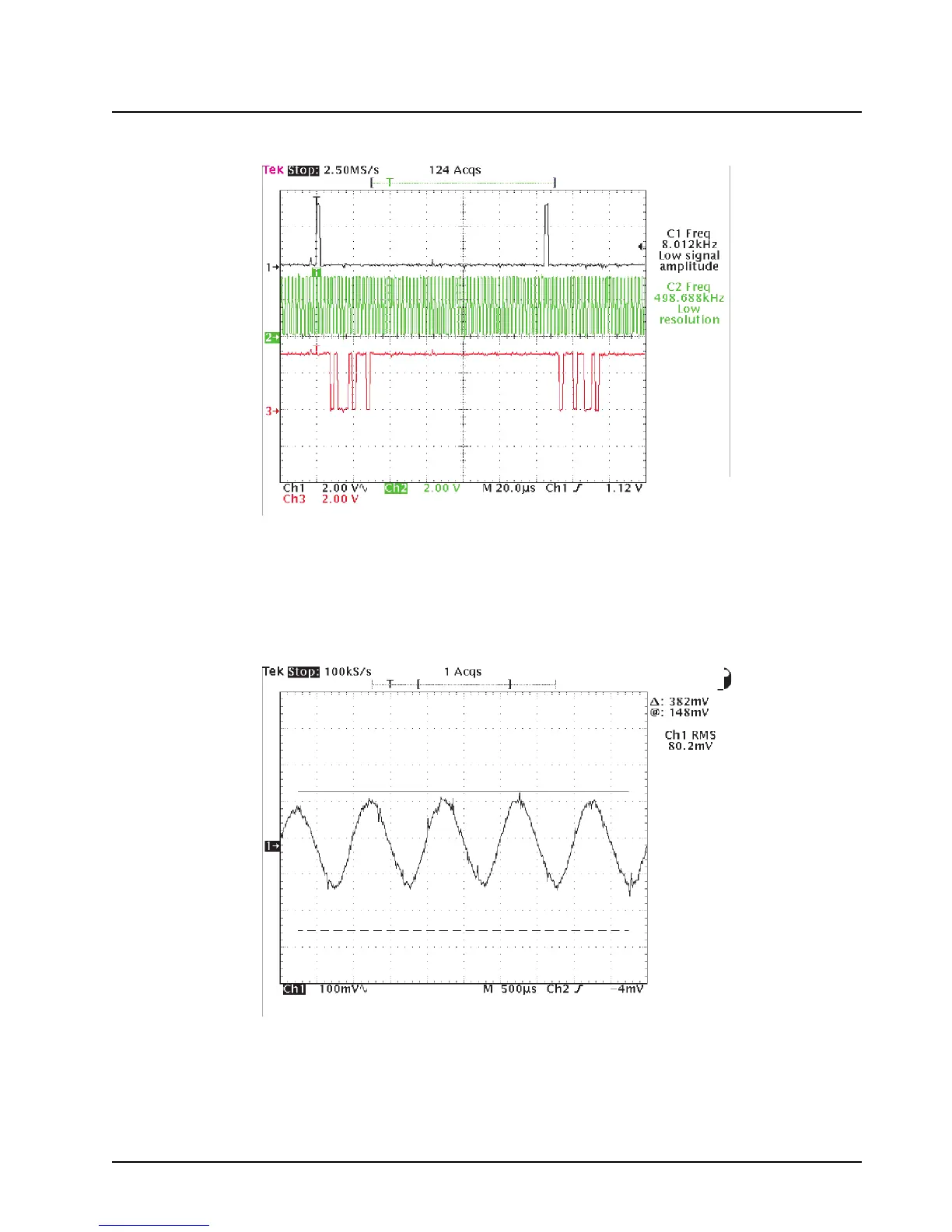

Serial Audio Port W
aveform
RX Audio W
aveform
Transmitting
1 kHz tone at 85mVrms into microphone
Trace 1 — U402 —
7 - Frame Sync
Trace 2 — U402 — 11 - Clock
Trace 3 — U402 — 13 - Data
Receiving
1 kHz tone at 3 kHz Dev, -47dBm
Trace 1 — U402 — 2
