Motorola ASTRO Digital Spectra User Manual

7-46 Schematics, Component Location Diagrams and Parts Lists: VOCON Section
September 5, 2008 6881076C25-E

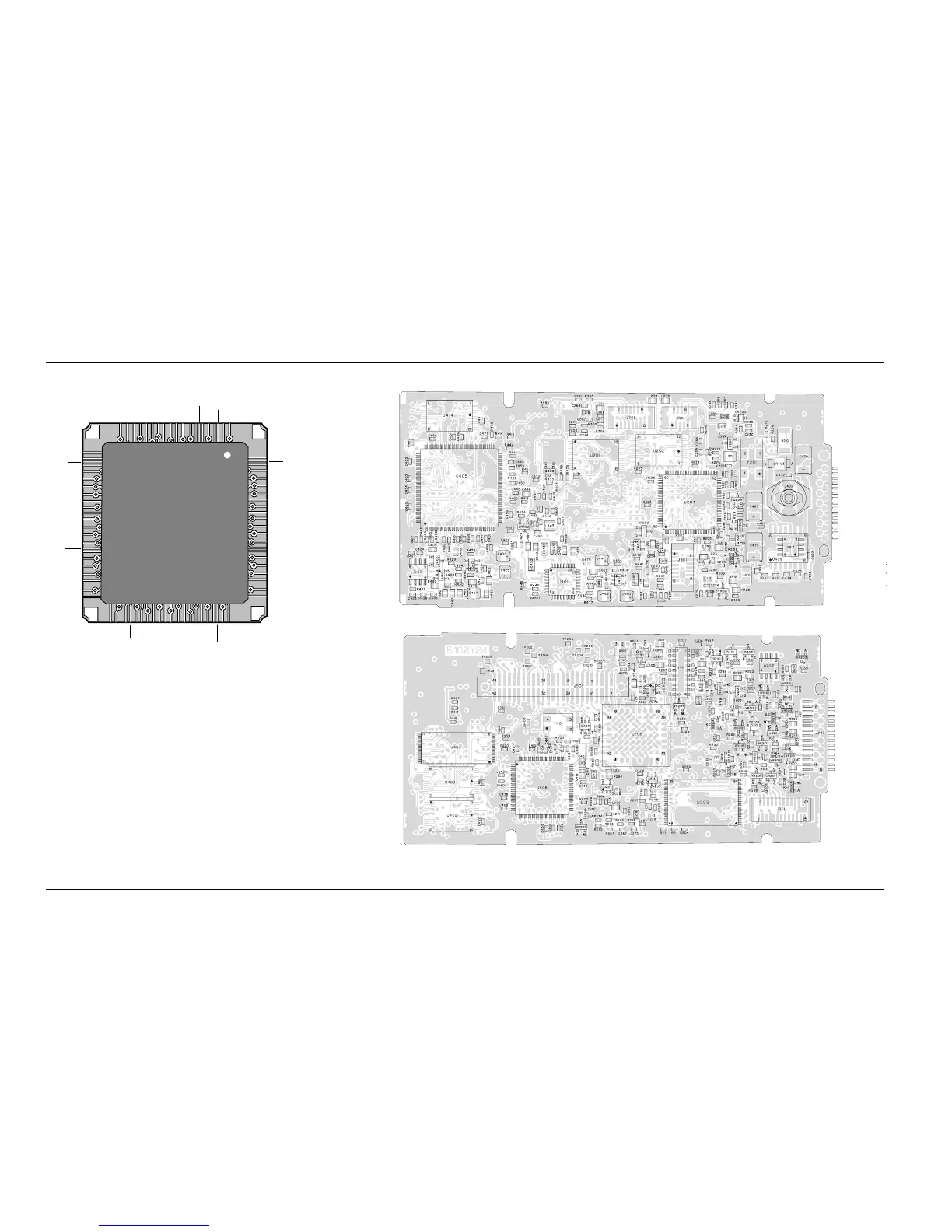

HLN6458H VOCON Board Component Location Diagrams
VIEWED FROM SIDE 2
HLN6458H
O.K. AS IS
O.K. AS MAR
ISS.
REVISION
RLS
E
CORRECTED
AS
MARKED
ILLUSTRATOR DATEENGINEERDATE PROGRAM DISK
MEDIA & COMMUNICATIONS DEP
T
DWG. NO.
EDITOR DATECHECKERDATE
Illustrator
Astro Saber Vocon
PCB - 8405160Y04
MAEPF-270
MAEPF-27099-O
JP 12/12/00
O
BW
SLIC
57W06 0
TXPG028NP06
ATWLYYWWW
D2
RXDIN
D6
D5
D1
D4
IRQB
HC11RST
D7
AVB
VDD3
VSS3
PH0
CEB
PH1
PH2
PH3
RTSBOUT
SCNSLB
PH4
BOOTRX
PH5
MAEPF-24370-O
Figure TP6: U206 - SLIC
A15IN
PL5
PK5
PK6
PK7
PM3
PM2
PM1
PM0
VSS2
VDD2
ROM1CSB
ROM2CSB
EE1CSB
EE2CSB
A14OUT
A15OUT
PL6
PL7
PH7
PH6
A1
A2
DECIN
A0
A3
OVERRIDE
POR
PK0
A4
SCNEN
PL0
VSS1
VDD1
PK4
PL4
PK3
PL3
PK1
PL1
PK2
PL2
RTSBIN
A14IN
LHRSTI
LHRSTOB
PJ7
PJ6
PJ5
PJ4
PJ3
BOOTSTRB PJ2 VDD4
VSS4
ECLK
PJ1
PJ0
OEB 4XECLK
D3
RWBIN
D0
MEMRWB
ASTRO SABER TP6
U206 - SLIC
JP 2/1/94
PR
MAEPF-24370
O
CHECK
ONE
O.K. AS IS O.K. AS MARKED
( )
( )
ISS.
REVISION
RLSE.
CORRECTED AS MARKED
ILLUSTRATOR DA TEENGINEERDATE PROGRAM DISK
DESCRIPTION
TECHNICAL PUBLICATIONS DEPT.
RLSE.
DWG. NO.
LETTERING SIZE:
REQUIRES:
EDITOR D ATECHECKERDATE
Illustrator
U206 - SLIC
VIEWED FROM SIDE 1
MAEPF-27098-O
