6881076C25-E September 5, 2008
Troubleshooting Waveforms: ASTRO Digital Spectra Plus VOCON Board Waveforms 6-13

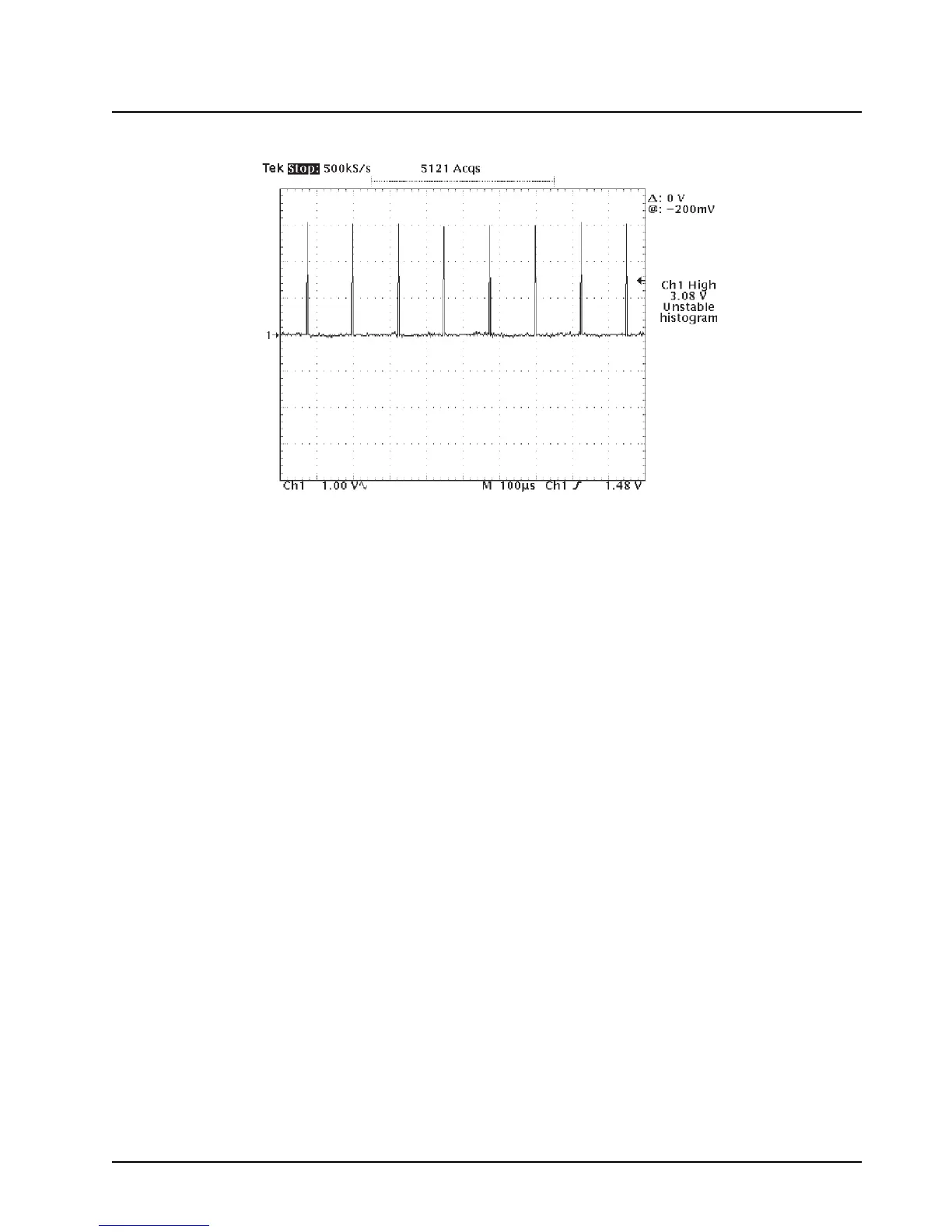

8 kHz Frame Sync for Security Circuitry Waveform
Receiving
1 kHz tone at 3 kHz Dev, -47dBm Secure Mode
Trace 1 — U601 — 5
