7-110 Schematics, Component Location Diagrams and Parts Lists: RX Front-End Section
September 5, 2008 6881076C25-E
RX Front-End Section

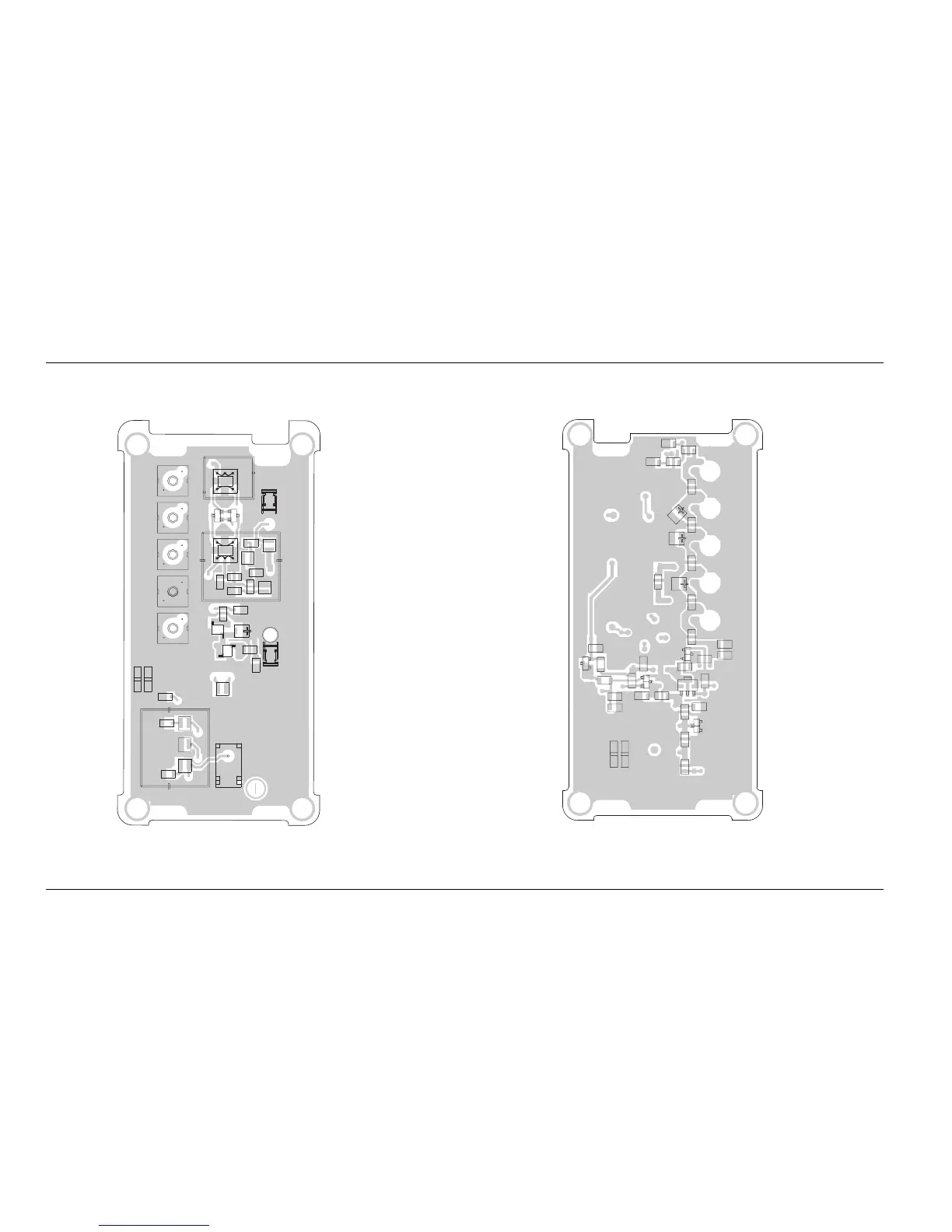

HRD6001E/6002E/6011E/6012E VHF Component Location Diagram
Side 1 Side 2
JU3177
JU3175
JU3178
JU3176
L3102
2
2
1
2
1
2
1
2
1
1
2
2
1
1
L3103
L3104
L3126
L3204
C3126
CR3127
CR3126
1
2
1
2
3
5
T3125
IF
OUT
4
T3126
5
3
4
21
R3126
R3127
R3125
R3128
C3125
C3153
C3154
C3151
L3203
C3150
L3150
L3151
C3152
LO
IN
L3125
L3101
L3100
R3200
L3202
C3210
L3200
L3201
C3209
1
2
3
RF IN
C3103
R3101
R3100
C3109
C3207
R3202
C3206
R3205
C3211
C3108
C3100
R3209
R3208
C3205
R3201
C3107
C3106
C3105
R3130
C3104
C3101
R3206
C3202
C3201
C3200
JU3181
JU3182
JU3180
JU3170
CR3200
Q3201
R3204
CR3201
C3208
R3203
Q3200
C3110
C3102
Q3202
C3203
