Chapter 5 Laser Unit
5.1 Overview of the Laser Units
1-100
5.1.1 AOM Controller (Optional)
Adjusts the brightness control from the software when used in combination with the C-LU3EX three-laser unit
EX.

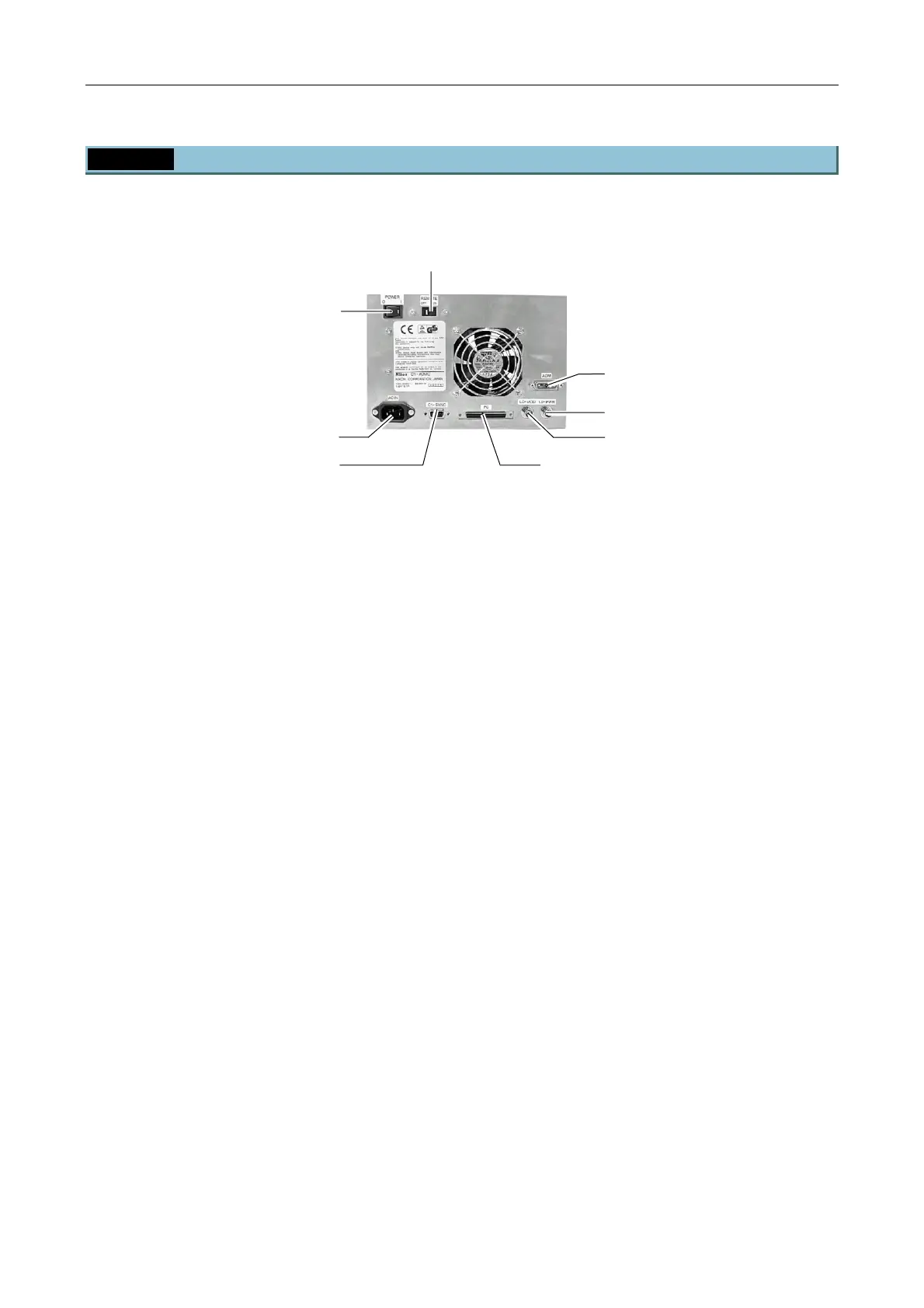

Figure 5.1-4 AOM Controller
(1) Power switch
This is the main power switch of the AOM controller.
When this switch is pressed, power is supplied to the primary source only. Power supply to the
secondary source is subject to the state of the remote switch (2).
(2) Remote switch
This is the remote power switch of the AOM controller.
When this switch is pressed, power is supplied to the secondary source in conjunction with the power
supply to the PC. The power switch (1) must always be ON.
When this switch is off, power is supplied to the secondary source when the power switch (1) is pressed,
independently of the power supply to the PC.
(3) AC inlet
(4) C1-SYNC connector (Do not use in this system.)
This connector is used to input sync signal.
(5) PC connector
This connector is used to control the AOM.
(6) LD PWR2 connector (for new AOM) or LD-MOD connector (for conventional AOM) (not used)
(7) LD PWR connector (for new AOM) or LD-PWR connector (for conventional AOM)
This connector is used for the brightness control of LD.
(8) AOM connector
This connector is used for driving the AOM.
(1)
(2)
(3)
(7)
(5)
(8)
(6)
(4)
