Chapter 1 System Configurations and Part Names
1.4 Name of Each Part
1-64
1.4.7 Related Product
TI-BPU back port unit
Adding a camera port by attaching the TI-BPU back port unit to the microscope base allows for a concurrent
image capture with two cameras.
Attach a C mount camera via a separate C mount adapter to the back port unit and perform focus adjustment
and centering.
Important
The dichroic mirror inside the filter cube is used to split the optical path, therefore, the dichroic mirror with
a poor flatness may cause lens effect due to a curved surface reflection, resulting in poor image
formation.
Use a dichroic mirror with higher flatness to be used for optical path split.

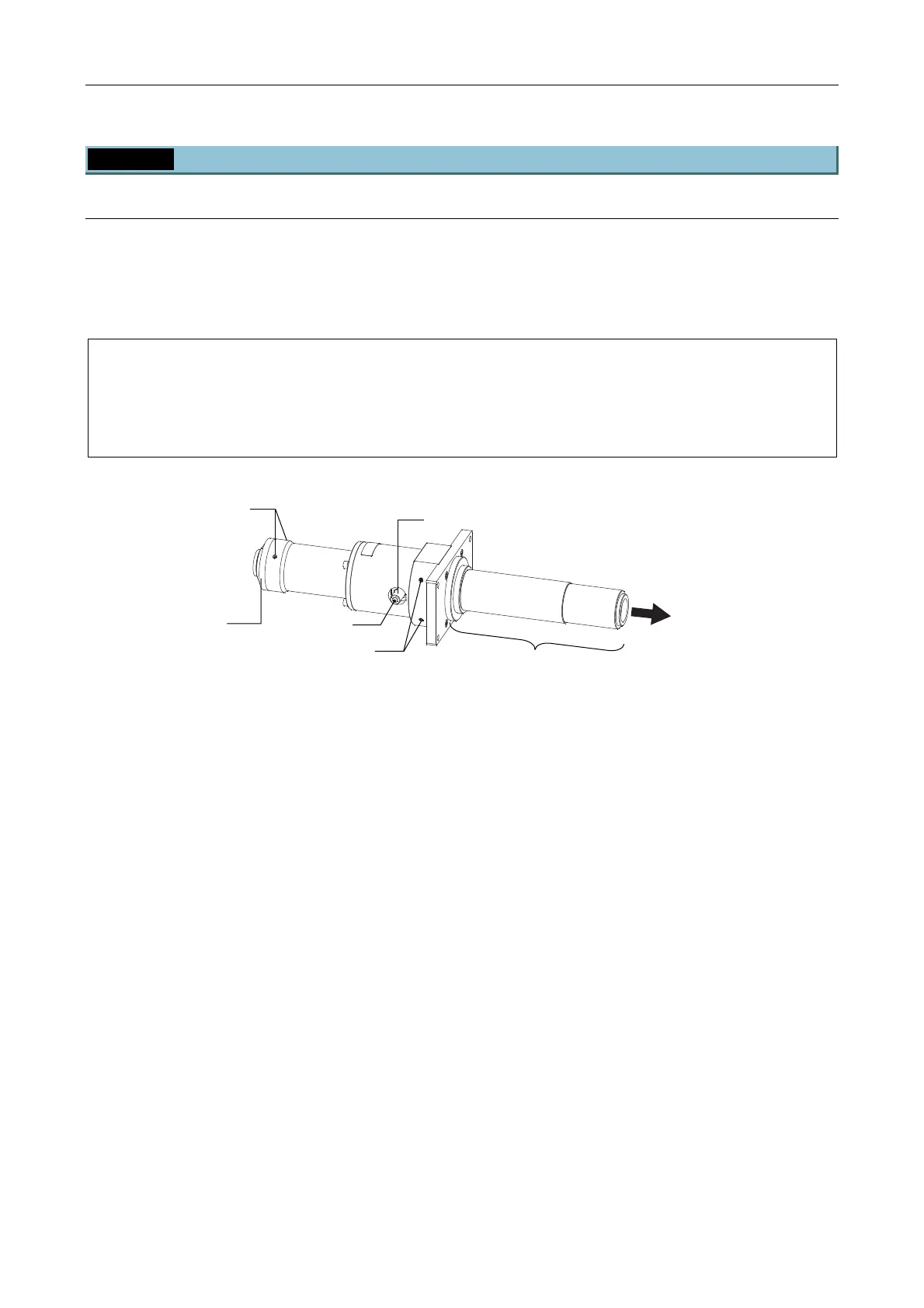

Figure 1.4-51
C mount adapter
clamp screws (two)
(separately available)
C mount adapter
Focus knob
Clamp scre
Centering screws (two)
Portion to be inserted into
the microscope
To eyepiece
