Chapter 5 Laser Unit
5.3 C-LU3EX Three-laser Unit EX
1-123

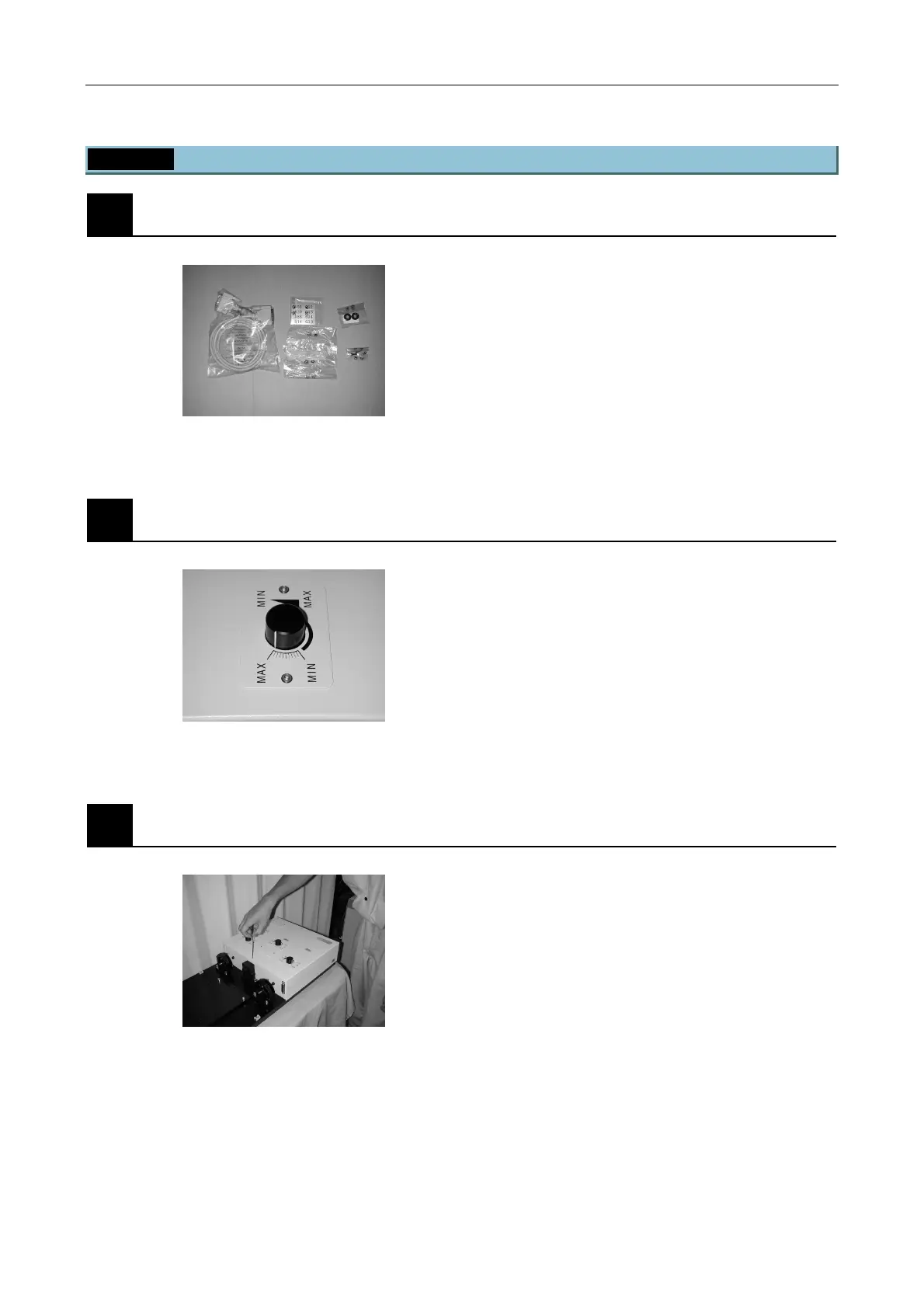

5.3.1 Preparation
1
Checking accessories
Figure 5.3-1
Confirm that the following accessories have been
provided:
• Cable (×2)
• Hexagonal head screws (×7)
• Harness bands (×6)
• Harness band retainers (×4)
• Label (×1)
• Black rings of sponge (×2)
2
Knob position adjustment
Figure 5.3-2
Turn the light control knob (white line) to the MAX position
on the stepped scale.
3
Removing the sheet metal cover
Figure 5.3-3
Remove the six screws and the sheet metal cover.
To Next Page
