Nikon Eclipse TI-TIRF-E User Manual

Chapter 5 Laser Unit
5.3 C-LU3EX Three-laser Unit EX
1-128

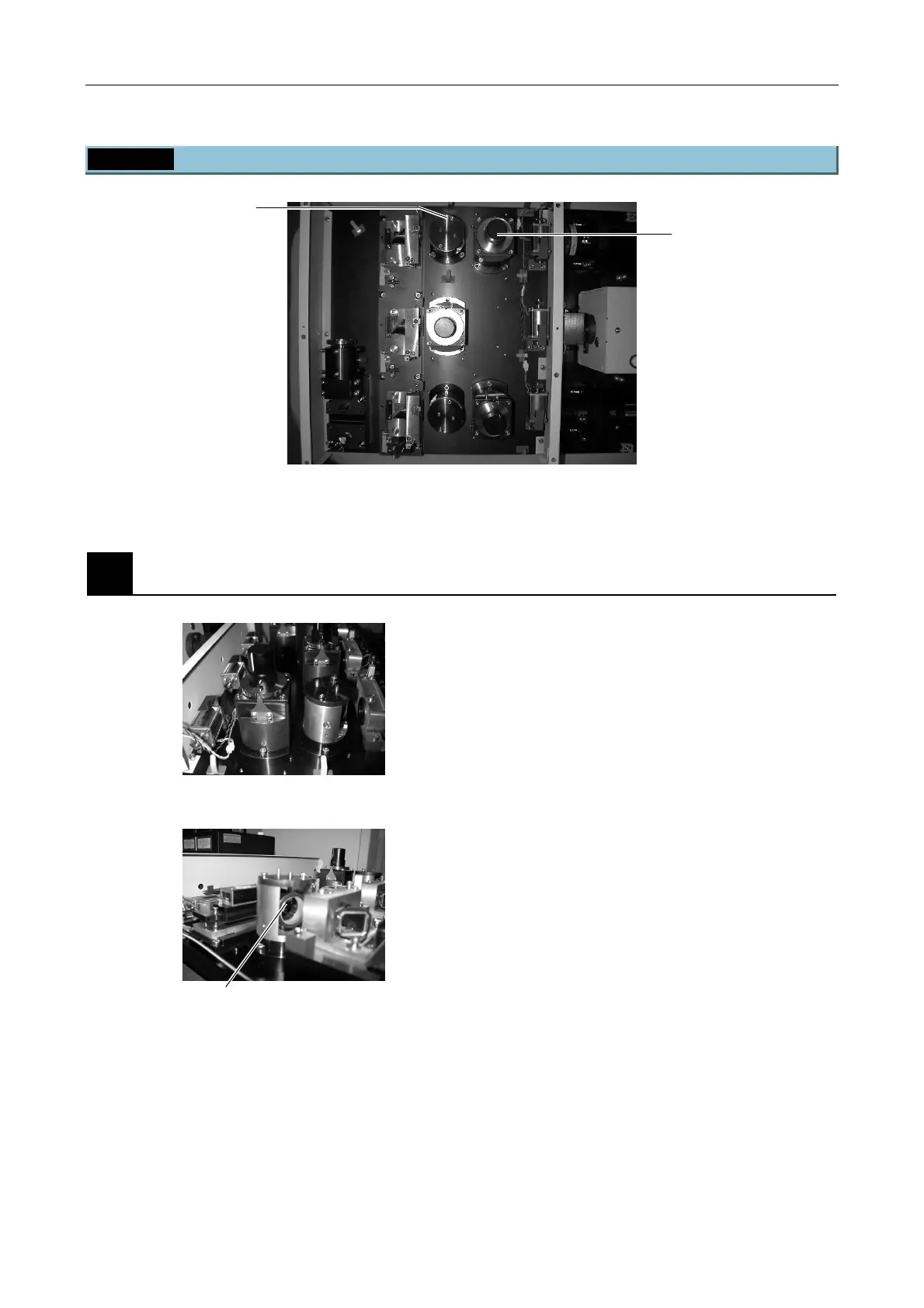

5.3.3 Laser Rough Adjustment 1
Overall view from above DSCN150
Figure 5.3-15
1
Checking the initial beam shift unit position
Figure 5.3-16
Figure 5.3-17
Check that the horizontal setscrew tool openings on the
sides of the two beam shift units are perpendicular to the
light beam, and that the cylindrical glass section is not
significantly tilted.
(They are set to these positions before shipping.)
Light control unit
Beam shift unit
Glass section
