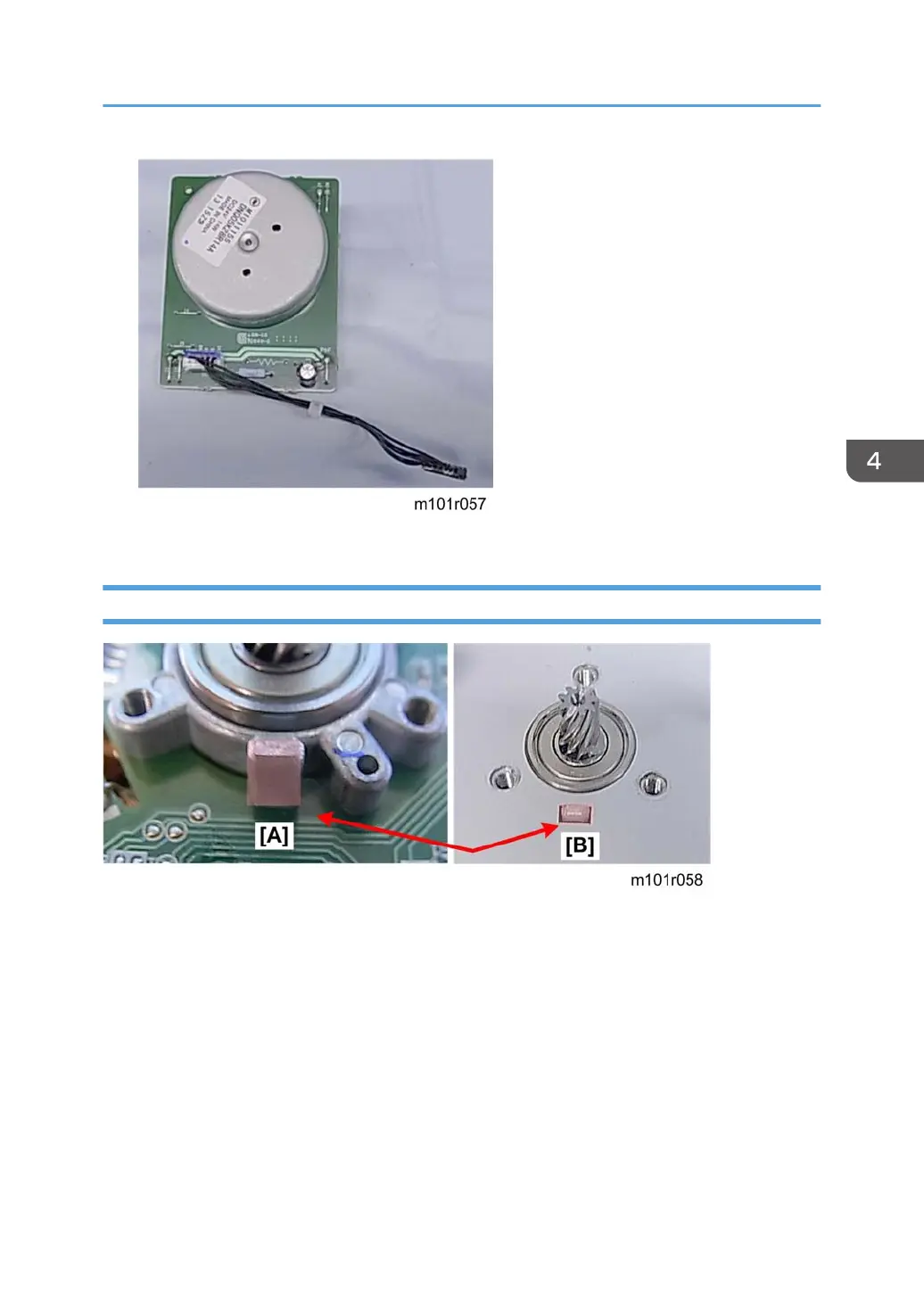

15. Turn the motor over.
Reinstalling the Main Motor
1. Match boss [A] with the hole [B] on the motor plate. This aligns the holes correctly for re-attachment
of the motor to the motor mount plate.
Main Motor
103
