Boards

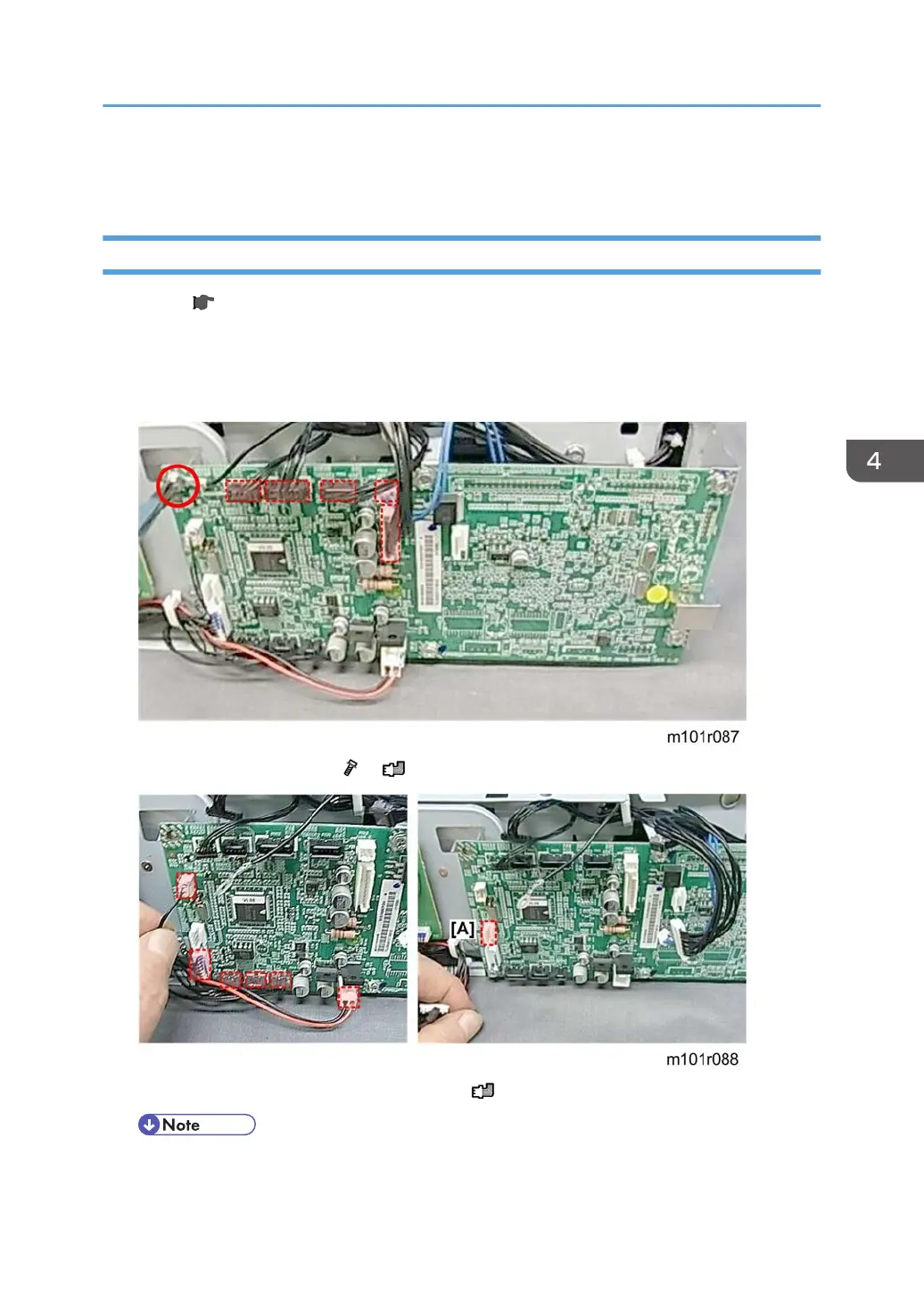

M101 Main Board
Preparation ( p.43 "M101 Covers")
• Front cover
•
Top cover
• Right cover
1. Disconnect board at the top ( x1, x5).
2. Disconnect board on the left and bottom edges ( x6).
• The socket at [A] is empty. Nothing is disconnected or reconnected here.
Boards
121
