M103 Covers, Flatbed Unit, ADF

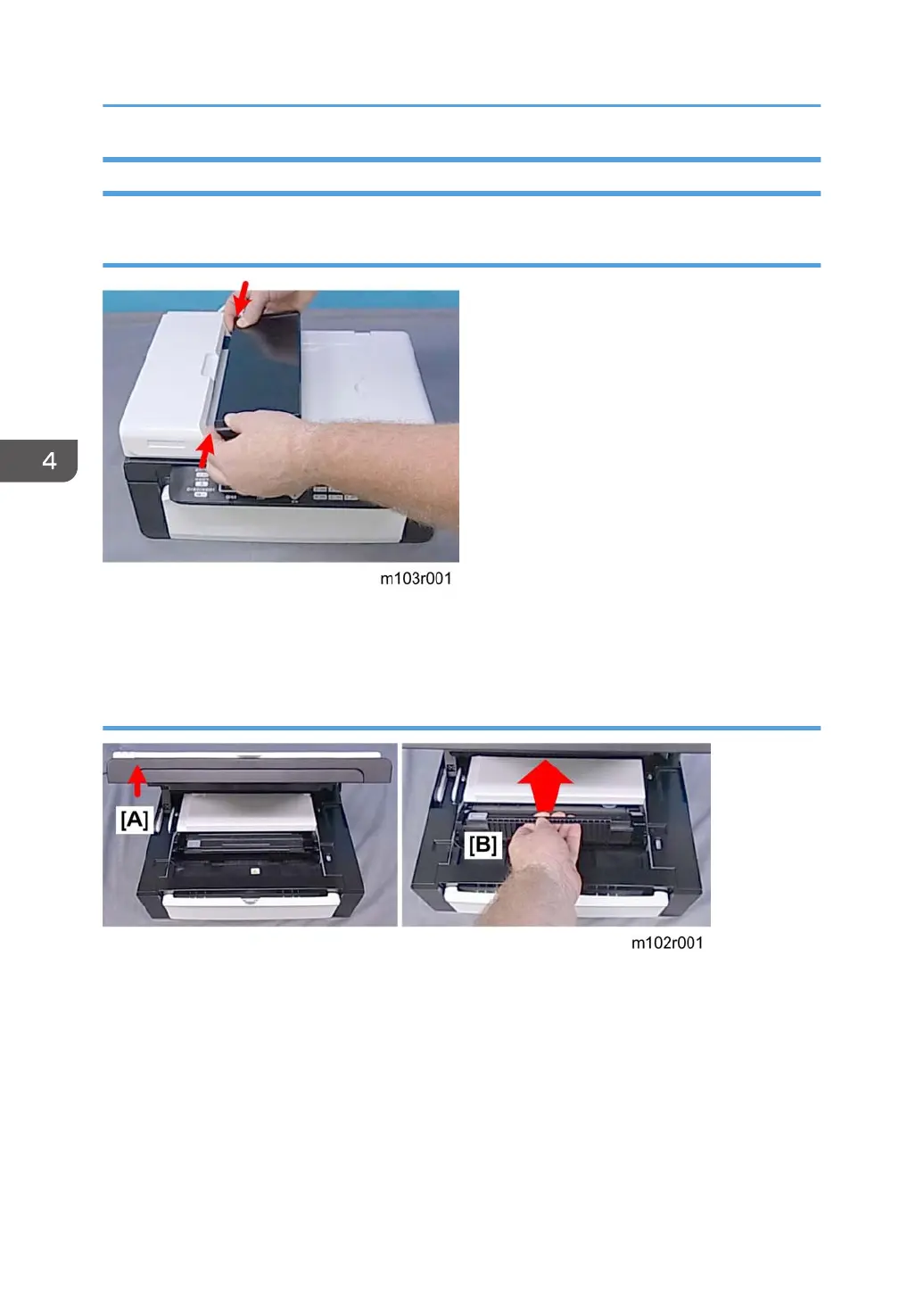

Original Feed Tray
1.
Press in and release the pegs on each end of the tray.
2.
Remove the tray.
AIO
1.
Raise the top of the machine [A] (the ADF and flatbed unit together).
2.
Grip the AIO [B] by its handle and pull it out of the machine.
4. Replacement and Adjustments
