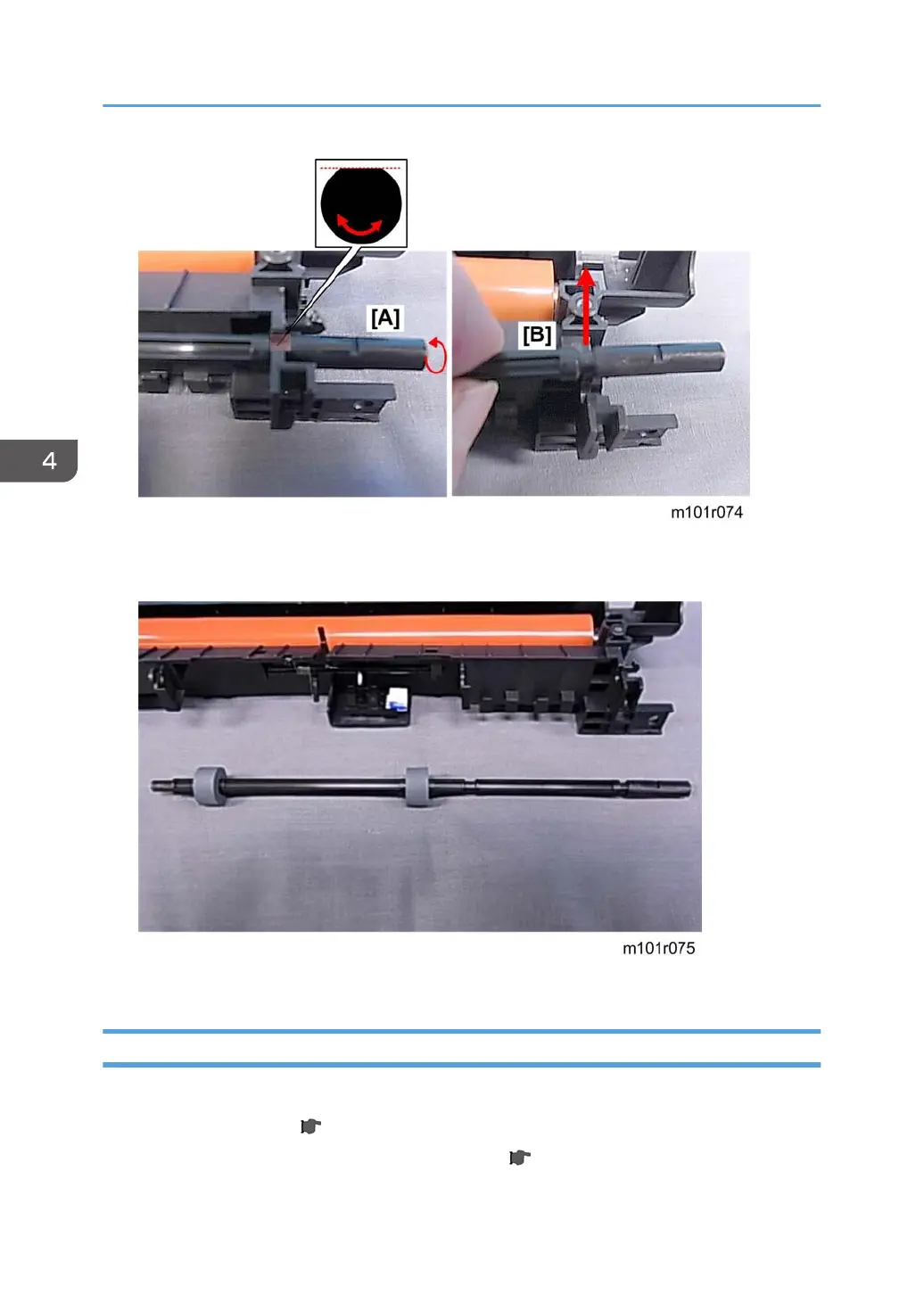

3. Turn the exit roller [A] until you see the flat side of the roller shaft facing up.
4. Pull the roller [B] straight up to remove it from its cradle.
5. Remove the rollers and roller shaft. (The rollers are permanently attached to the shaft.)
Pressure Roller
Preparation
• Remove the fusing unit ( p.71)
• Separate the top and bottom halves of the fusing unit ( p.111 "Separating Fusing Unit")
4. Replacement and Adjustments
114
