M103 Fax Board
The fax board is behind the main board.
Preparation
• Remove the M103 Main Board ( p.127 "M103 Main Board")

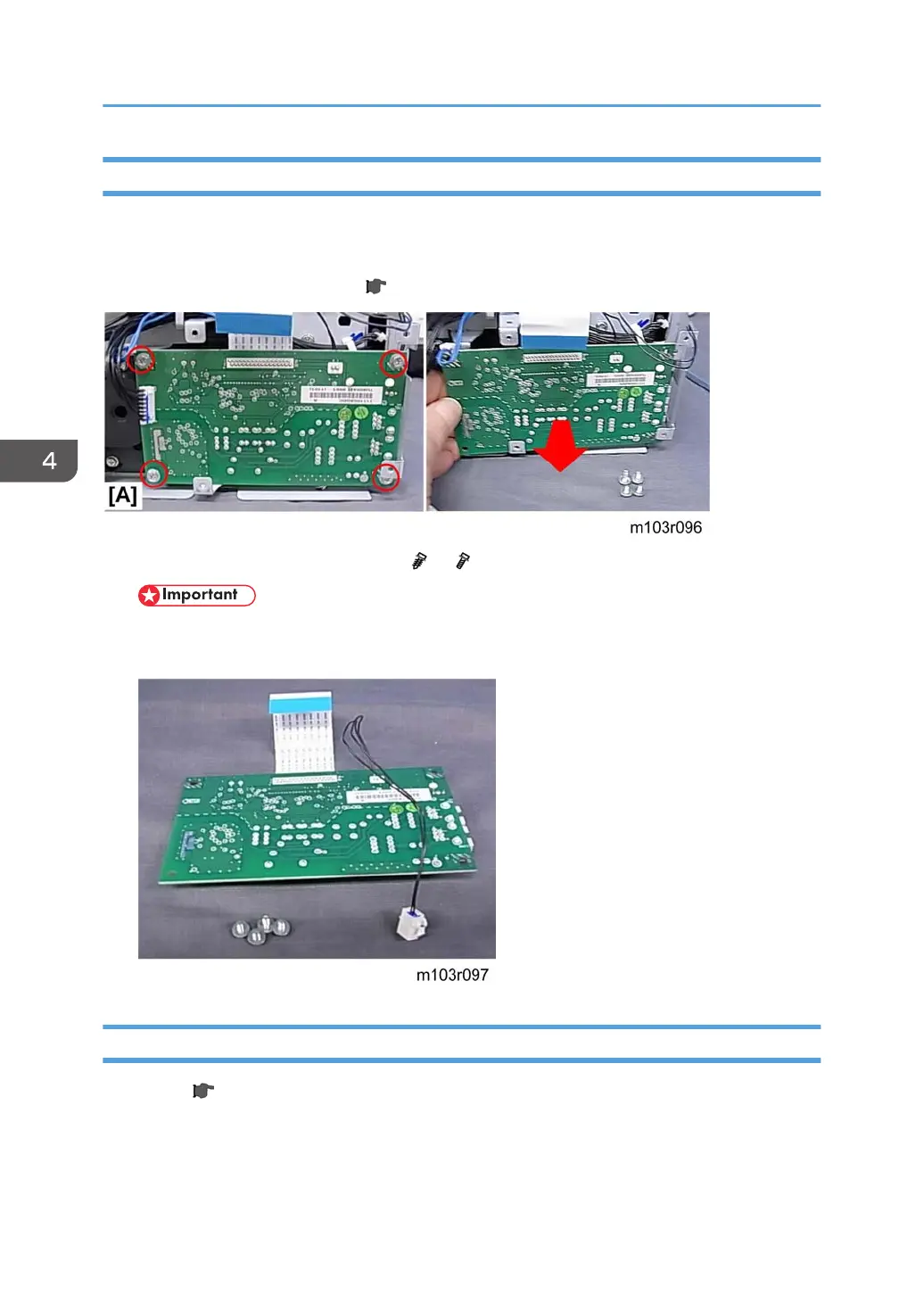

1. Disconnect and remove the fax board ( x1, x3).
• The screw at [A] is a wide-thread tapping screw (for plastic). Make sure that you re-fasten it at
this position.
M103 Fax Speaker
Preparation ( p.60 "M103 Covers, Flatbed Unit, ADF")
• Front cover
•
Left cover
