• The pin is split into four sections but only two sides protrude to lock and release the pin.

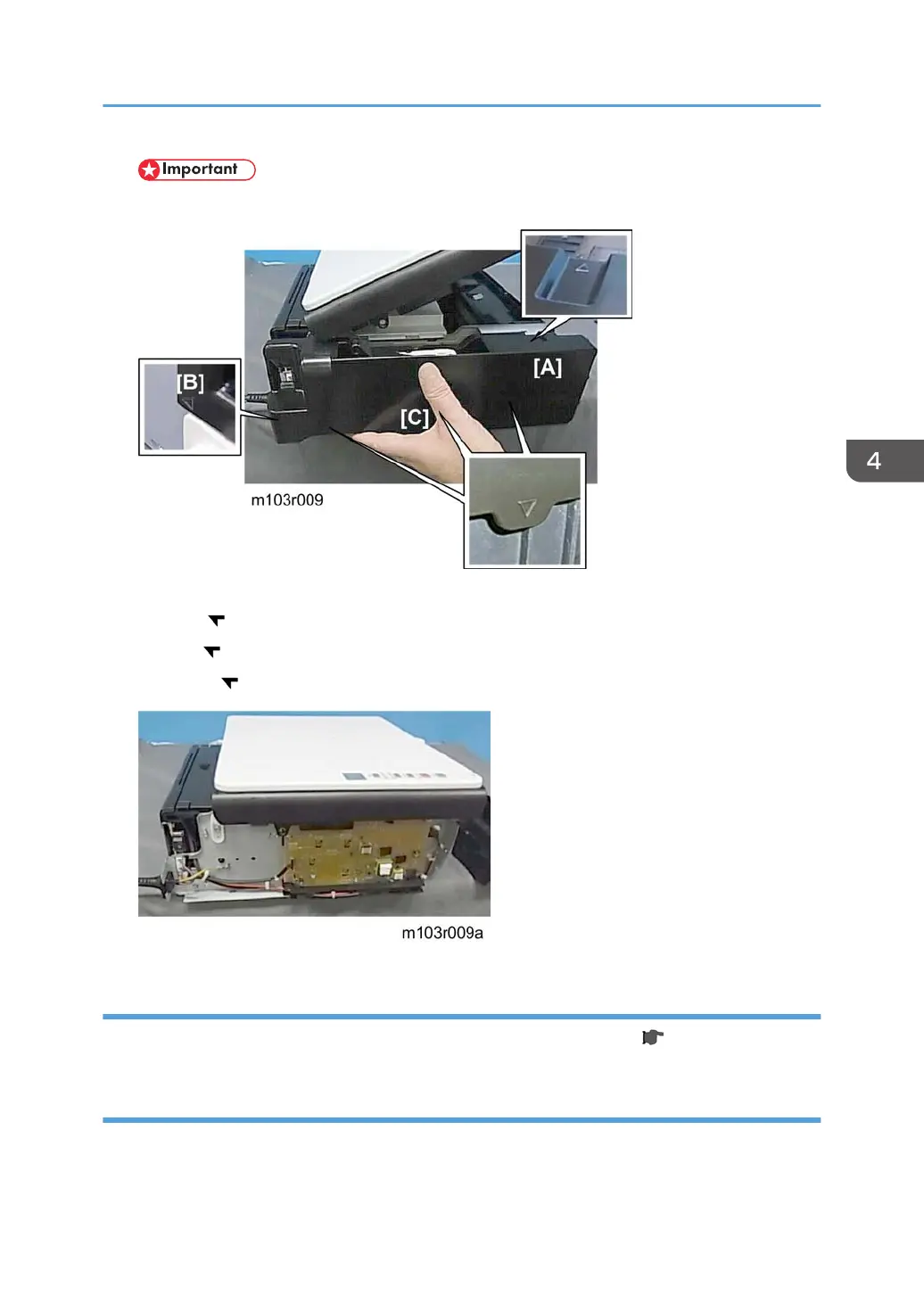

4. At the triangle markers, release the tabs:
[A] Front ( x1)
[B] Rear ( x1)
[C] Bottom ( x3)
Rear Cover
The rear cover does not require removal unless the PSU requires replacement ( p.134 "PSU")
Platen Cover, Flatbed Scanner Unit
Preparation
Remove:
Basic Procedures
55
