Solenoid

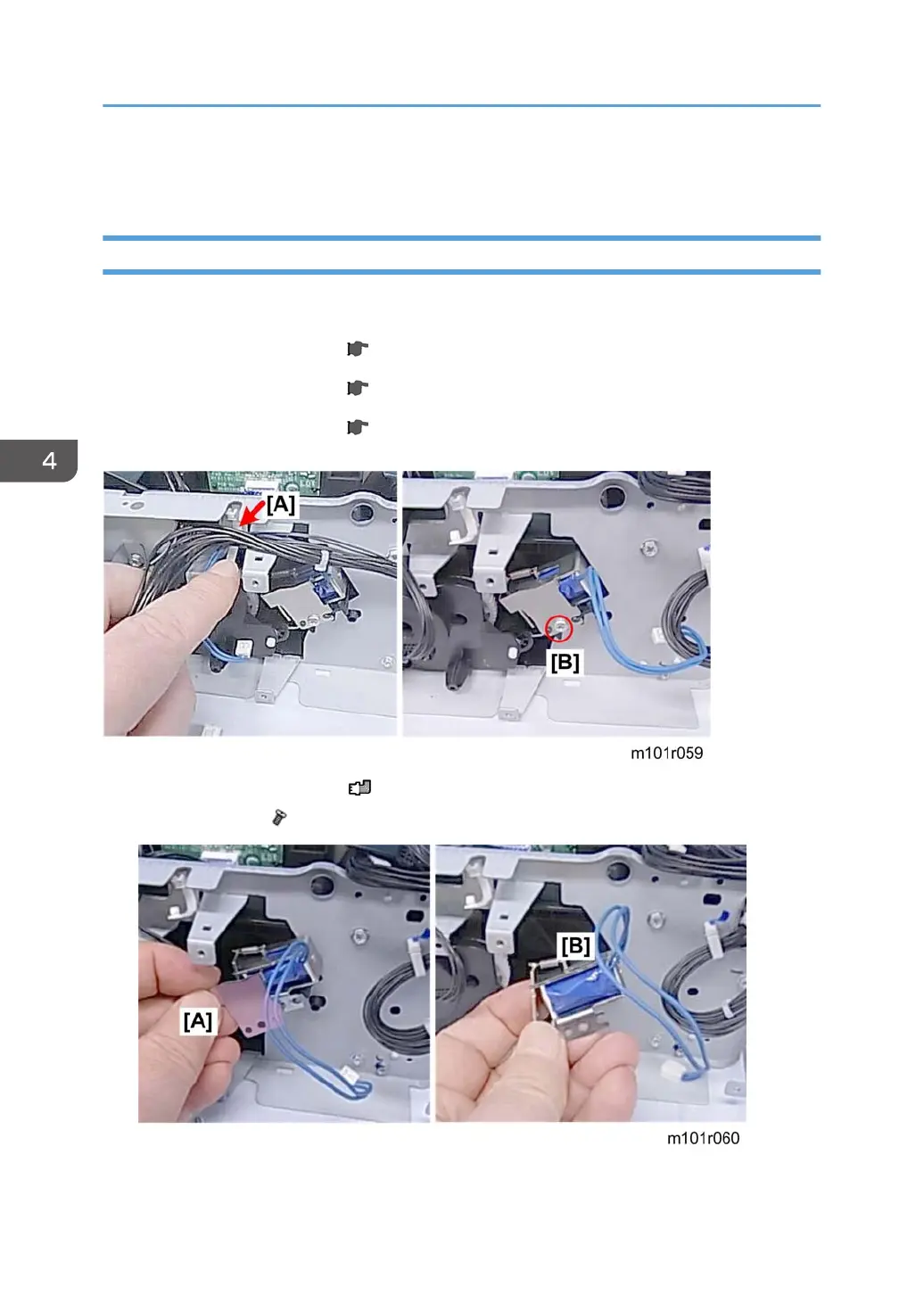

Pickup Roller Solenoid
Preparation
•
Remove right cover
(
p.43 "M101 Covers")
(
p.50 "M102 Covers, Platen Cover, Flatbed Unit")
(
p.60 "M103 Covers, Flatbed Unit, ADF")
1.
Free the solenoid harness [A] (
x1).
2.
Remove screw [B] (
x1).
3.
Remove plate [A] and then solenoid [B].
4. Replacement and Adjustments
104
105
107
