Ricoh BRG-P1 User Manual

• Right Cover ( page 53).
•
Spread some of paper (not cloth) several sheets thick where you can set the unit after it has been
removed.
• Unlock the carriage (
page 62).
1.
Wrap the tip of a screwdriver or similar tool with a piece of finely woven cloth which is slightly
damp.
• The damp cloth prevents scratches on the suction cup. A scratched suction cup could cause
poor print quality.
•
Never use tissue or cotton, or any other such of material to wrap the tip of the screwdriver.
Such material will contaminate the maintenance unit with loose fiber.

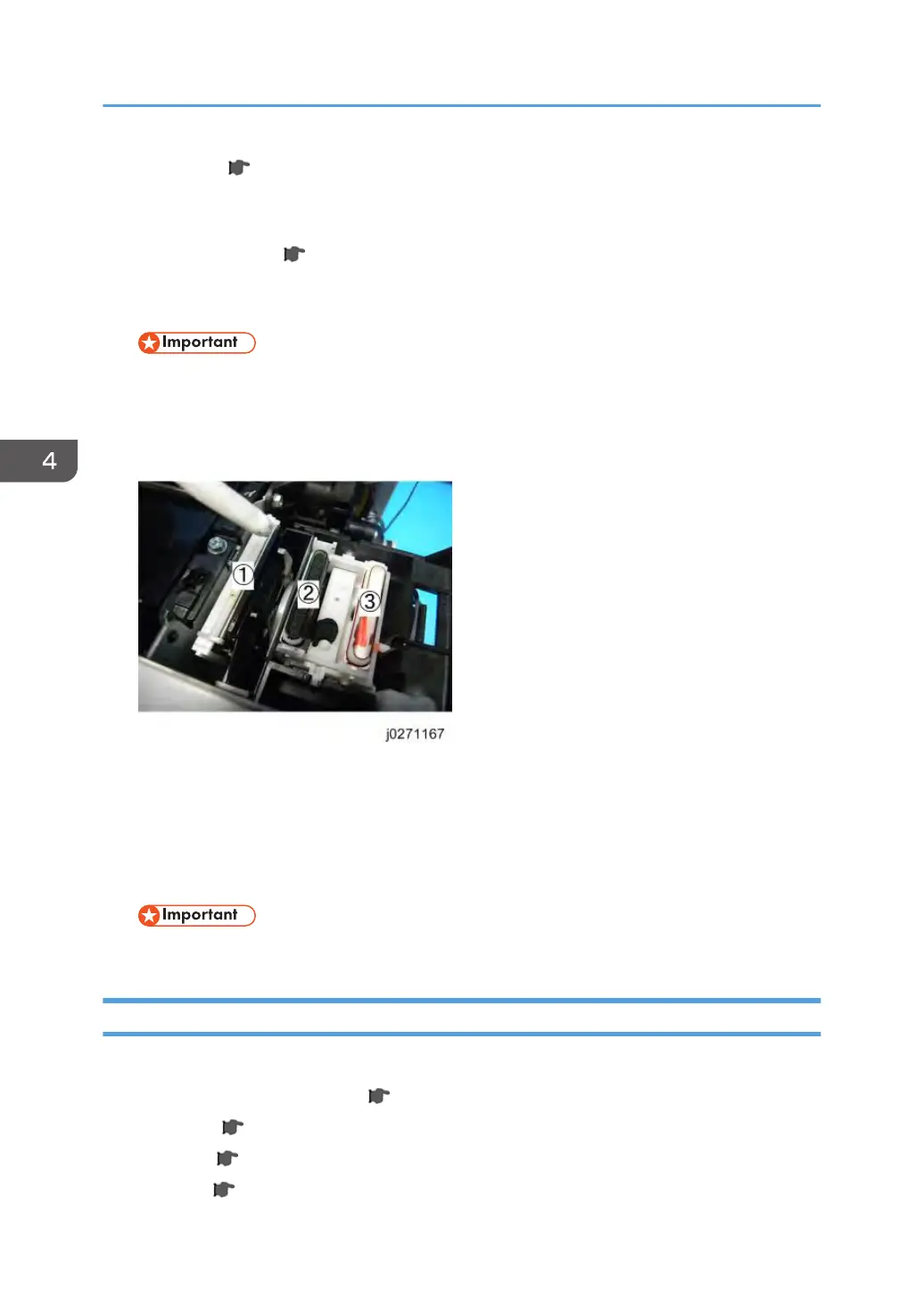

2. Use the wrapped tip of the screwdriver to clean inside and around the blade (1) air vent (2) and
suction cap (3).
Clean the vent and cap carefully to avoid:
•
Damaging the movable feeler inside the right air vent.
• Damaging the fragile lip of the suction cap.
• Never insert the tip of the screwdriver into the right air vent or suction cap.
Connecting Rollers Cleaning
Preparation:
•
Duplex unit (J028/J029/J035) (
page 48).
•
Rear cover (
page 51 "Rear Cover, Top Cover").
•
Top cover (
page 51 "Rear Cover, Top Cover").
•
Left cover (
page 55).
4. Replacement and Adjustment
148
