Transport Belt
Transport Belt, Charge Roller, Pressure Plate, Pressure Rollers
• The carriage unit replacement parts of J035 machine are not prepared. Therefore, pay extra
attention to the removing the carriage of J035 machine to avoid damaging it.
Preparation
•
Duplex unit (J028/J029/J035) (
page 48).
•
Rear cover (
page 51 "Rear Cover, Top Cover").
•
Top cover (
page 51 "Rear Cover, Top Cover").
•
Canopy cover (
page 56).
•
Right cover (
page 53).
•
Left cover (
page 55).
•
Front cover (
page 56 "Front Cover, Operation Panel Board").
•
2nd registration sensor (
page 106).
•
Bypass drawer connector (
page 115).
•
Vertical encoder wheel (
page 69).
•
Carriage unit (
page 130).
•
Ink tube guide (
page 120).

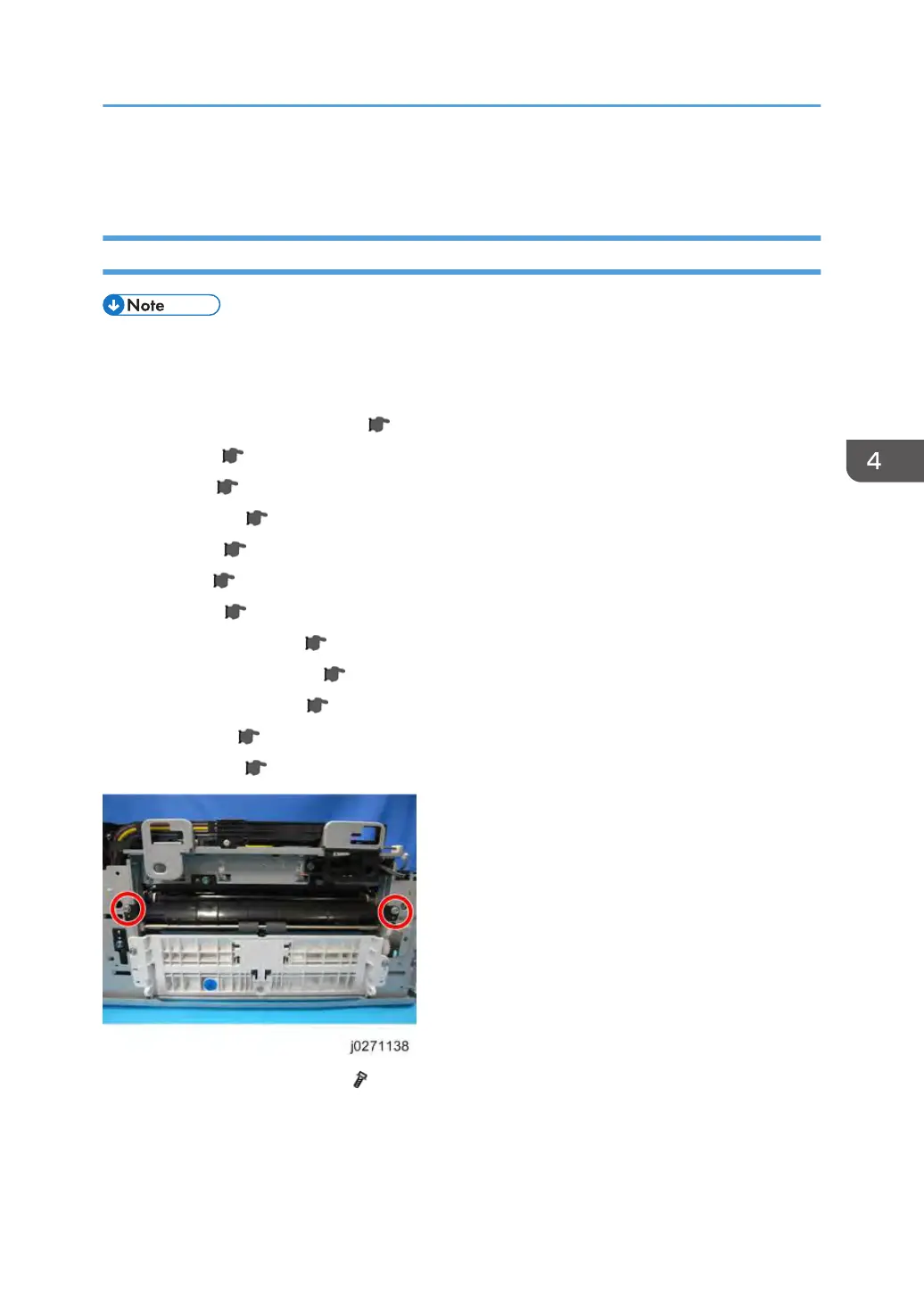

1. Open the charge roller cover ( x 2).
