Reinstallation
• If you have removed the strip or if you are replacing the strip with a new one:
•

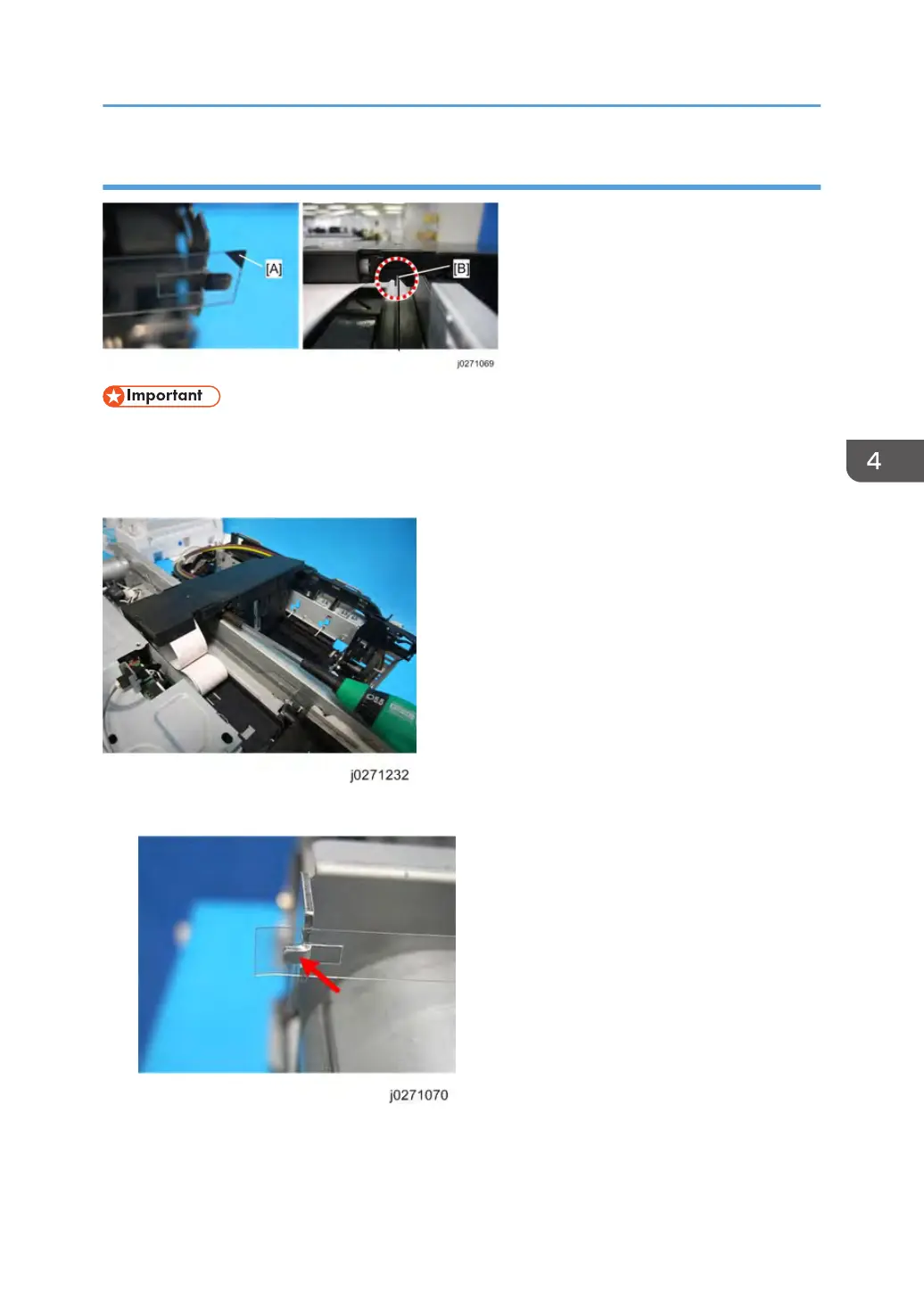

Hold the encoder strip with the black triangle [A] facing up.
• Pass the strip through the gap [B] of the sensor inside the carriage.
1. Lifting the carriage, mount the new horizontal encoder strip.
2. First, hook the strip's left end to the tab.
