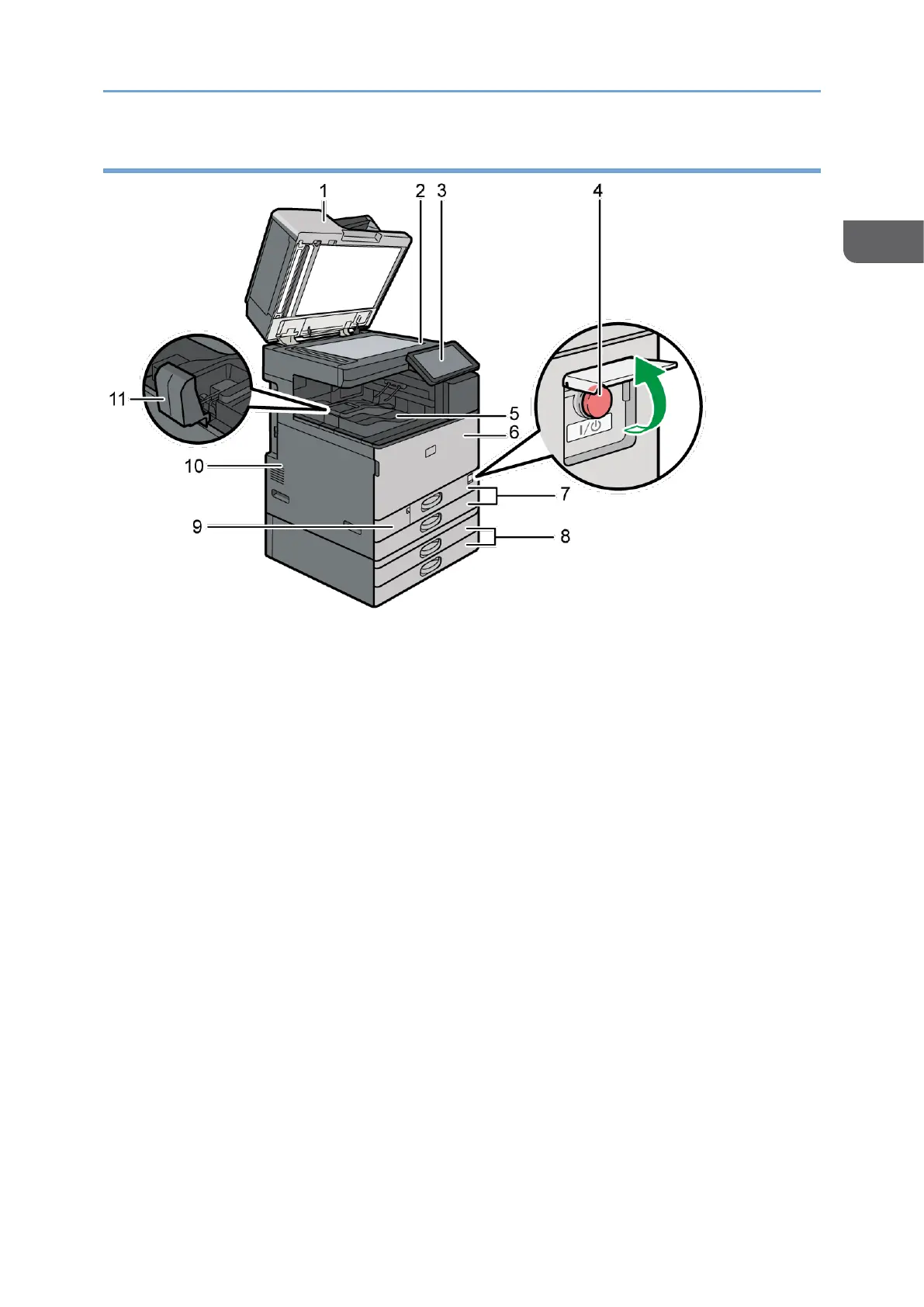

Front and Left View
1. Exposure glass cover/Auto Document Feeder (ADF)
Lower the cover over originals placed on the exposure glass.
If you load a stack of originals in the ADF, the ADF will automatically feed the
originals one by one.
The ARDF is the ADF that can scan both sides of an original one side at a time.
The one-pass duplex scanning ADF is the ADF that can scan both sides of an original
simultaneously.
page70”Placing an Original in the Auto Document Feeder (ADF) ”
2. Exposure glass
Place originals face down here.
page69”Placing an Original on the Exposure Glass”
3. Control panel
page27”Names and Functions of the Control Panel”
4. Main power switch
To turn the power on and off, open the cover of the main power switch and press the
main power switch.
page19”Turning On and Off the Power”
5. Internal tray 1
Copied/printed paper and fax messages are delivered here. And the paper is output
under the paper holder attached inside the internal tray.
