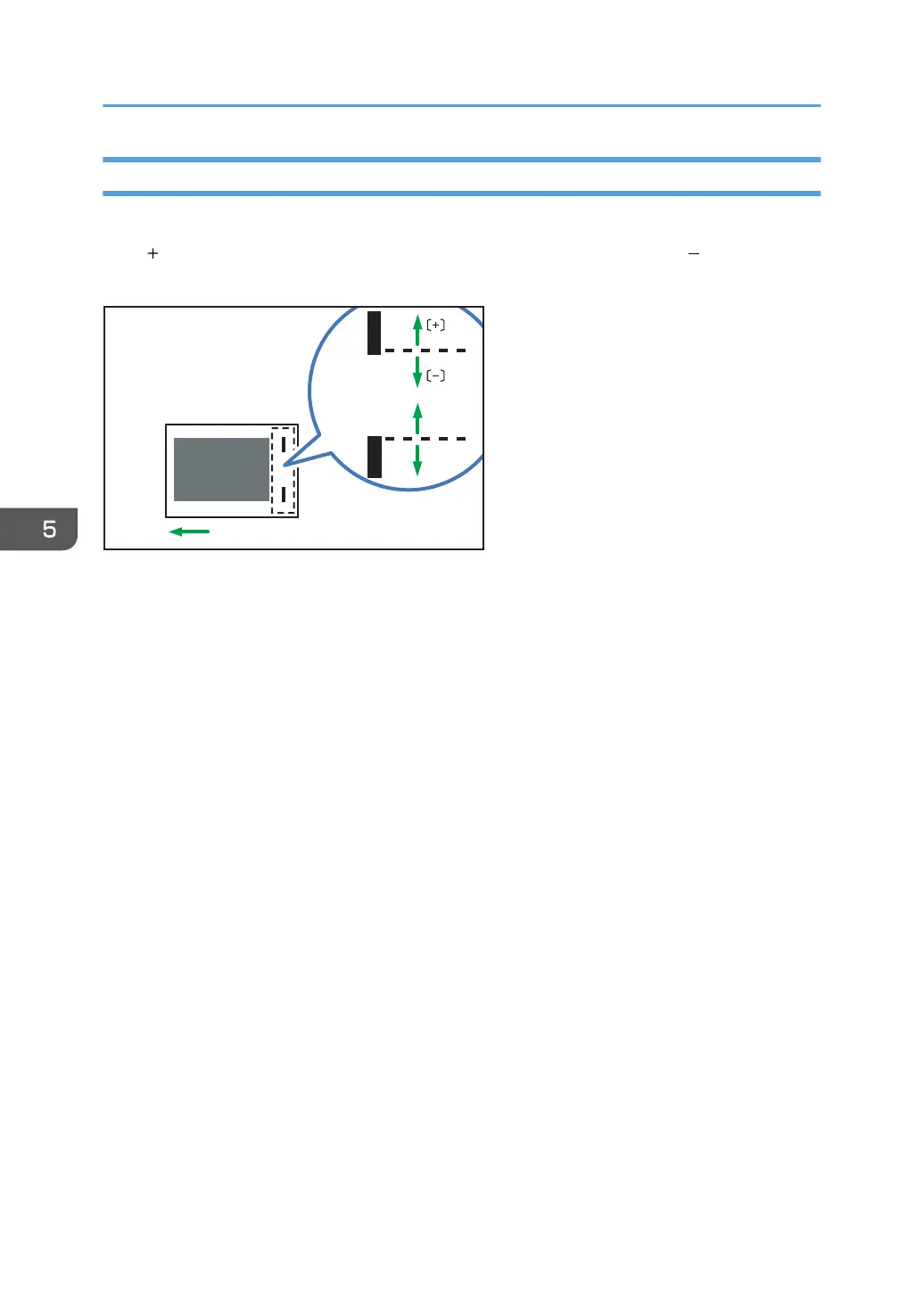

0604: Staple Position: Across Feed 2

Adjust the vertical position of the staples (dual) when using Finisher or Booklet Finisher.

Press [ ] to move the two stapling positions away from the center and each other or [ ] to move them

toward each other.

Leading

edge

Trailing

edge

Paper feed direction

DFZ002

5. Adjustment Settings for Operators
