• When removing paper from the tray, be careful not to dislodge the jump plates. The jump plate
may come off the machine if your finger gets caught between the extension output banner sheet
tray and the plate. If the jump plate comes off the machine, attach it back to its original position.
When Using the High Capacity Stacker
Stacker control panel
The high capacity stacker has a control panel that you can use to lower the stacker tray and
confirm the status of the high capacity stacker.

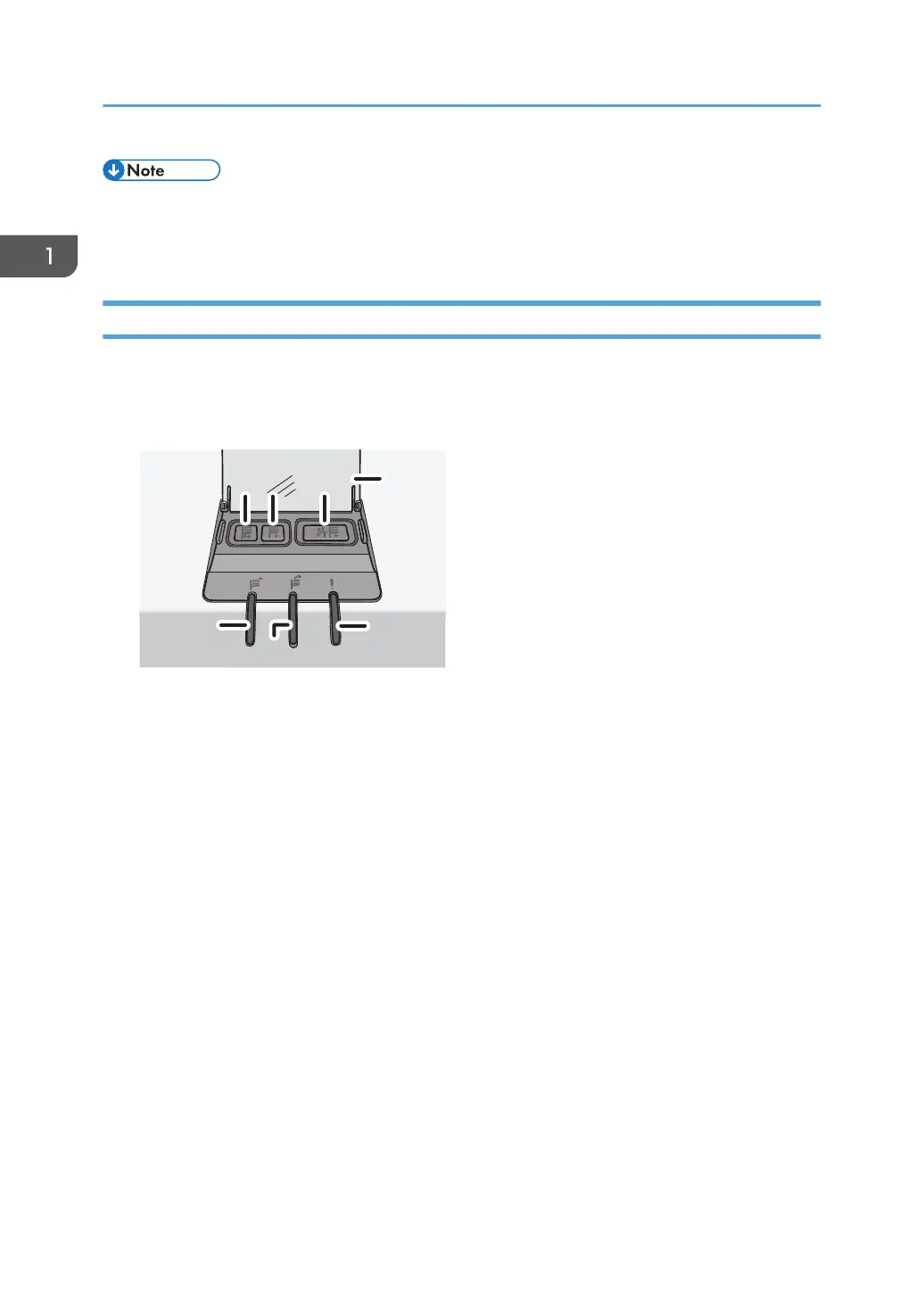

D0CPIC1788
1
1
2
2
3
3
4
4
7
7
5
5
6
6
1. Tray Moving Indicator
This flashes blue when the stacker tray is moving up or down. When the stacker tray has moved all the
way up and is in the standby state, the indicator turns off. When the stacker tray has moved all the way
down, the indicator lights up blue.
2. Lower Tray Button
Press this button to lower the tray. The tray cannot move if the stacker front cover is open.
3. Paper Jam Button
This is lit red when a paper jam occurs. Pressing this button lowers the stacker tray into the paper
removal position.
4. Cover of the Stacker Control Panel
5. Stacker Collecting Indicator
This flashes blue when the stacker tray is collecting output paper.
6. Stacker Full Indicator
This is lit red when the stacker tray is full.
7. Error Indicator
This is lit to indicate one or more of the following errors:
• The handcart is not properly set.
• The stacker front cover is open.
