Ricoh Pro C9500 User Manual

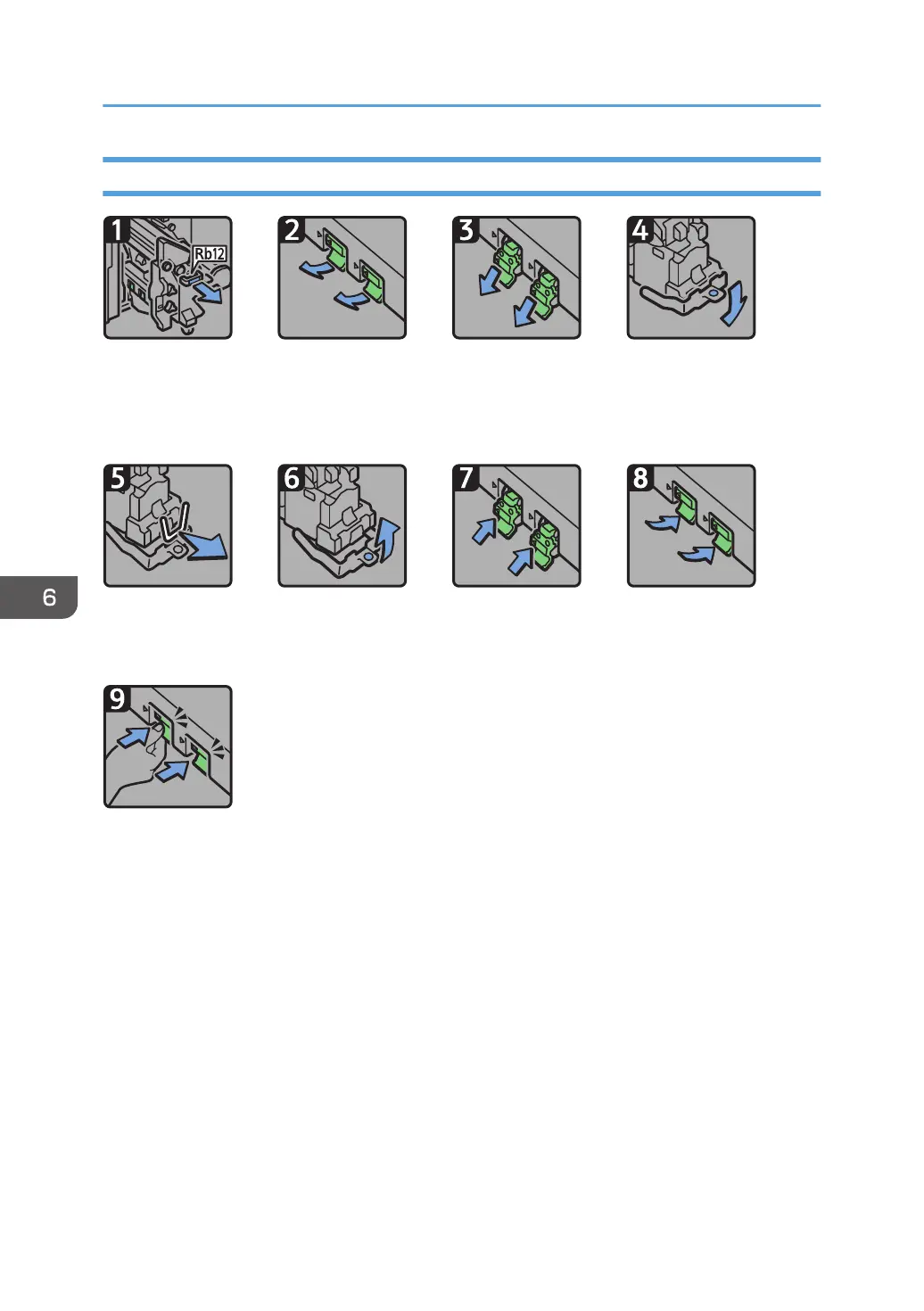

Booklet Finisher (Saddle Stitch)
• Pull out the booklet
staple unit.
• Pull out the cartridge
levers.
• Pull out the cartridge
gently.
• Push the knob at
the end of the face
plate downward to
open it.
• Remove jammed
staples.
• Push the knob at the
end of the face plate
upward to close it.
• Push the cartridge
into the unit in the
direction indicated by
the arrow in the
figure.
• Push the cartridge in until you
hear a clicking sound.
• Return the staple unit to its
original position.
• Close the finisher front cover.
• Push the cartridge
into the unit in the
direction indicated by
the arrow in the
figure.
M0EBIM2398
6. Troubleshooting
252
