Trigger Level

Click or tap the Level input field to set the trigger level with the pop-up numeric

keypad. You can also use the front-panel trigger level knob or the corresponding

multipurpose knob to set the trigger level. For details, refer to descriptions in

Trigger

Level

. The current trigger level is displayed in the trigger information label at the top

of the screen.

8.7.17 LIN Trigger

This series can trigger on the sync field of LIN signal, and can also trigger on the

specified identifier, data, or frame.

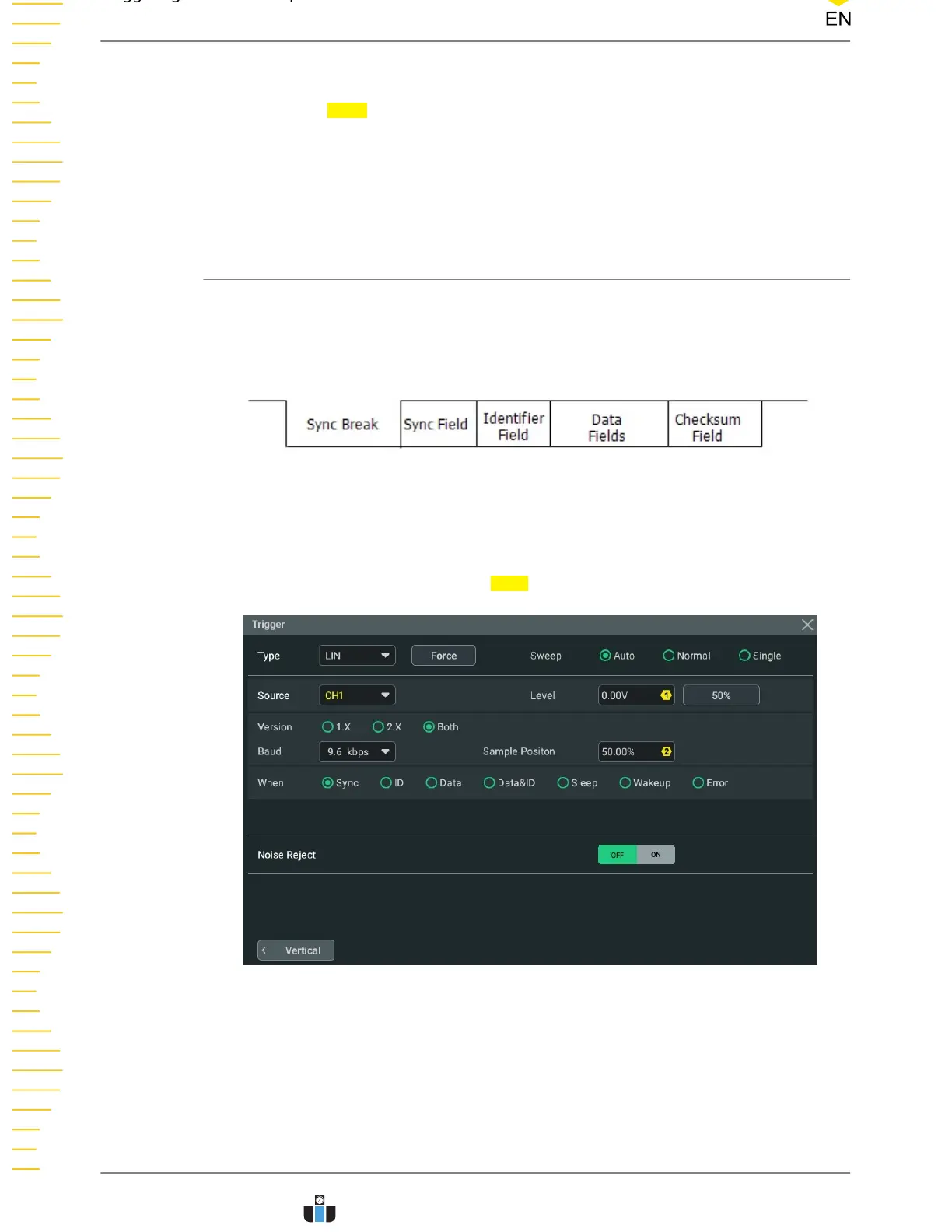

The data frame format of the LIN bus is as shown in the figure below.

Figure 8.35 Data Frame Format of the LIN Bus

Trigger Type

Click or tap the drop-down button of

Type to select "LIN".

Figure 8.36 LIN Trigger Setting Menu

After a trigger type is selected, the current trigger setting information (including the

trigger type, source, and level) is displayed in the trigger information label at the top

of the screen, as shown in the figure below. The information will change based on the

trigger settings.

Triggering the Oscilloscope

DHO900 User Guide

108
