You can click or tap the "Counter" label in the "Result" bar and select Reset Stat.,

Setting, or Remove in the displayed window.

11.2.1 Measurement Settings

After the frequency counter is enabled, click or tap the "Counter" label in the "Result"

bar at the right section of the screen and a window is displayed. Click or tap Setting

in the window to enter the counter setting menu, as shown in the figure below.

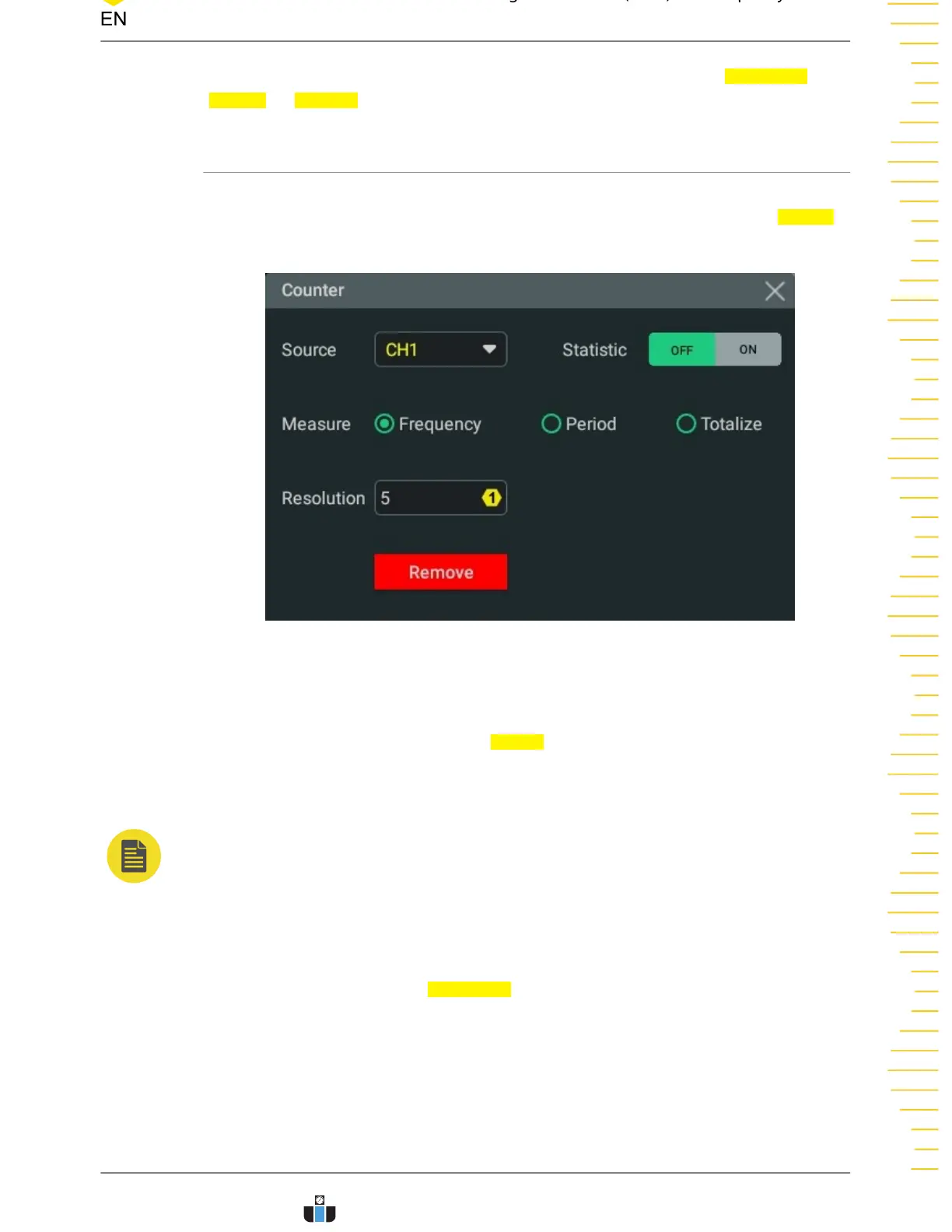

Figure 11.2 Frequency Counter Setting Menu

Select the Measurement Source

Click or tap the drop-down button of Source to select the desired source. Analog

channels (CH1-CH4) and digital Channels (D0-D15) can be selected as the source of

the frequency counter.

NOTE

Only when the digital channel probe is connected, can you select digital channels D0-D15 as

the source.

Set Resolution

For Period and Frequency measurements, you need to set the readout resolution.

Click or tap the input field of Resolution to set the resolution by using the pop-up

numeric keypad. You can also use the corresponding multipurpose knob to set the

value. The range of resolution is from 3 bits to 6 bits. By default, it is 4 bits.

The greater the resolution, the longer the gate time. In this way, the measurement

time will be longer.

Digital Voltmeter (DVM) and Frequency Counter
