Play Mode

Back to Start

Frame

Previous Frame

Play Button

Next Frame

Play Sequence

Start Frame

End Frame

Time Interval

Back to End

Frame

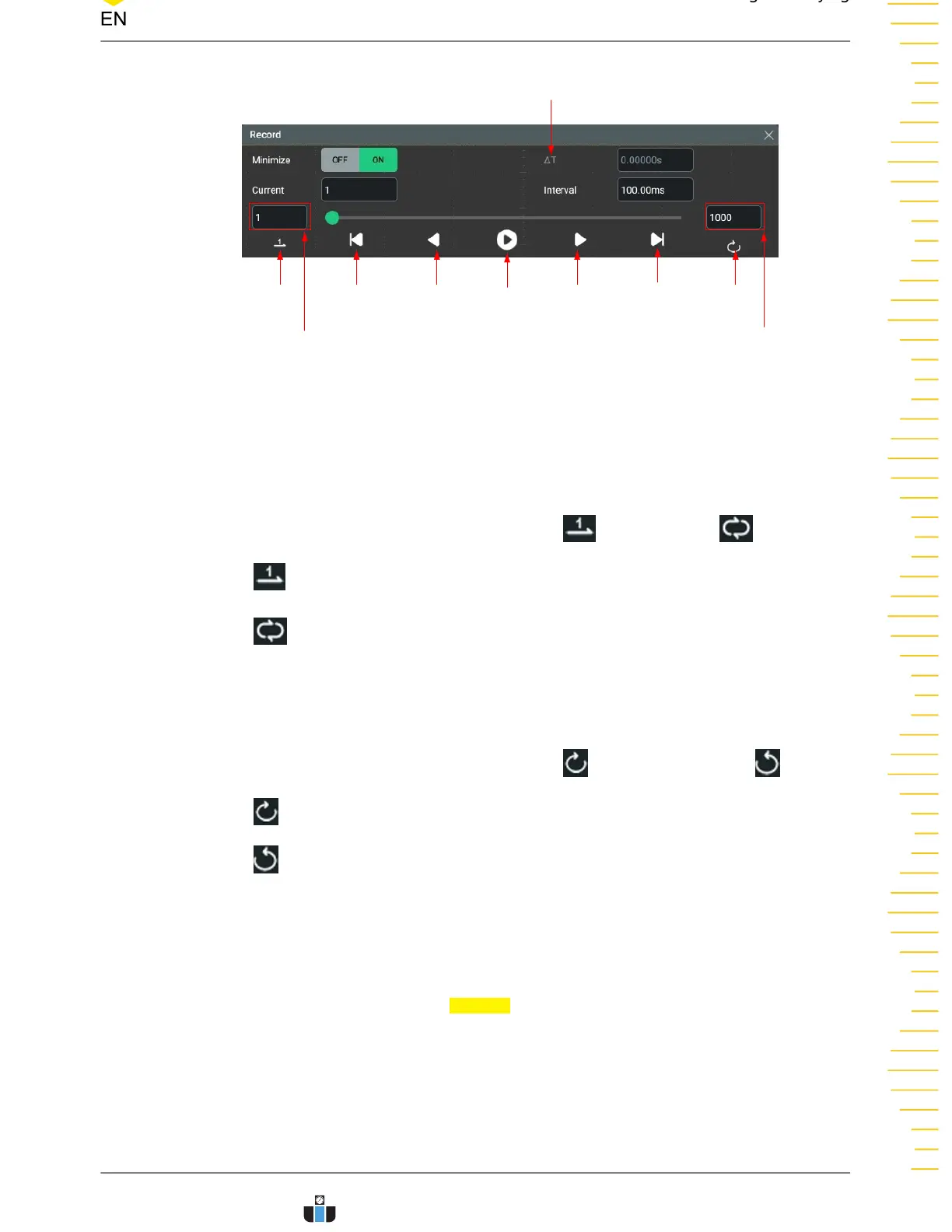

Figure 20.2 Minimized "Play" Menu

Before playing the waveforms, set the following parameters.

1. Play Mode

You can play the waveforms in single mode ( ) or cycle mode ( ).

- : plays from the start frame to the end frame, and then stops automatically.

- : plays from the start frame to the end frame, then such playback operation

is repeated until you stop it manually.

2. Play Sequence

You can play back the waveforms clockwise ( ) or counterclockwise ( ).

- : plays from the start frame to the end frame.

: plays from the end frame to the start frame.

3. Interval

The playback interval indicates the time interval between the frames during the

playing process.

Click or tap the input field of

Interval, and then use the pop-up numeric keypad to

set the time interval between frames. You can also use the corresponding

multipurpose knob to set the value. The available range is from 1 ms to 1 s.

4. Start Frame

Waveform Recording and Playing

223
