Multi-pane Windowing

This series oscilloscope supports multi-pane windowing. You can add multiple

windows and result display windows for display and view.

Click or tap > Windows to enter the "Add Window" menu. You can also click or

tap the

Windows button on the toolbar at the top of the screen to enter the menu, as

shown in the figure below.

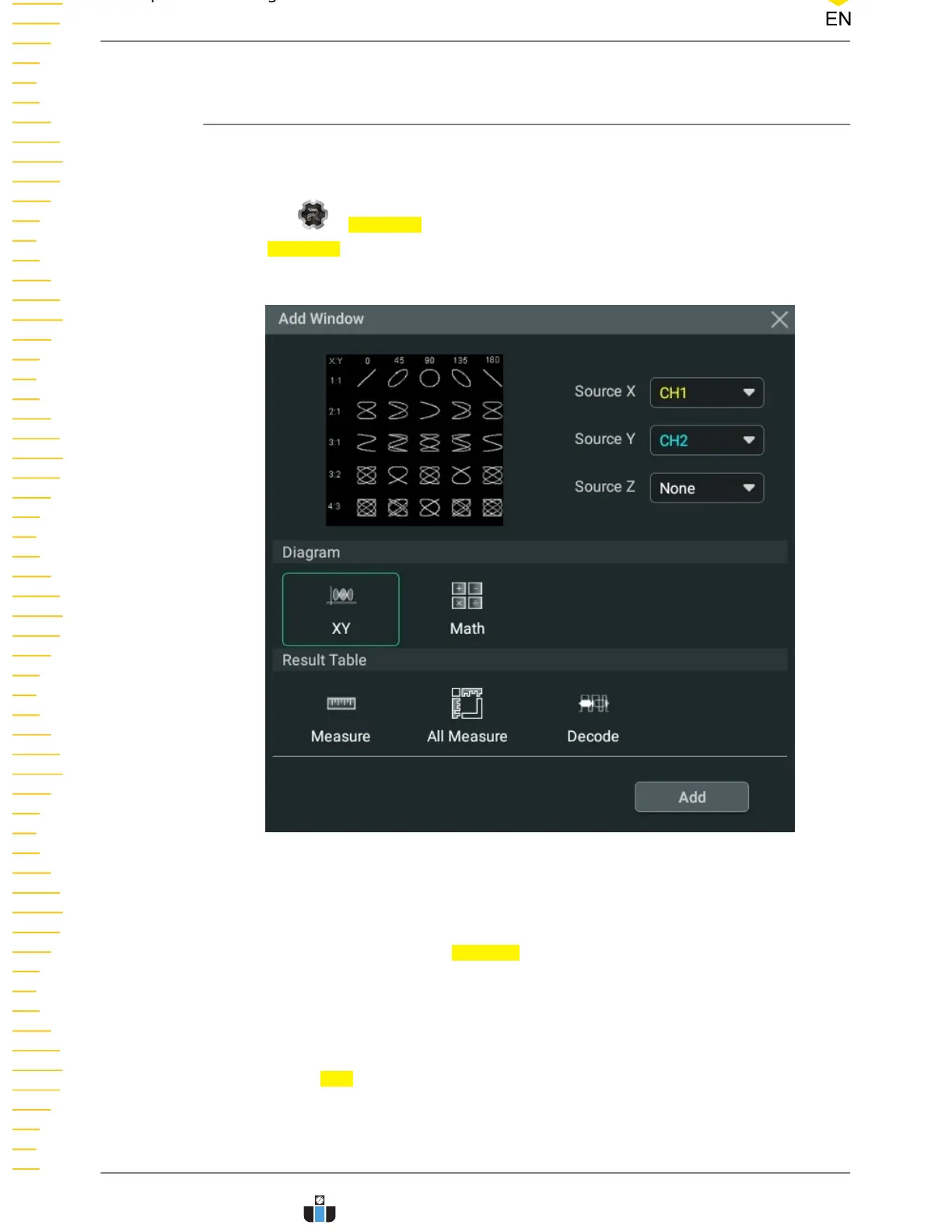

Figure 19.1 "Add Window" Menu

Add Diagram Windows

1. First, select "XY" or "Math" in Diagram. When a diagram is selected, its preview

and parameter setting items can be displayed at the upper part of the "Add

Window" menu.

2. You can set the corresponding parameters according to your needs. For details,

refer to descriptions of relevant chapters.

3. Click or tap

Add and then the selected diagram is displayed on the screen.

Multi-pane Windowing

DHO900 User Guide

218
