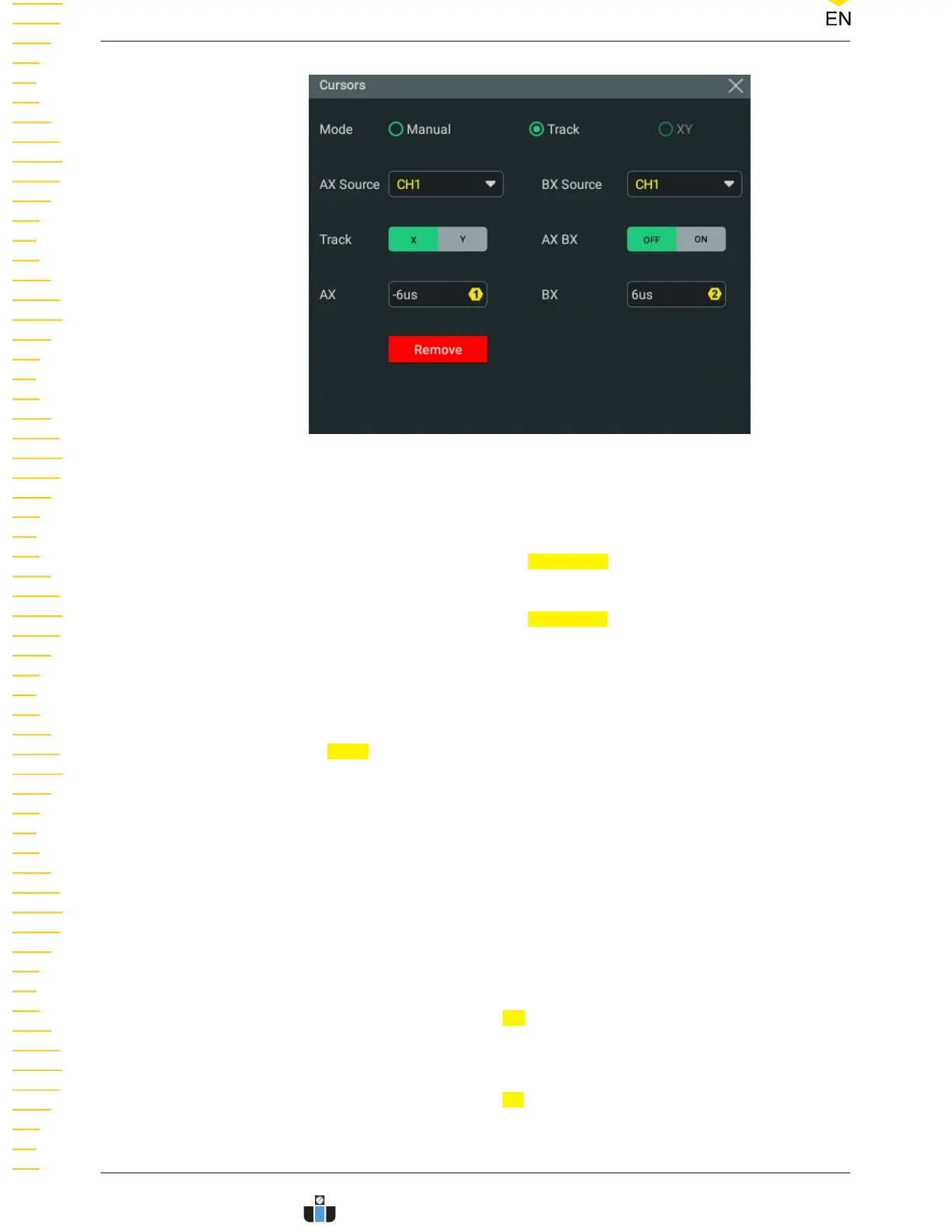

Figure 10.11 Track Mode Setting Menu

Select the Measurement Source

• Click or tap the drop-down button of AX Source to select the desired channel

(None, CH1-CH4, or Math1-Math4).

• Click or tap the drop-down button of

BX Source to select the desired channel

(None, CH1-CH4, or Math1-Math4).

When a specified channel is selected as the source, it will be automatically turned on.

Select the Track Mode

Click or tap the

Track toggle button to select "X" or "Y" as the current track axis. By

default, it is "X".

• X: When the X cursor position is adjusted, Y cursor will automatically track the

intersection point between X cursor and source signal

• Y: When the Y cursor position is adjusted, X cursor will automatically track the

intersection point between Y cursor and source signal.

Adjust Cursor Position

• When "X" is selected, you can adjust the position of X cursor.

- Click or tap the input field of

AX and use the pop-up numeric keypad to set

the horizontal position of Cursor A (X cursors). Its adjustable range is

limited within the screen.

- Click or tap the input field of

BX and use the pop-up numeric keypad to set

the horizontal position of Cursor B (X cursors). Its adjustable range is

limited within the screen.

Measurements

DHO900 User Guide

152
