Display Control

In the Display setting menu, you can set the type, persistence time, waveform

intensity, grid type, grid brightness, and etc. Click or tap the function navigation icon

at the lower-left corner of the screen, and then select Display to enter the

"Display" menu. You can also click or tap the icon at the upper-right of the

Waveform View to enter the "Display" menu.

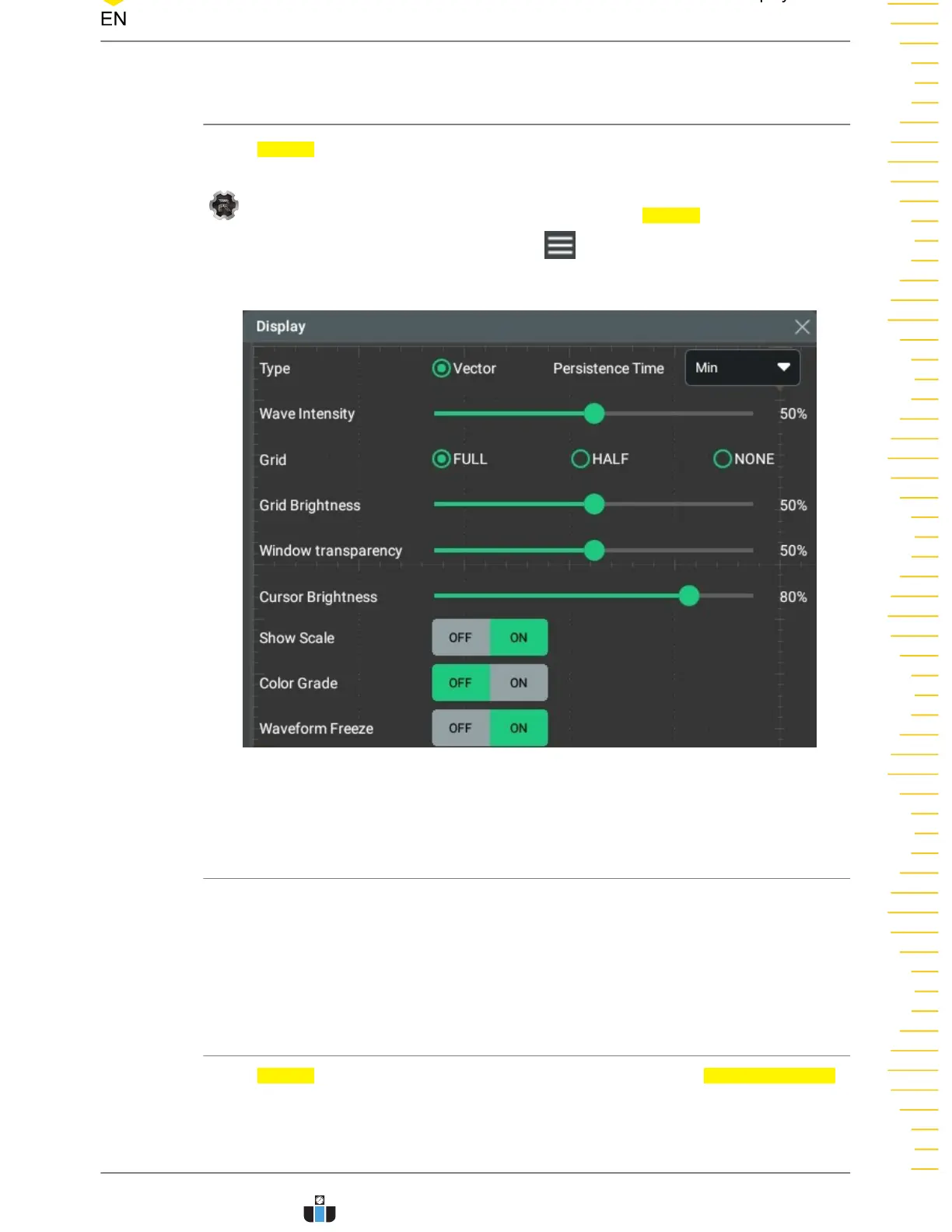

Figure 22.1 Display Setting Menu

22.1 Display Type

This series oscilloscope provides the "Vector" display mode in which the sample

points are connected by lines and displayed. In most cases, this mode can provide the

most vivid waveform for you to view the steep edge of the waveform (such as square

waveform).

22.2 Persistence Time

In the Display setting menu, click or tap the drop-down button of Persistence Time

to select the persistence time. The available values are Min, specific values (100 ms,

200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s), and Infinite.

Display Control

231
