Histogram Analysis

The histogram analysis function can provide the statistic view for waveform and

measurement results, enabling you to judge the trend of waveforms, and quickly

locate the potential problems of the signal. This series oscilloscope supports

histogram types including Horizontal, Vertical, and Measure. For the Measure

Histogram function, refer to

Histogram

of the "Measurements" chapter. This chapter

only introduces the Horizontal and Vertical histogram.

Click or tap the function navigation icon

and select Histogram to enter the

Histogram menu.

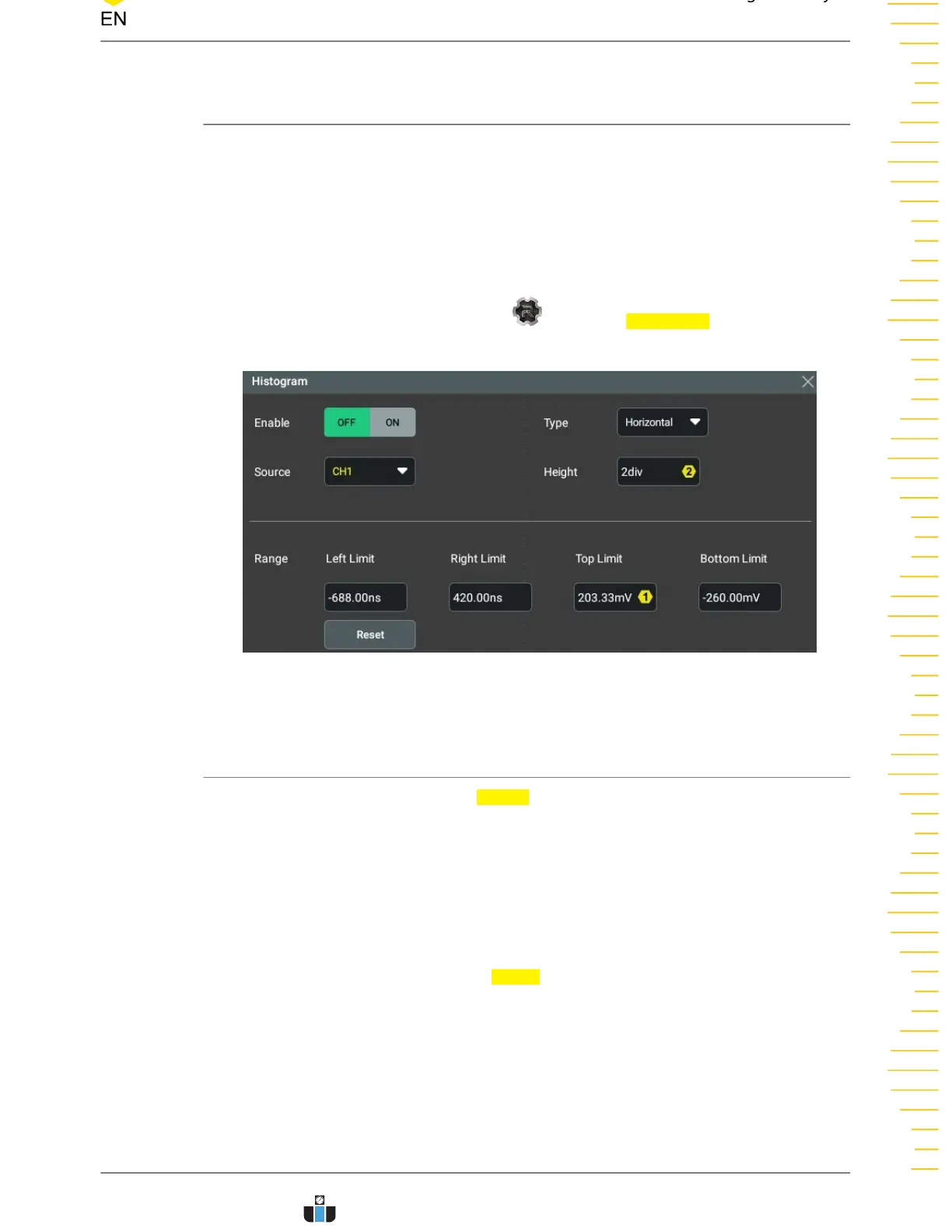

Figure 13.1 Histogram Menu

13.1 To Enable or Disable the Histogram Function

In Histogram menu, click or tap the Enable on/off switch to enable or disable the

histogram analysis. After the histogram function is enabled, with the on-going

acquisition and measurement of the waveforms, the height of the bar graph will

change within the set range of the histogram window to indicate the number of times

for data statistics.

Take horizontal histogram as an example. After the histogram function is enabled, the

histogram analysis view as shown in the figure below is displayed on the screen. Also,

the "Histogram" label appears on the

Result bar at the right side of the screen.

Histogram Analysis

165

Rigol DHO924 User Manual
