"Invert" On

"Invert" Off

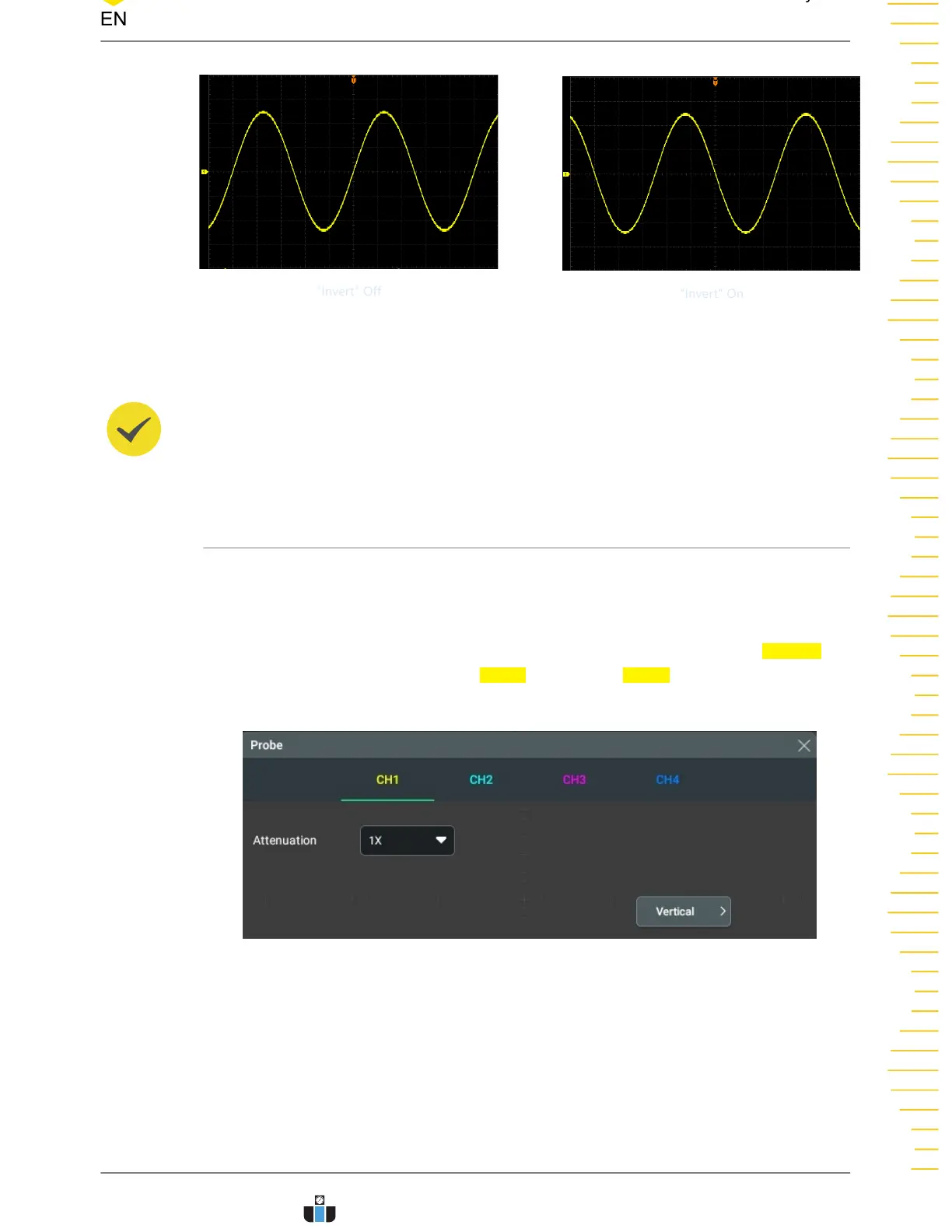

Figure 5.2 Waveform Invert On/Off

TIP

When the Invert function is turned on, the trigger (e.g. Edge trigger, Pulse trigger, or Slope

trigger) edge or polarity will be changed.

5.8 To Set Probe

The analog channel of this oscilloscope supports passive probes. For detailed

technical information of the probes, please refer to the corresponding Probe User

Guide.

Click or tap the channel status label at the bottom of the screen. Then the Vertical

menu is displayed. Then click or tap

Probe to enter the Probe setting menu, as shown

in the figure below.

Figure 5.3 Probe Setting Menu

Probe Ratio

The oscilloscope allows you to set the probe attenuation manually. To obtain the

accurate measurement results, you must set the probe ratio properly. By default, the

probe ratio is 1X.

The probe ratio values available are as shown in the following table.

Vertical System
