• 1/∆X: indicates the reciprocal of the horizontal spacing between Cursor A and

Cursor B.

Click or tap the result bar and then select Remove or Setting in the pop-up window.

• Click or tap Remove. Then the current cursor measurement results will be

cleared.

• Click or tap Setting. Then the "Cursors" menu is displayed. You can select the

cursor mode: Manual, Track, and XY.

10.3.1 Manual Mode

In the manual cursor mode, you can adjust the cursor manually to measure the value

of the waveforms of the specified source at the current cursor. If the settings for the

parameter such as the cursor type and measurement source are different, the

measurement results will be different for cursor measurement.

In the Cursors menu, click or tap Manual for the Mode item to enable the Manual

cursor measurement function. The measurement results are displayed in the "Result"

bar at the right side of the screen. When you change the cursor position, the

measurement results will be changed accordingly.

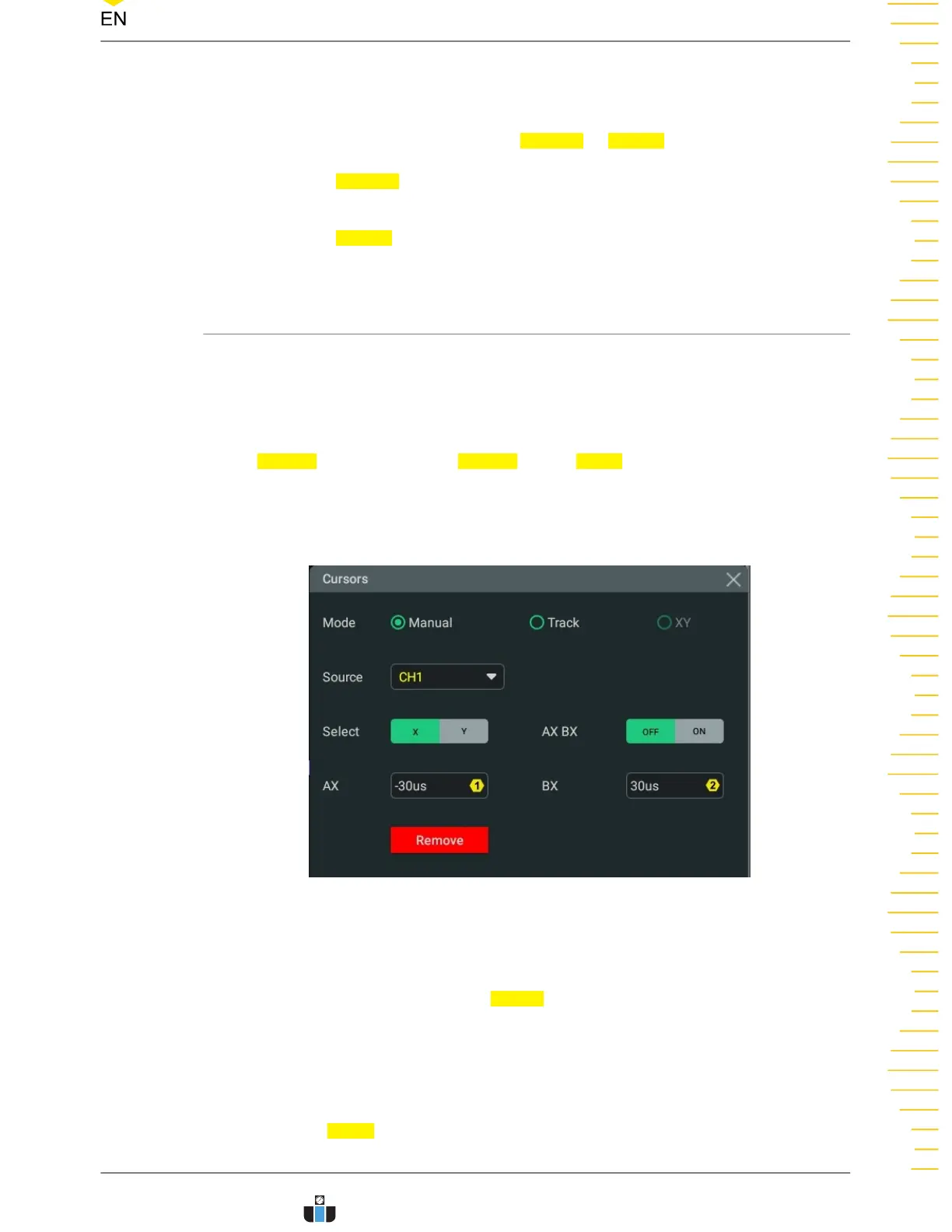

Figure 10.9 Manual Mode Setting Menu

Select the Measurement Source

Click or tap the drop-down button of Source to select the desired channel (None,

CH1-CH4, LA or Math1-Math4).

When a specified channel is selected as the source, it will be automatically turned on.

Select Cursor Type

Click or tap the

Select toggle button to select "X" or "Y".

Measurements

149
