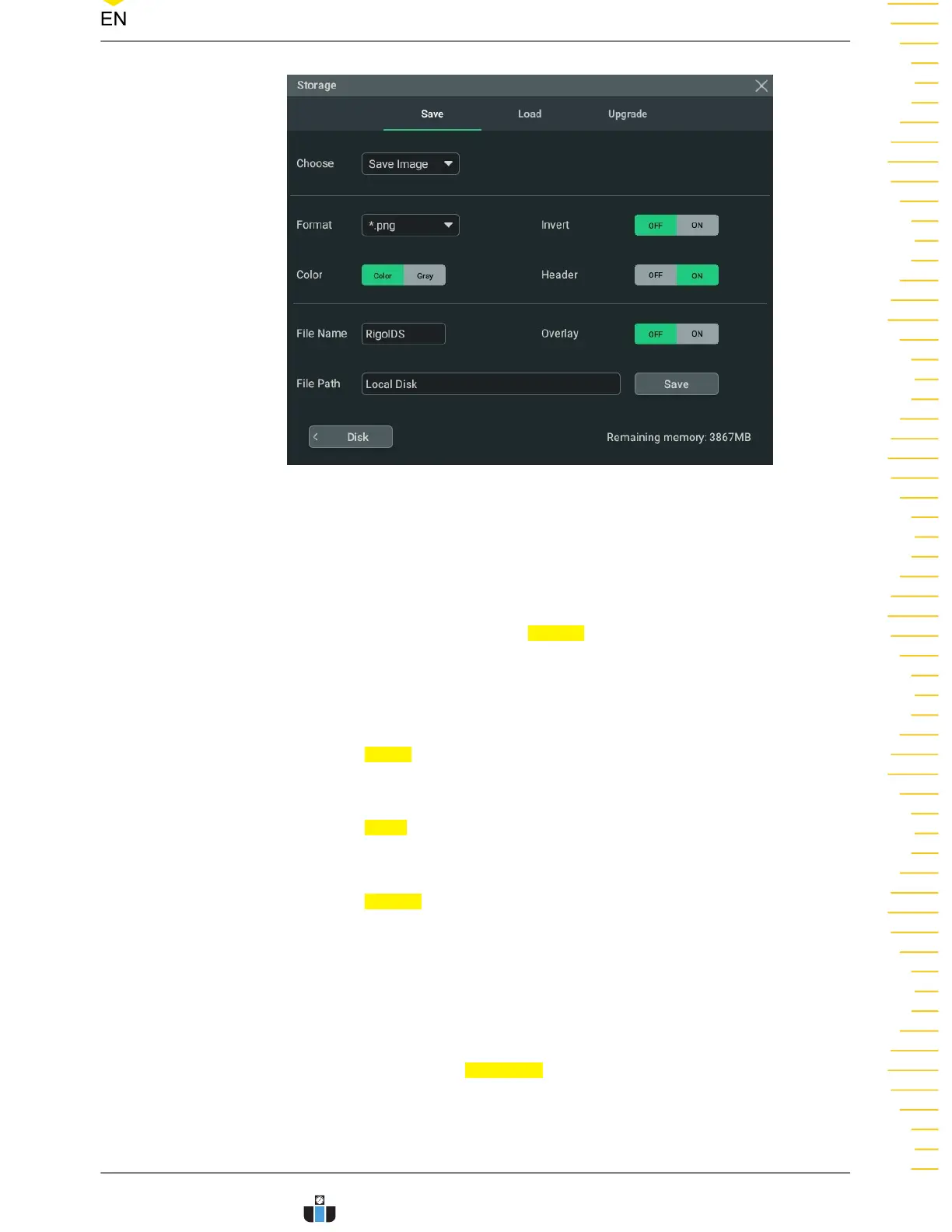

Figure 23.1 Image Saving Setting Menu

Set the image format

• Format

Click or tap the drop-down button of Format to select "*.png", "*.bmp", or

"*.jpg". Then the screen image will be saved to the internal or external memory

in the selected format.

• Invert

Click or tap the

Invert on/off switch to turn on/off inverting image colors.

• Color

Click or tap the

Color toggle button to select "Color" or "Gray" images.

• Header

Click or tap the Header on/off switch to enable or disable the display of the

header. If you select "ON", the instrument model and the image creation date

will be displayed in the header of the image after you save the image file.

Set the file saving parameters

• Set the filename

Click or tap the input field of

File Name to input the file name to be saved with

the pop-up virtual keypad.

• Set the file path

Store and Load

235
