Export

When the oscilloscope is in "STOP" state, you can export the time and its

corresponding decoded data in the event table.

In Decode menu, click or tap Export, then the save setting interface is displayed. You

can export the data to the internal memory or the external USB storage device (only

when detected) in *.csv format. For details, refer to

Store and Load

Interpret the Decoded LIN Data

• Break (Sync Break): expressed in Hex, identified as "Break:".

• SYNC (Sync): expressed in Hex, identified as "SYNC:".

• ID (Frame ID): expressed in Hex, identified as "ID:".

• Data (Data): Its display format is the same as that of the bus data (Hex, Dec, Bin,

or ASCII), identified as "Data:".

• Checksum (check sum): expressed in Hex, identified as "Checksum:". When errors

occur, it is displayed as a red patch.

• Wakeup (wake up symbol): identified as "Wakeup:".

18.6 CAN Decoding

The oscilloscope samples the CAN signal at the specified sample position, and judges

each data point to be logic "1" or logic "0" according to the preset threshold level.

You need to specify the CAN signal type and sample position.

In the Decode menu, click or tap the drop-down button of Bus Type to select CAN,

then configure the parameters for CAN decoding.

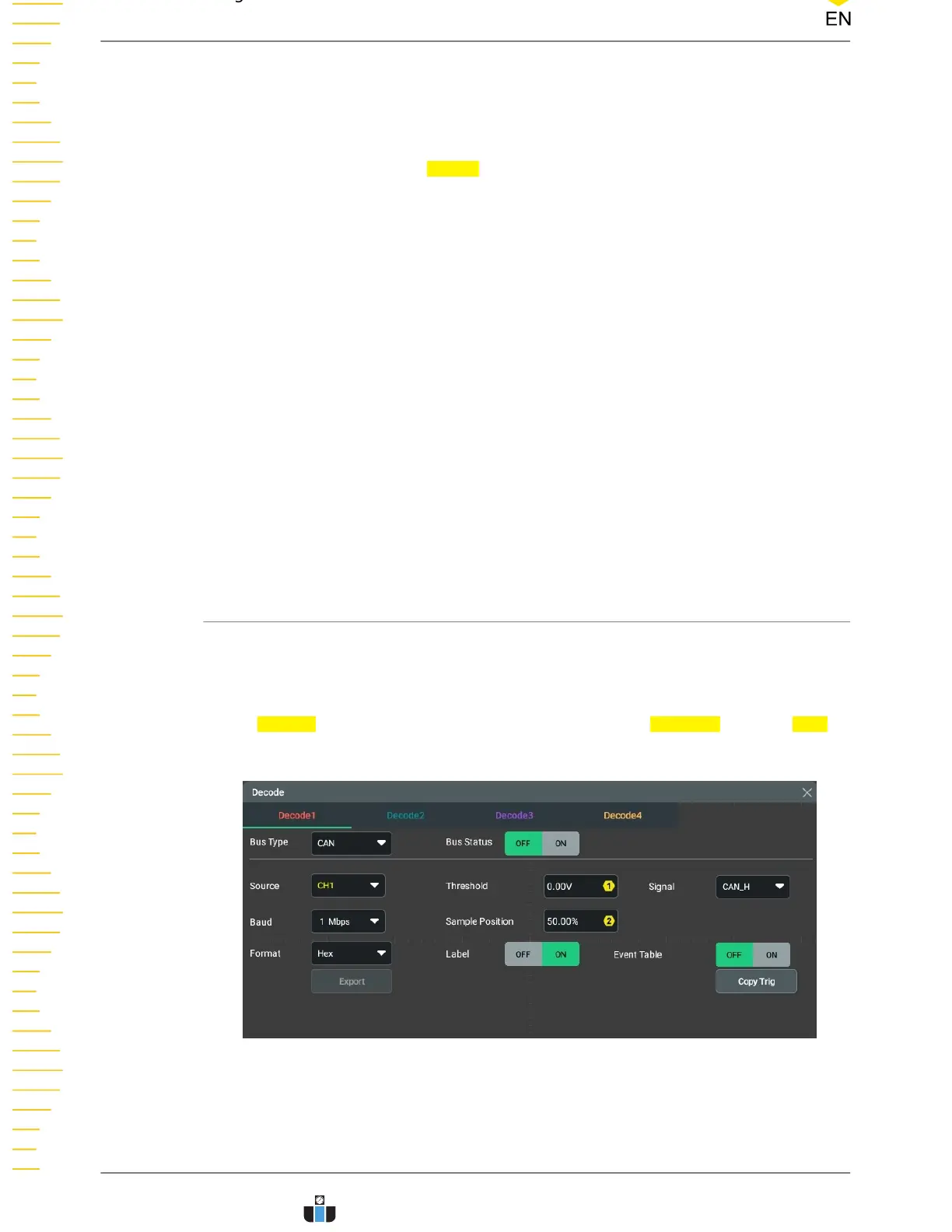

Figure 18.15 CAN Decoding Menu

Protocol Decoding

DHO900 User Guide

214
