4.4.2 Rear Panel Overview

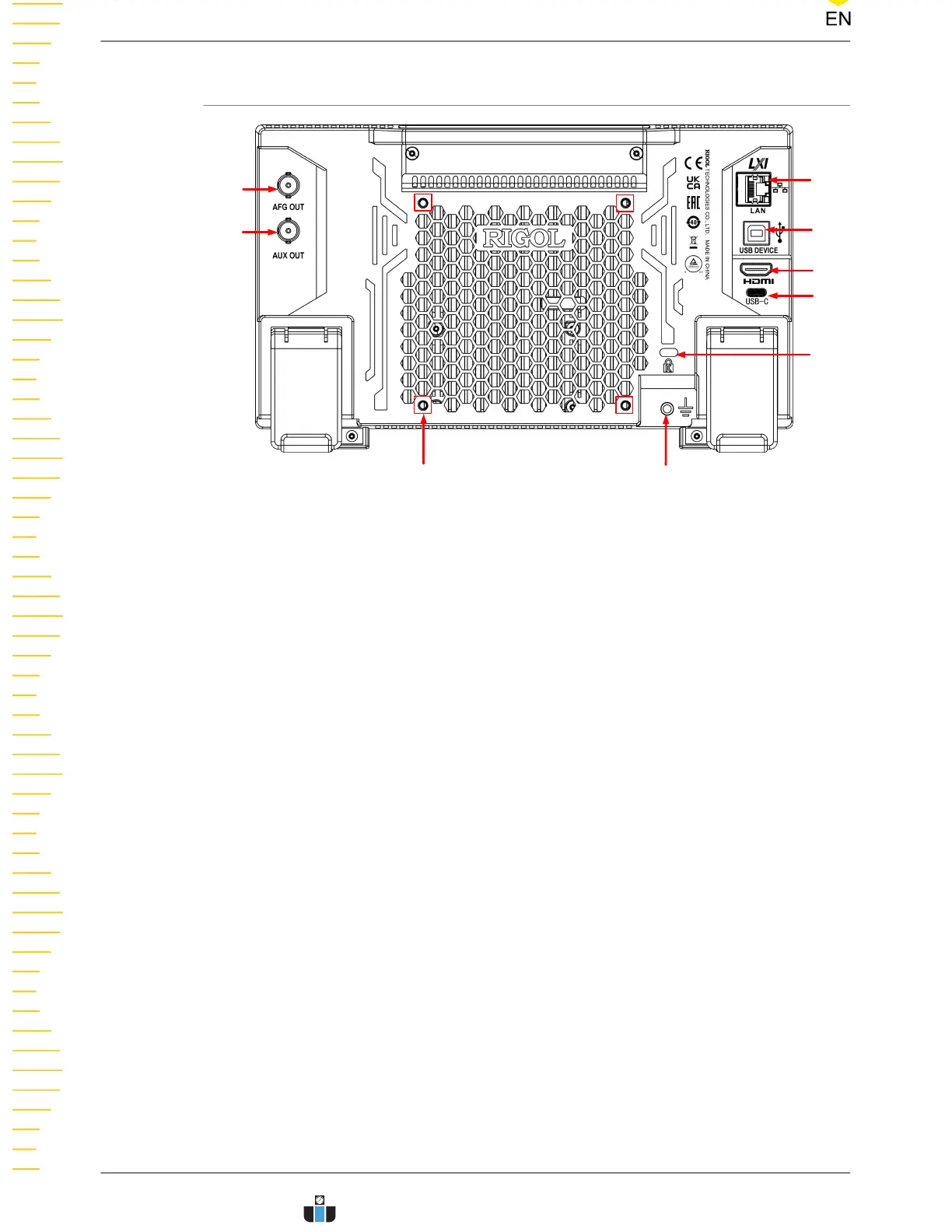

Figure 4.11 Rear Panel

1. AUX OUT

- Trigger output:

After the AUX output is set to "TrigOut", the oscilloscope generates a trigger

and outputs a signal that can reflect the current capture rate of the oscilloscope

via this interface. Connect the signal to a waveform display device and measure

the frequency of the signal. The measurement result is the same as the current

capture rate.

- Pass/Fail:

After the AUX output is set to "PassFail", in the pass/fail test, the instrument will

output a pulse via the [AUX OUT] connector when a passed or failed waveform

is detected during the pass/fail test.

2. AFG OUT (for DHO914S and DHO924S only)

DHO914S and DHO924S have a built-in AFG. When the AFG output is enabled, the

rear-panel [AFG OUT] connector will output signals according to current settings.

3. LAN

Connect the instrument to network via this interface. The instrument conforms to

the standards specified in LXI Device Specification 2011. Its test system can be

built quickly. Then you can control the instrument through using Web Control to

send the SCPI commands. When update is available, you can perform online

upgrading for the system software of the instrument via the LAN interface.
