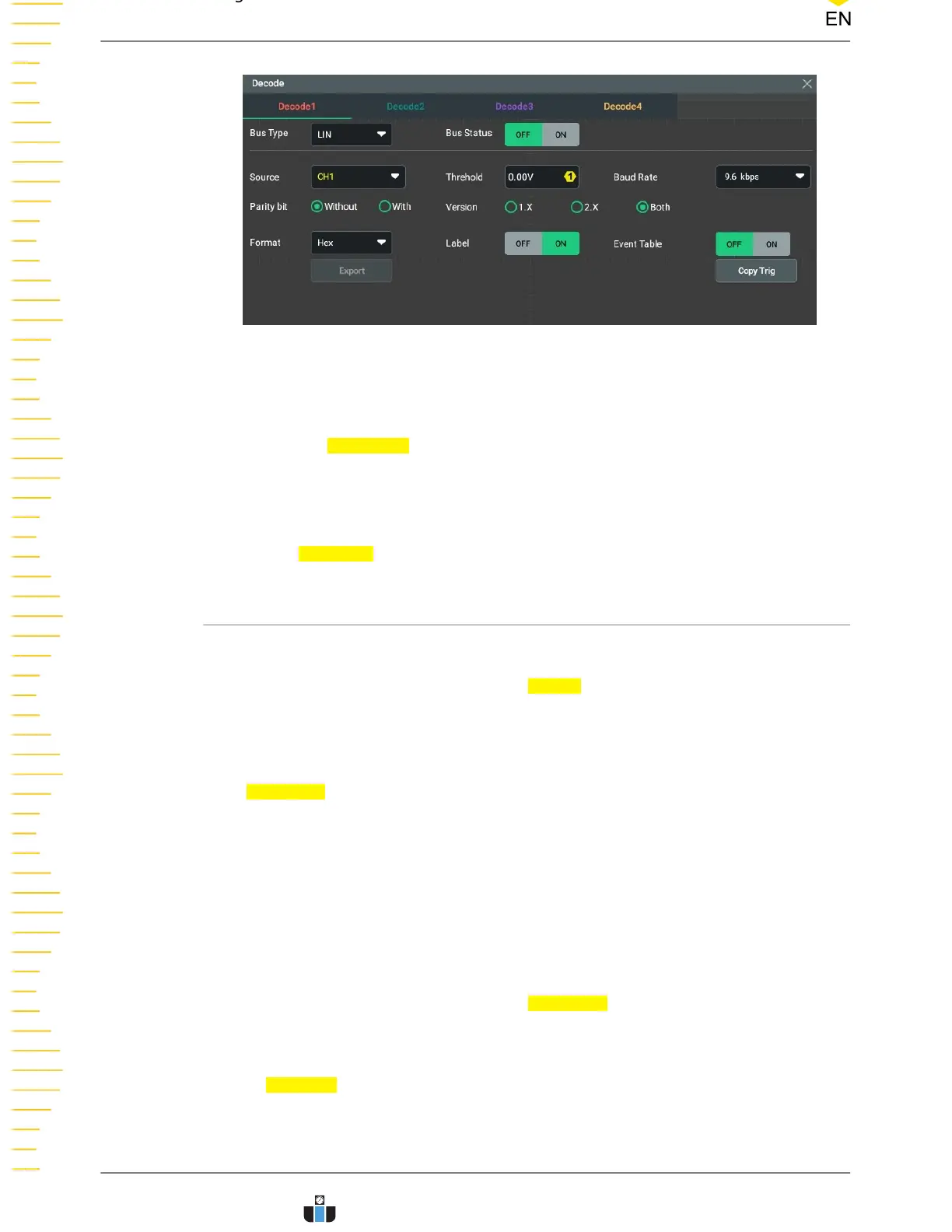

Figure 18.13 LIN Decoding Menu
Bus Status
Click or tap the Bus Status on/off switch to enable or disable the bus decoding.
Quickly Apply Trigger Settings to Decoding
Copy trig indicates applying the trigger settings to the specified decoding setting.
Click or tap Copy Trig to apply the trigger settings to the specified decoding setting.
18.5.1 Signal Configuration
Set the source and the threshold
• Click or tap the drop-down button of Source to select the desired source.
Available sources include analog channels CH1-CH4 and digital channels D0-D15
(available only when the digital channel probe is connected).
• When the source is set to an analog channel, click or tap the input field of
Threshold, and then use the pop-up numeric keypad to set the threshold of the
source channel. You can also use the corresponding multipurpose knob to set
the value.
When you modify the threshold of the signal source, a dotted line displaying the
current threshold level is displayed on the screen. It disappears in about 2 s after
you stop modifying the threshold.
Set the Signal
• Click or tap the drop-down button of
Baud Rate to select the baud rate. The
available baud rates include 2.4 kbps, 4.8 kbps, 9.6 kbps, 10.0 kbps, 19.2 kbps,
and etc. You can also self-define the baud rate.
• In
Parity bit, click or tap "With" or "Without" to select whether the data
contain the parity bit.
Protocol Decoding
DHO900 User Guide
212
