8.7.1 Edge Trigger

Edge trigger identifies a trigger on the trigger level of the specified edge on the input

signal.

Trigger Type

Click or tap the Type drop-down button to select "Edge".

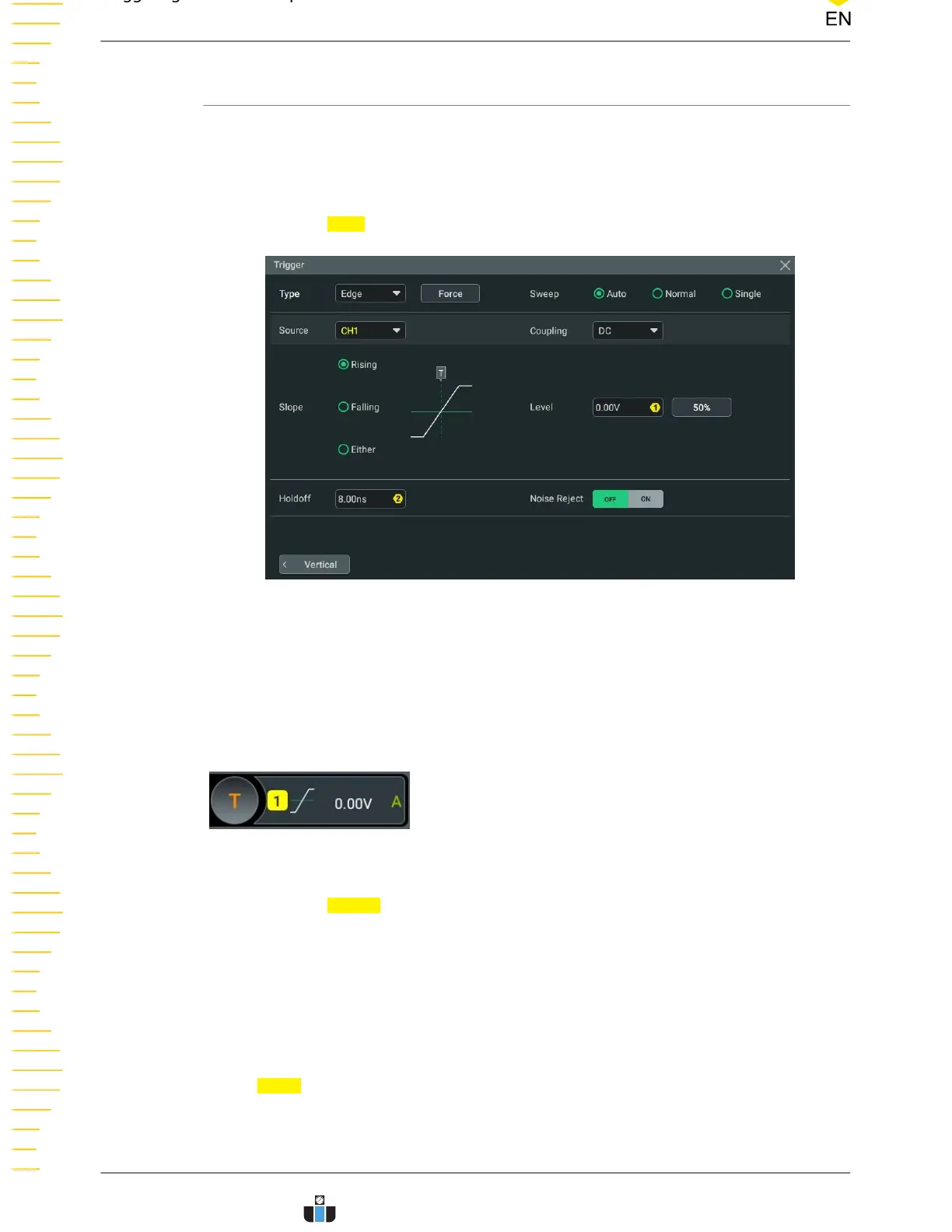

Figure 8.3 Edge Trigger Setting Menu

After a trigger type is selected, the current trigger setting information (including the

trigger type, source, and level) is displayed in the trigger information label at the top

of the screen, as shown in the figure below. The information will change based on the

trigger settings.

Source Selection

Click or tap the

Source drop-down button to select CH1-CH4 or D0-D15. For details,

refer to

Trigger Source

. The selected trigger source is indicated in the trigger

information label at the top of the screen.

Only when you select the channel that has signal inputs as the trigger source, can you

obtain a stable trigger.

Edge Type

In the

Slope item, select which edge of the input signal will trigger the oscilloscope.

The selected slope will be indicated in the trigger information label.

Triggering the Oscilloscope
