Trigger Level

Click or tap the Level input field to set the trigger level with the pop-up numeric

keypad. You can also use the front-panel trigger level knob or the corresponding

multipurpose knob to set the trigger level. For details, refer to descriptions in

Trigger

Level

. The current trigger level is displayed in the trigger information label at the top

of the screen.

8.7.7 Timeout Trigger

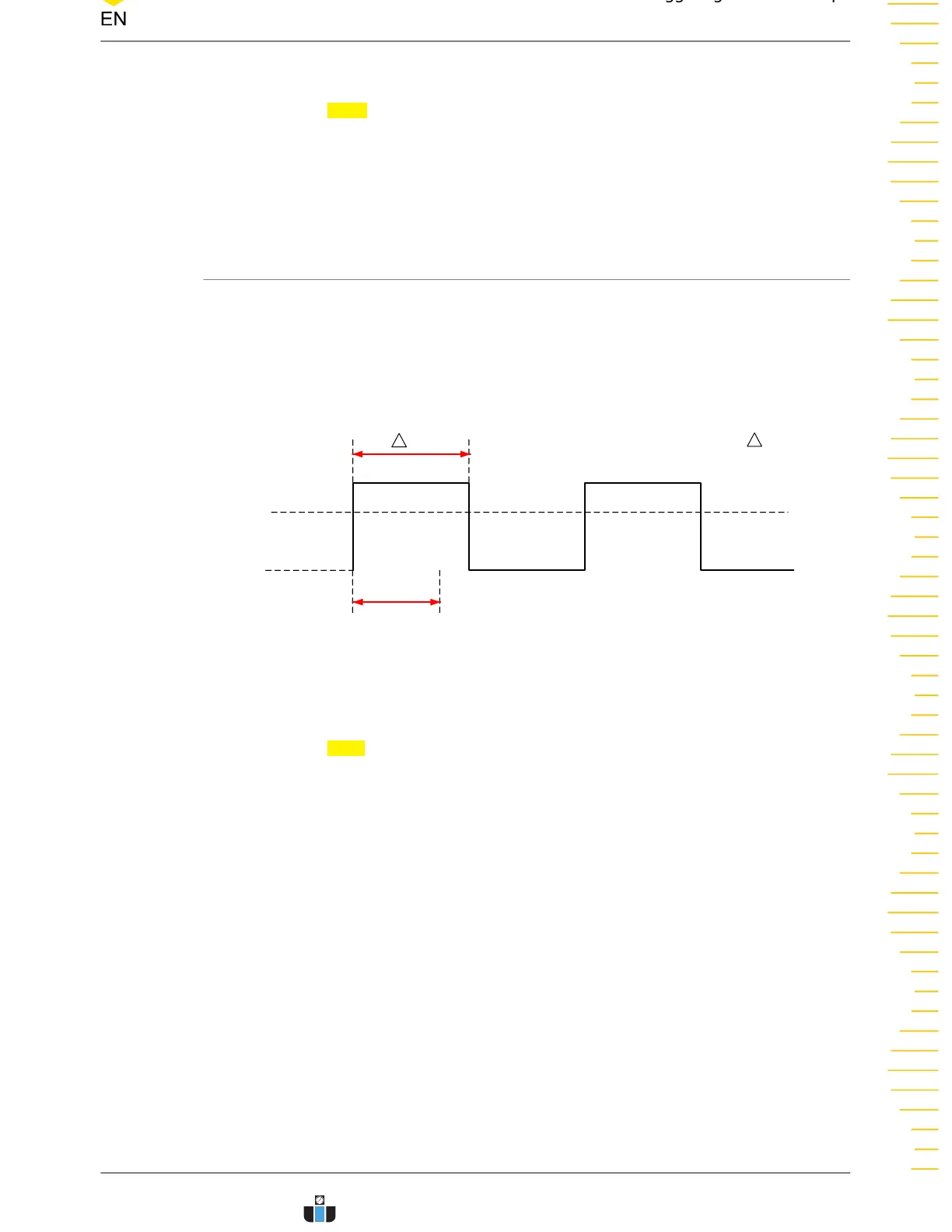

In Timeout trigger, the oscilloscope triggers when the time interval (∆T) (the time

from when the rising edge (or falling edge) of the input signal passes through the

trigger level to the time from when the neighboring falling edge (or rising edge)

passes through the trigger level) is greater than the preset timeout value, as shown in

Figure 8.13

Time Out

Figure 8.13 Timeout Trigger

Trigger Type

Click or tap the Type drop-down button to select "Timeout".
