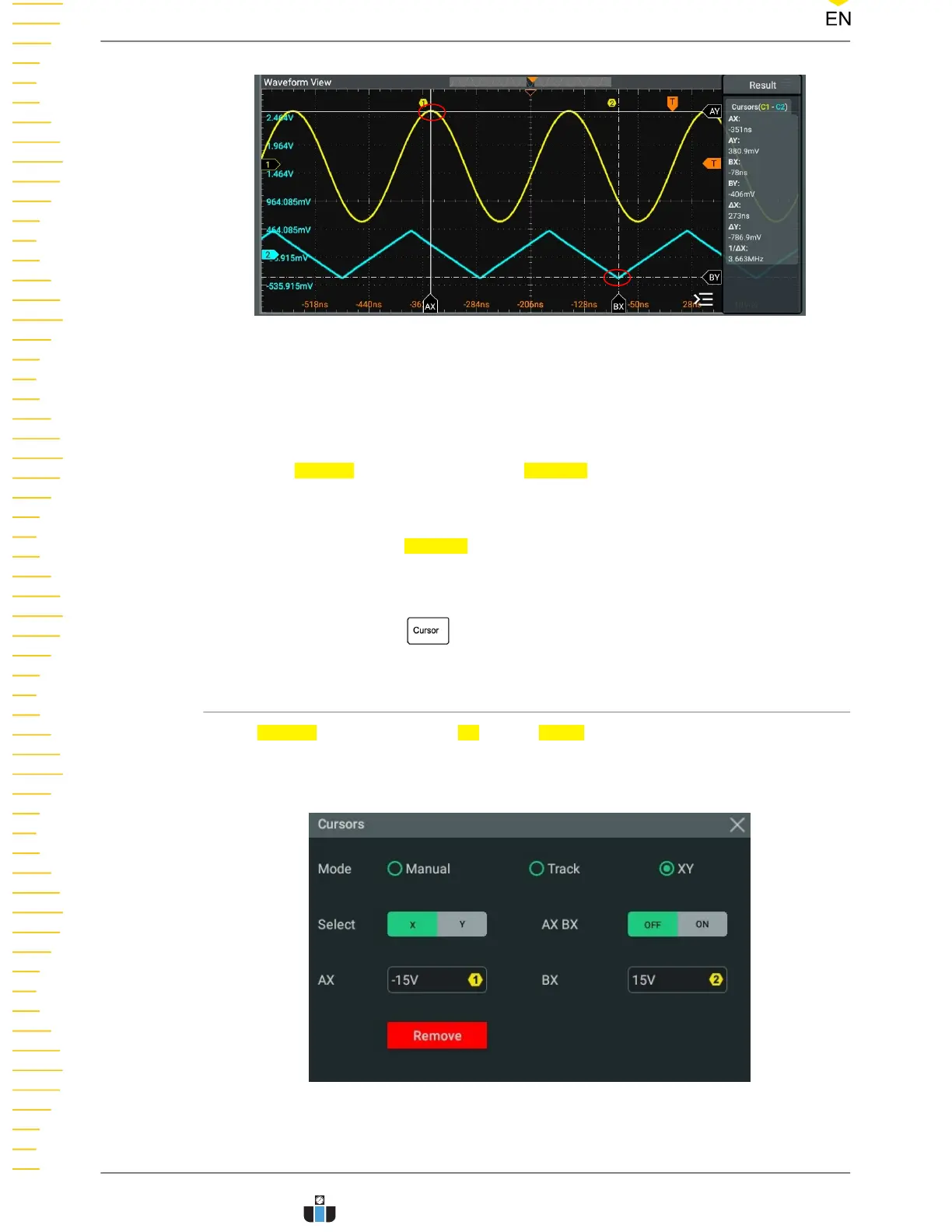

Figure 10.13 Track Measurement (after Horizontal Expansion)

Disable the Cursor Measurement Function

When cursor measurement is enabled, you can disable it in the following ways:

• In the Cursors menu, click or tap the Remove button to disable cursor

measurements.

• In the "Result" bar at the right side of the screen, click or tap the "Cursors" label

and then click or tap

Remove in the pop-up window.

• In the "Result" bar at the right side of the screen, drag the "Cursors" label to the

right to simply disable cursor measurements.

• Press the front-panel

key to disable cursor measurements.

10.3.3 XY Mode

In the Cursors menu, click or tap XY for the Mode item to enable the XY cursor

measurement function. The measurement results are displayed in the "Result" bar at

the right section of the screen.

Figure 10.14 XY Mode Setting Menu

Measurements

DHO900 User Guide

154
