Trigger Level

Click or tap the Level input field to set the trigger level with the pop-up numeric

keypad. You can also use the front-panel trigger level knob or the corresponding

multipurpose knob to set the trigger level. For details, refer to descriptions in

Trigger

Level

. The current trigger level is displayed in the trigger information label at the top

of the screen.

8.7.6 Duration Trigger

In duration trigger, the oscilloscope identifies a trigger condition by searching for the

duration of a specified pattern. This pattern is a logical "AND" combination of the

channels. Each channel can be set to 1 (high), 0 (low), or X (don't care). The

instrument triggers when the duration (∆T) of this pattern meets the preset time, as

shown in the figure below.

CH1

CH2

CH3

CH4

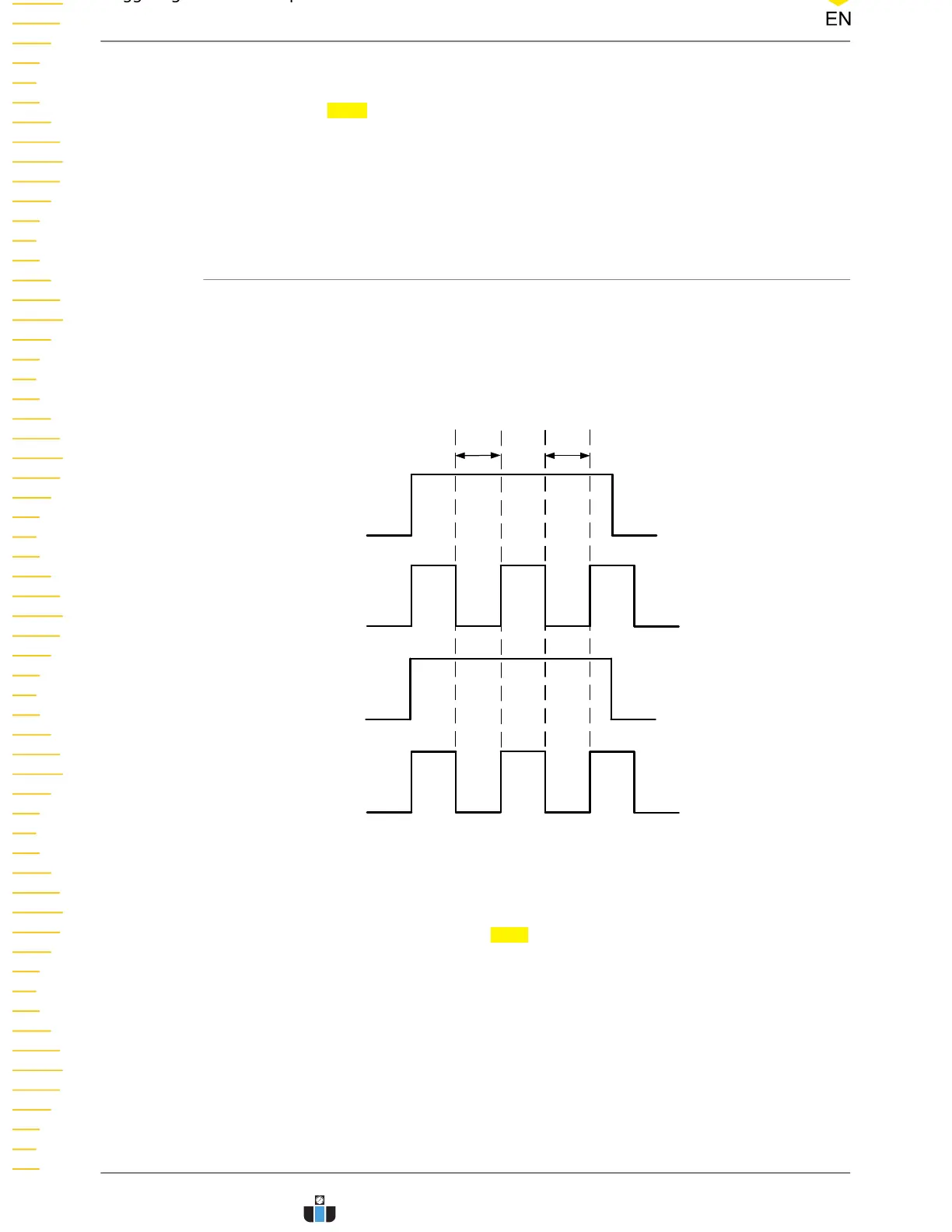

∆T ∆T

Pattern:HLHL

Figure 8.11 Duration Trigger

Trigger Type

Click or tap the drop-down button of Type to select "Duration".

Triggering the Oscilloscope
