4.4.3 User Interface Overview
1
2
3
4 5
6
7
8
10
11
13
14
15
12
9

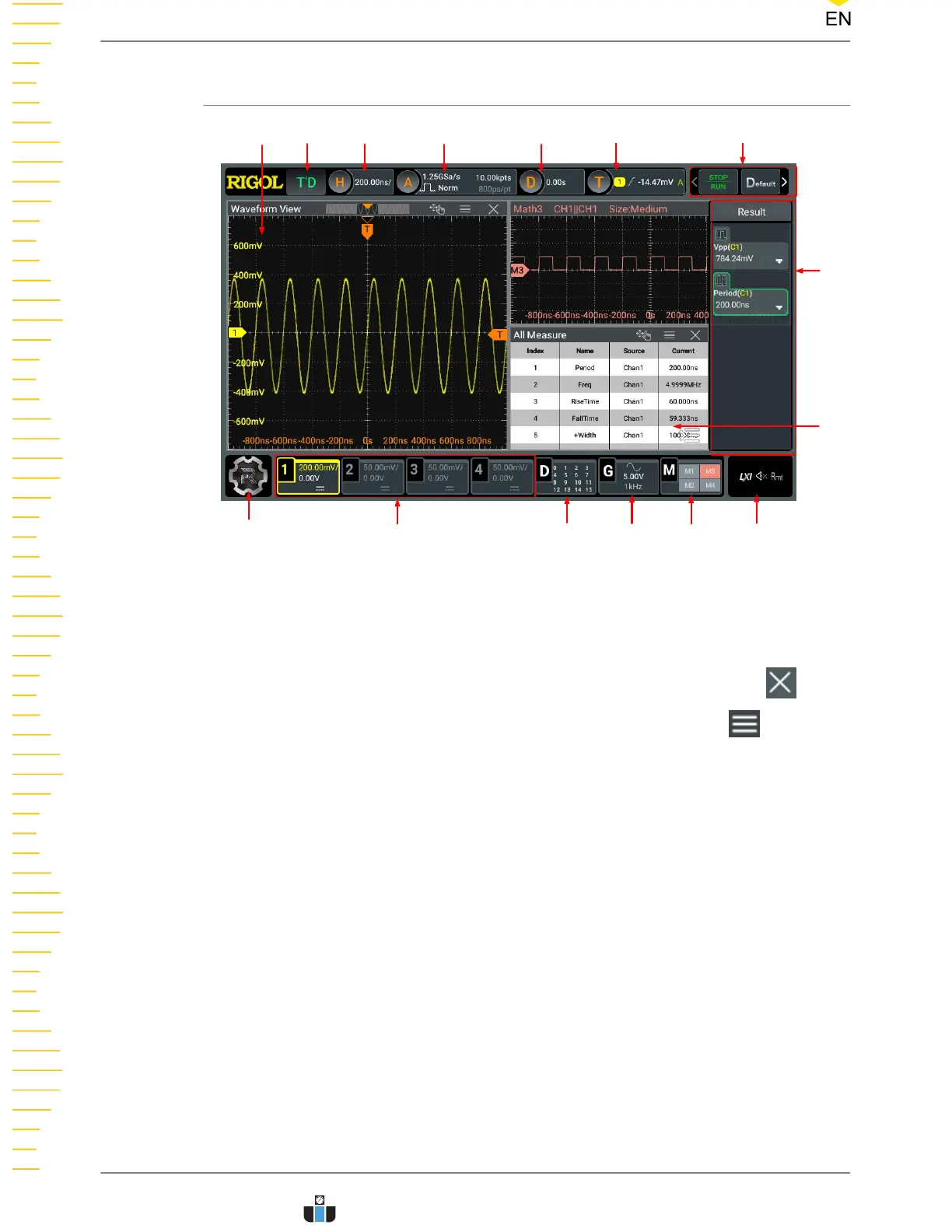

Figure 4.12 User Interface
1. Waveform View
Displays the measurement waveform window for CH1-CH4. Click or tap at the
upper-right corner of the window to close the window; click or tap
to enter
the configuration menu of the specified function.
2. Run State Label
Displays the operating status of the instrument. Possibles states include RUN,
STOP, T'D, WAIT, and AUTO.
3. Horizontal Timebase Label
Displays the current horizontal time base. Click or tap this label to enter the
horizontal setting menu.
4. Sample Rate & Memory Depth Label
Displays the current sample rate and memory depth. Click or tap this label to enter
the horizontal setting menu.
5. Horizontal Position Label
Displays the current horizontal position. Click or tap this label to enter the
horizontal setting menu.
Quick Start
DHO900 User Guide
26
