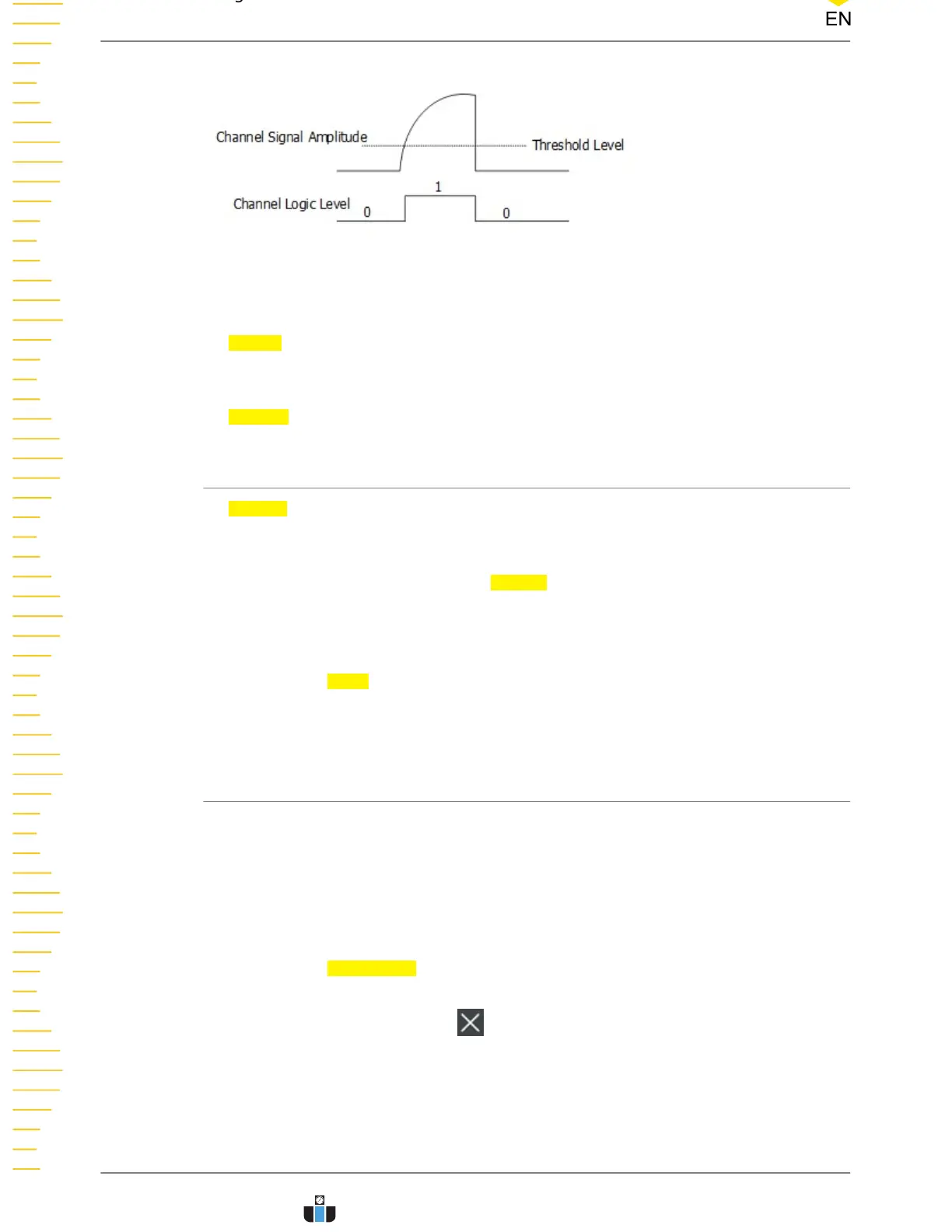

Set the endian

In Endian, select "Invert" or "Normal" as the endian of the bus.

Set the polarity

Polarity, select "Positive" or "Negative" as the data polarity.

18.1.3 Display-related Settings

In Decode menu, set the following display-related parameters.

Set the Display Format

Click or tap the drop-down button of Format to select the display format of the bus

data and event table. The available options include "Hex", "Dec", "Bin", and "ASCII".

Set the Label Display

Click or tap the Label on/off switch to enable or disable the label display of the

decoding bus. When enabled, the bus label will be displayed at the upper-left side of

the bus (when the bus display is enabled). The label shows the current bus type.

18.1.4 Event Table

The event table displays the decoded data and the corresponding decoding

information in time order in the form of a table. It can be used to observe relatively

longer decoded data. The decoding information includes the decoded data, the

corresponding line number, and time information.

Open or Close the Event Table

Click or tap the Event Table on/off switch to enable or disable the display of the

event table. When enabled, the event table is displayed as shown in the figure below.

You can also click or tap the icon

at the upper-right corner of the table to close

the event table.

Protocol Decoding

DHO900 User Guide

198
