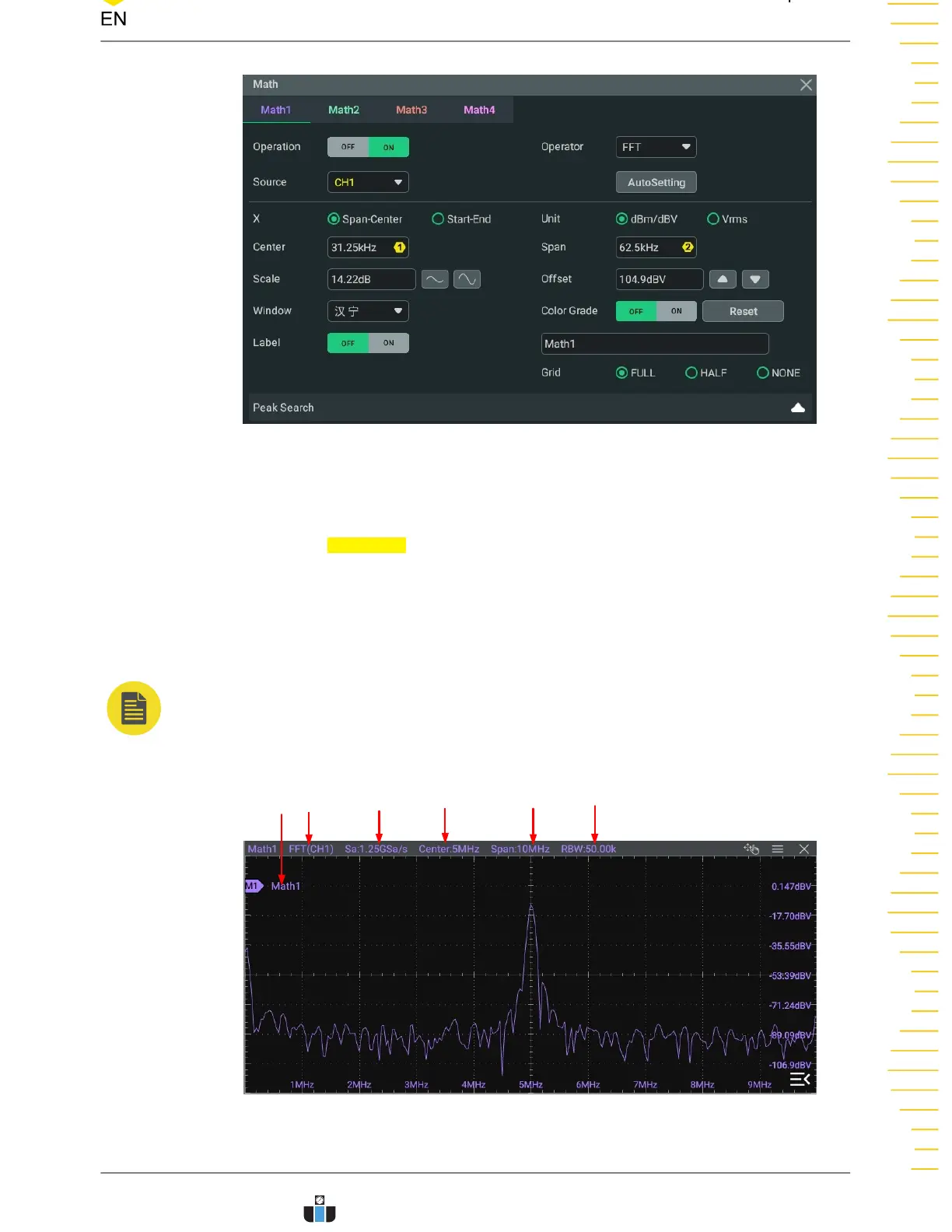

Figure 9.7 FFT Operation Menu

Operation On/Off

Click or tap the Operation on/off switch to enable the FFT operation result window.

The parameters such as center frequency, frequency range, and resolution are

displayed at the top of the window, as shown in the figure below. FFT resolution is the

quotient of the sample rate and the number of FFT points. If the number of FFT points

is a fixed value, then the higher the sample rate, the higher the resolution.

NOTE

The number of FFT analysis points can be 1 Mpts in maximum.

Source

Center

Frequency

Label

Sample

rate

Frequency

Span

Resolution

Figure 9.8 FFT Operation Window

Math Operation

121
