reference is negative. The area measured is the algebraic sum of the whole

period area.

10.2.2 Select the Measurement Item

In the Measure menu, click or tap Horizontal, Vertical, or Other to go to the desired

menu. You can also slide to select the measurement item to enter the corresponding

interface, as shown in

Figure 10.4

Figure 10.5

, and

Figure 10.6

. Click or tap any of

the measurement items to enable the measurements. This series allows you to enable

measurements of up to 14 items at the same time.

TIP

You can also refer to

Multi-pane Windowing

to enable all measurements.

• Vertical: Vmax, Vmin, Vpp, Vtop, Vbase, Vamp, Vupper, Vmid, Vlower, Vavg,

VRMS, Per. VRMS, Overshoot, Preshoot, Area, Per.Area, and AC.RMS.

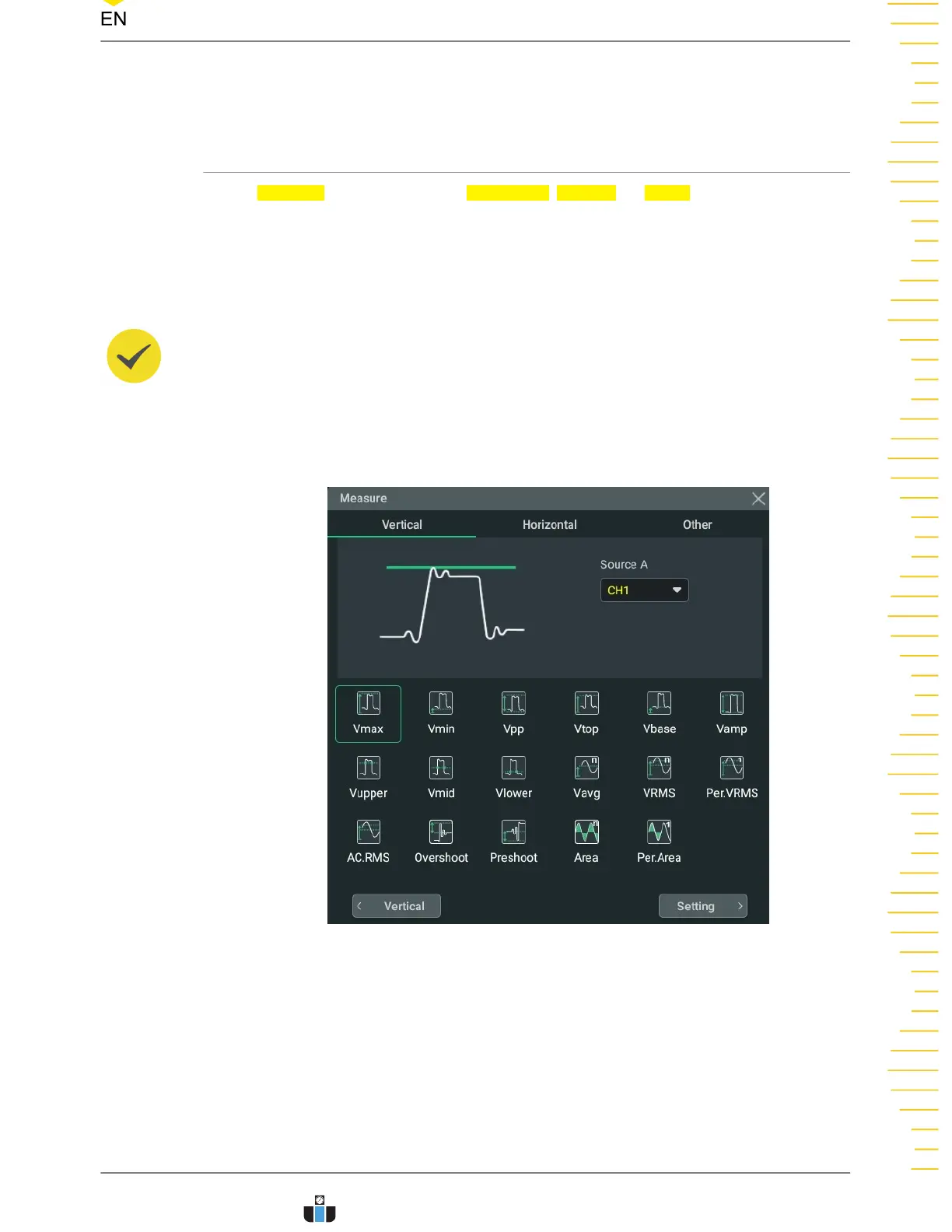

Figure 10.4 Vertical Measurement Items

• Horizontal: Period, Frequency, Rise Time, Fall Time, +Width, -Width, +Duty, -

Duty, Positive Pulse Count, Negative Pulse Count, Rising Edge Count, Falling

Edge Count, Tvmax, Tvmin, +Slew Rate, and -Slew Rate.

Measurements

141
