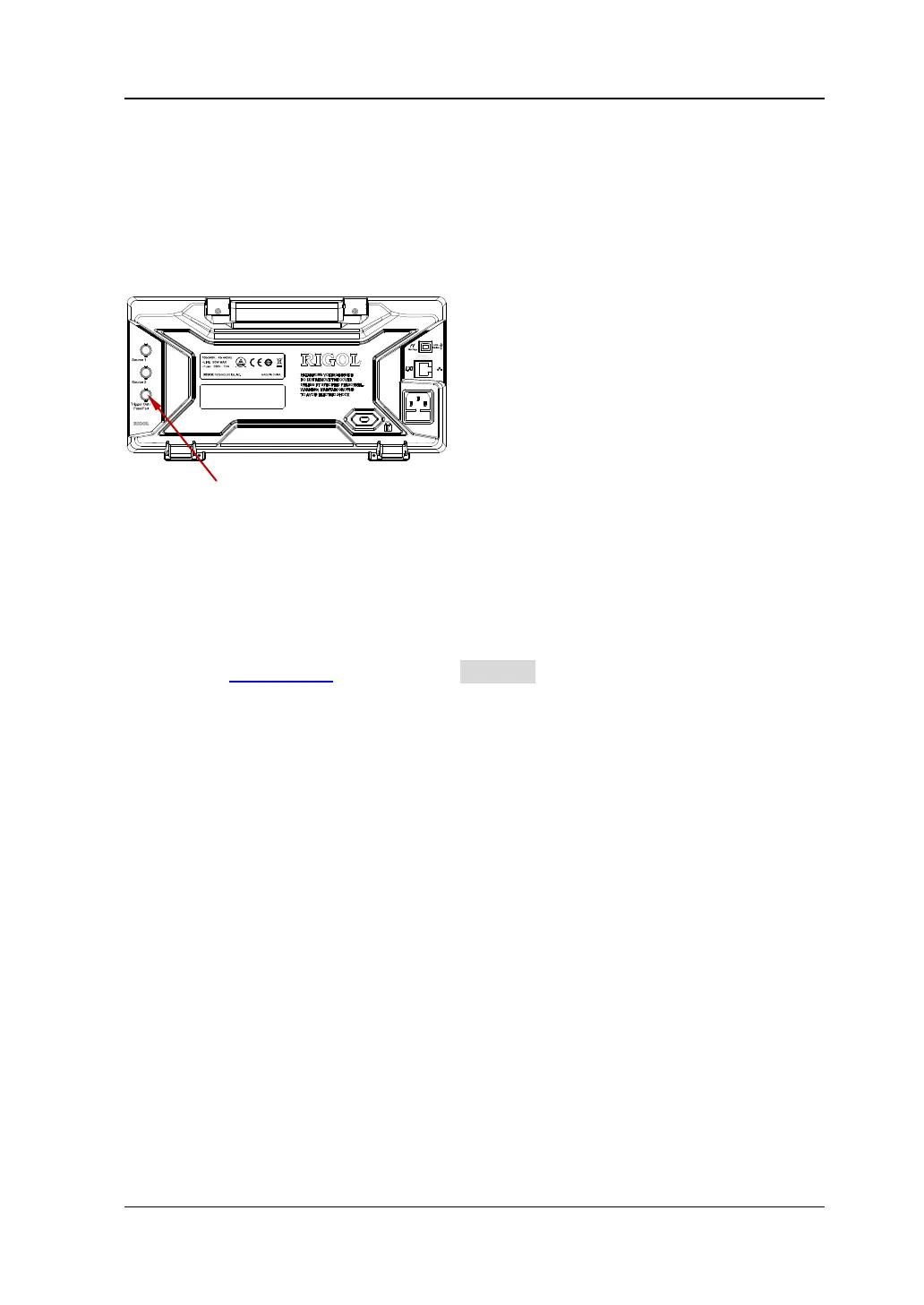

Trigger Output Connector
The trigger output connector at the rear panel can output trigger signals determined
by the current setting.
When the oscilloscope is triggered, a signal that can reflect the current capture rate
of the oscilloscope will be outputted via [Trigger Out] connector and connect the
signal to a waveform display instrument to measure the frequency of the signal and
the result is equal to the current capture rate.
Note: in the 9 Pass/Fail Test, when the Aux Out is turned on, there will be output a
negative pulse signal when failed waveforms are detected by the oscilloscope.
Connect this signal to other control systems to view the test result conveniently.
There will be output a 3.3 V CMOS high level when no failed waveform is detected by
the oscilloscope.
Trigger Output Connector
