Rigol DS1000Z Series User Manual

Chapter 1 Quick Start RIGOL
DS1000Z User’s Guide
1-17
mVpp. If the parameters exceed these limits, “can’t detect any
signal！” would be displayed after pressing this key and the quick
parameter measurement menu might not be displayed.

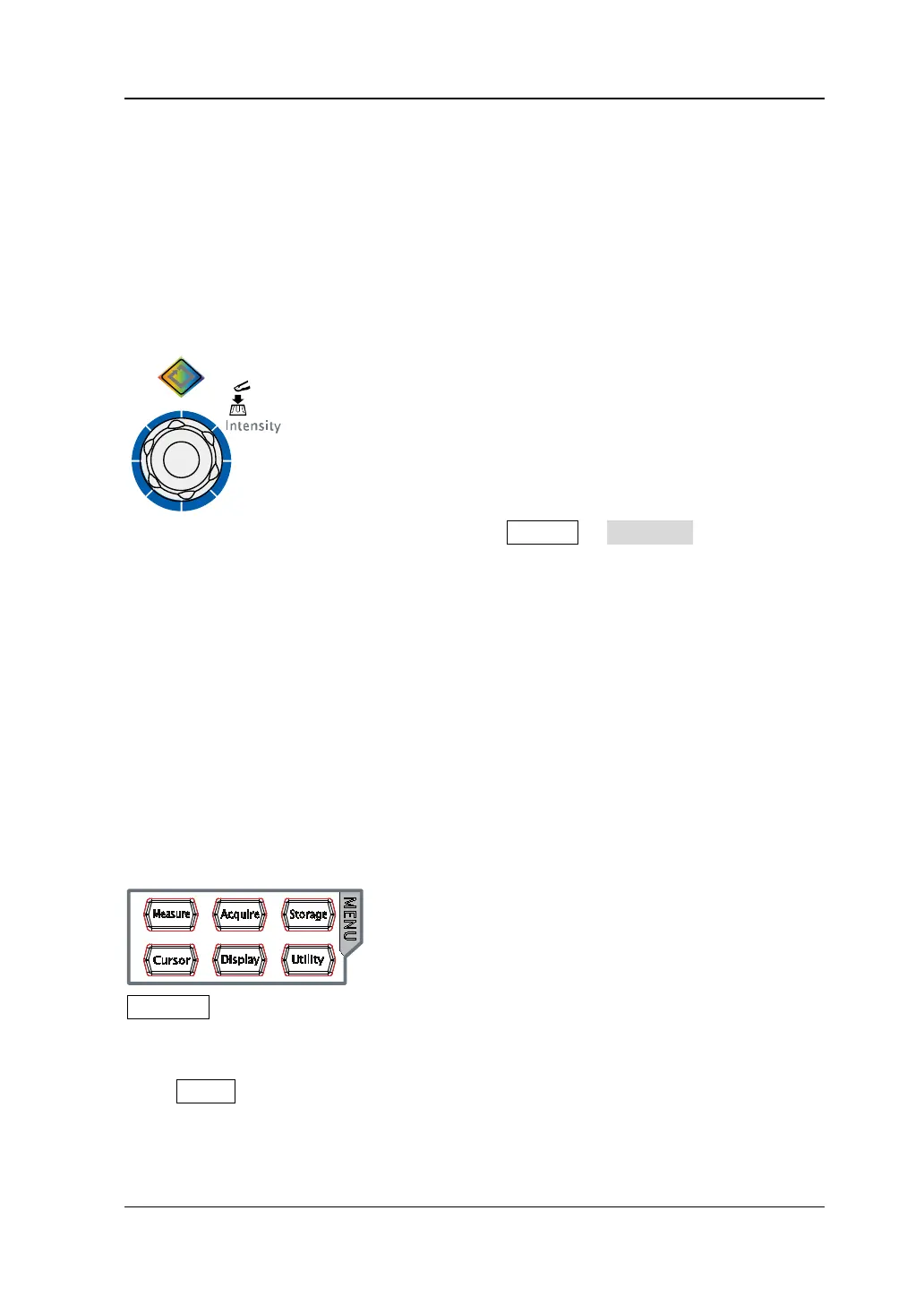

Knob
Adjust waveform brightness:
In non-menu-operation mode , turn this knob to adjust
the brightness of waveform display. The adjustable range
is from 0% to 100%. Turn clockwise to increase the
brightness and counterclockwise to reduce. Press down
this knob to reset the brightness to 50%.
You can also press Display  Intensity and use the
knob to adjust the waveform brightness.
Multifunction Knob (the backlight goes on during operation):
In menu operation, press any menu softkey and turn the knob to switch the desired
submenu under this menu and then press down the knob to select the current
submenu. It can also be used to modify parameters and input filename. In addition,
for DS1000Z-S models oscilloscope, in the source interface, press the corresponding
menu softkey and then press the knob; the numeric keyboard will pop-up on the
screen and you can input the desired parameter value and unit directly using this
knob.
Measure: press this key to open the measurement setting menu. You can set the
measurement setting, all measure, statistic function etc.
Press MENU at the left of the screen to switch the measurement menus of 24
waveform parameters. Then, press down the corresponding menu softkey to quickly
realize one-key measurement and the measurement result will be displayed at the
