Rigol DS1000Z Series User Manual

RIGOL Chapter 1 Quick Start
DS1000Z User’s Guide
1-14

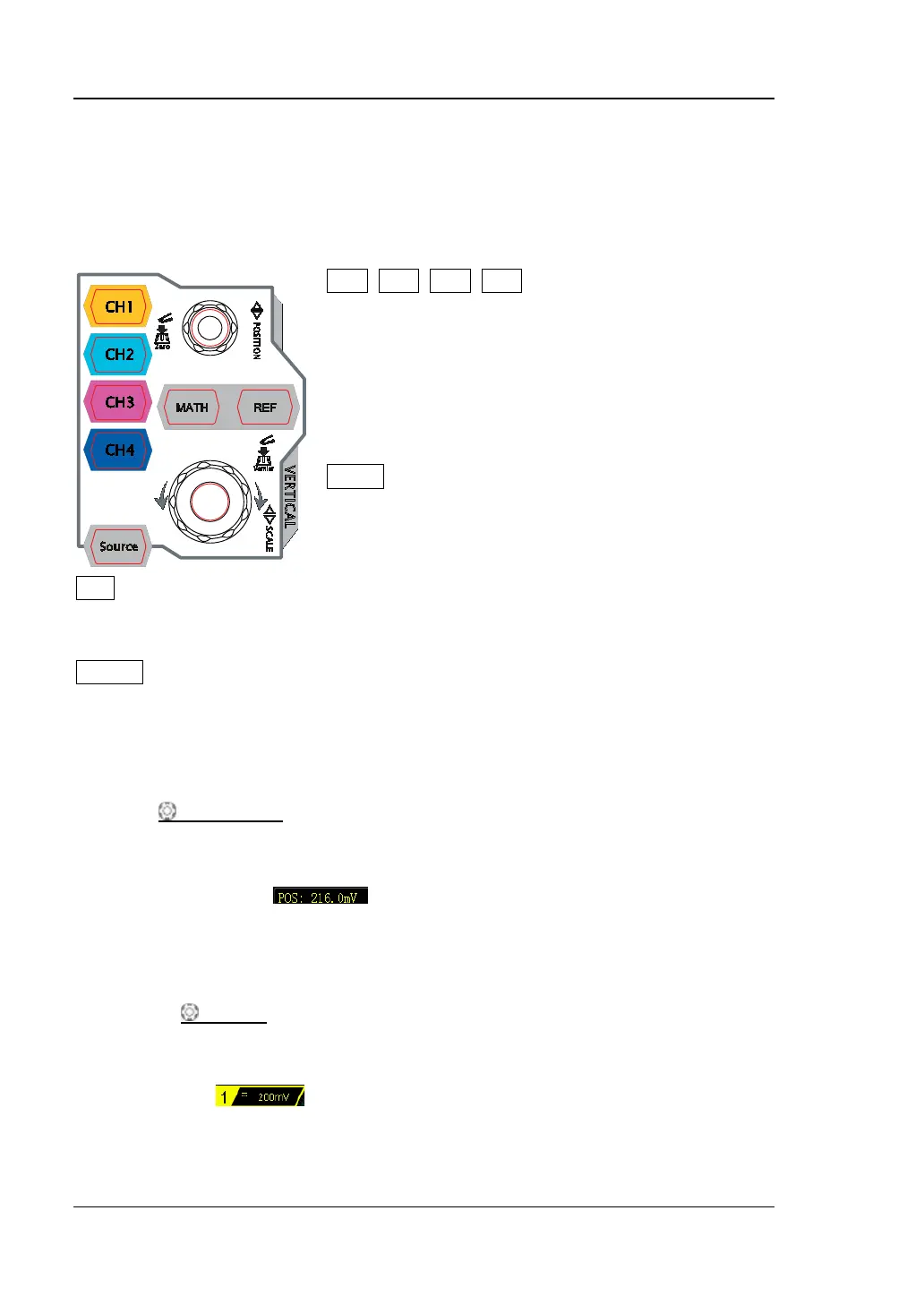

Front Panel Function Overview
VERTICAL
CH1, CH2, CH3, CH4: analog input channels. The 4
channels
are marked by different colors which are also
used to mark both the corresponding waveforms on
the screen and the channel input connectors. Press
any key to open the corresponding channel menu and
press again to turn off the channel.
MATH: press this key to open the math operation
menu under which add, subtract, multiply, divide, FFT,
A&&B, A||B, A^B, !A, intg, diff, sqrt, lg, ln, exp and
abs are provided.
REF: press this key to enable the reference waveform function to compare the
waveform actually tested with the reference waveform.
Source: press this key to enter the source setting interface. You can turn on or off
the outputs of the [Source1] and [Source2] connectors at the rear panel, edit the
output signal and view the current signal status (such as the frequency, amplitude
and phase).
Vertical
POSITION: modify the vertical position of the current channel
waveform. Turn clockwise to increase the position and turn counterclockwise to
decrease. During the modification, the waveform would move up and down and the
position message (e.g.
) at the lower-left corner of the screen would
change accordingly. Press down this knob to quickly reset the vertical position to
zero.
VERTICAL
SCALE: modify the vertical scale of the current channel. Turn
clockwise to decrease the scale and turn counterclockwise to increase. During the
modification, the amplitude of the waveform would enlarge or reduce and the scale
information (e.g.
) at the lower side of the screen would change
accordingly. Press down this knob to quickly switch the vertical scale adjustment
modes between “Coarse” and “Fine”.
