Chapter 2 To Set the Vertical System RIGOL
DS1000Z User’s Guide
2-7
Channel Label
To identify different analog channels, you can set another label for each channel
(such as ). Press CH1 Label to enter the label modification interface, you
can use the built-in label or input the label manually and the length of the label can
not exceed 4 characters. Note: only English input method can be used for this
operation.
Press Display to turn on or off the display of channel label and the default is CH1.

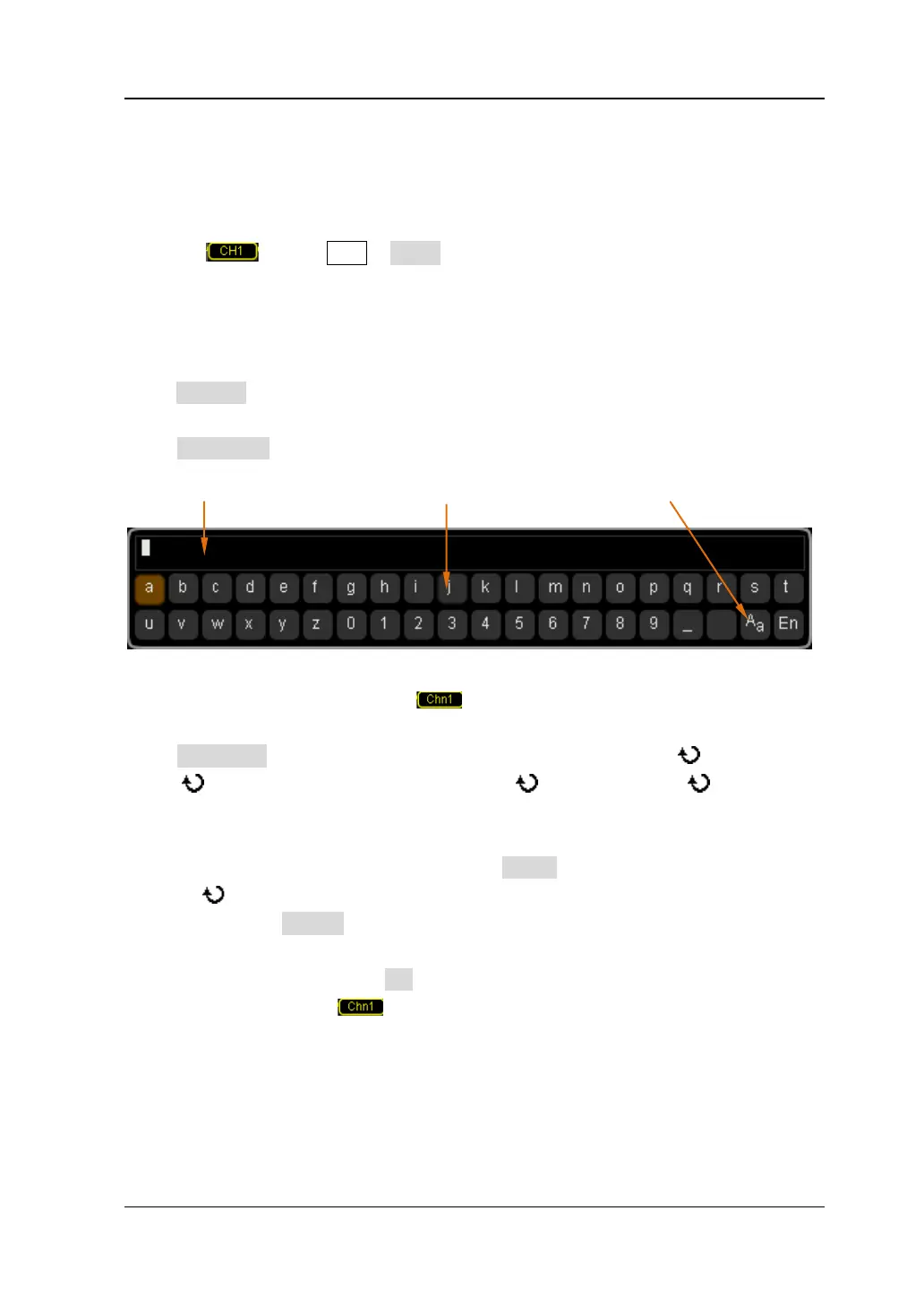

Press Label Edit to enable the label editing interface as shown in the figure below.
For example, editing the label for “
”.
Press Keyboard to select the “Keyboard” area. Select “Aa” using and press
down
to switch it to “
a
A”. Select “C” using and press down to input the
character. Use the same method to input “hn1”.
To modify or delete the input character, press Name to select the “Name Input Area”
and use
to select the character to be modified or deleted. Enter the desired
character or press Delete to delete the character selected.
After finishing the input, press OK to finish the modification and if the display is
turned on, another label
will be set for the channel.
Name Input Area Keyboard Upper/Lower Case Switch
