Playback Setting

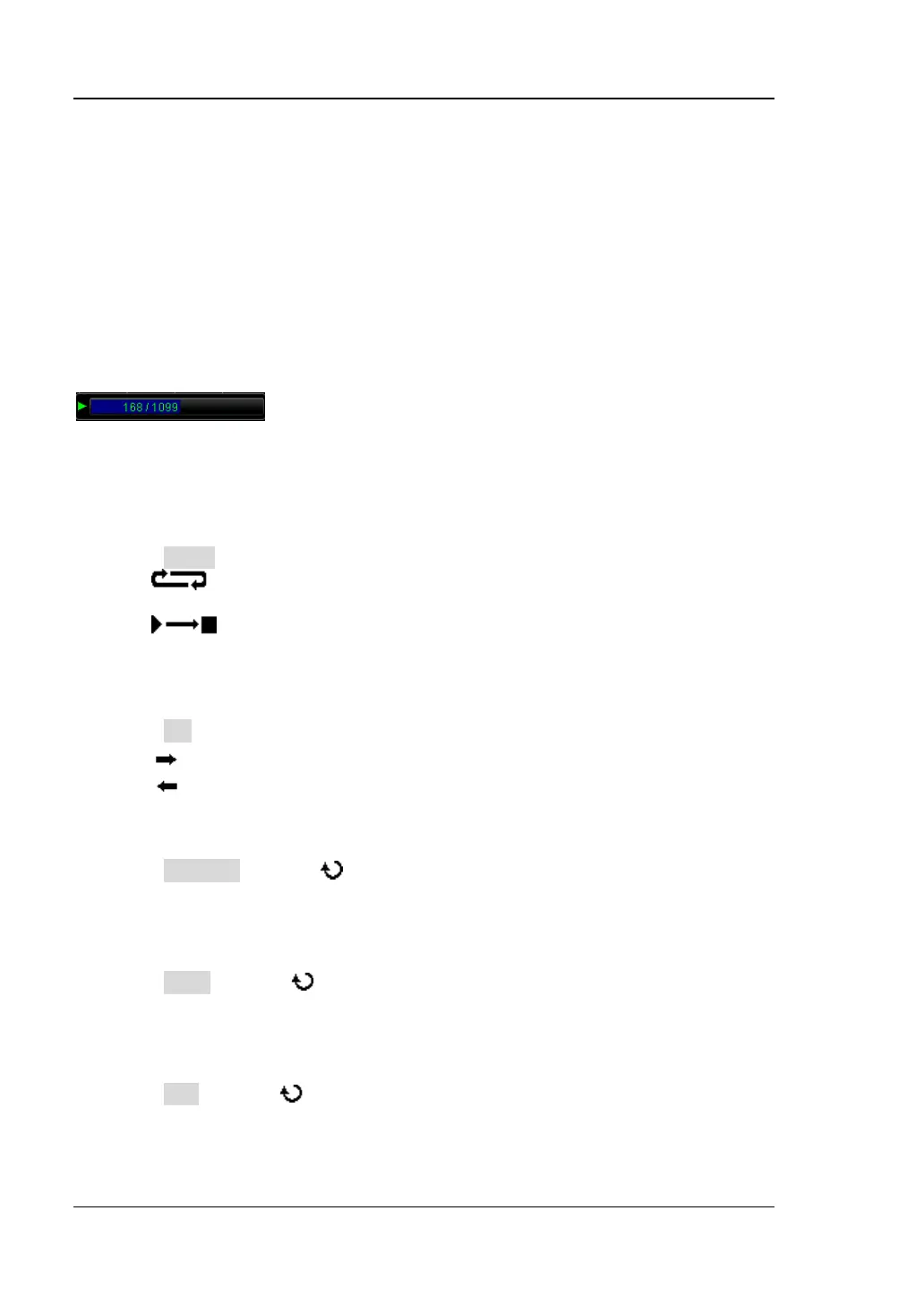

Waveform playback can play back the waveforms currently recorded. At this point,
the information as shown in the figure below is displayed at the upper right corner of
the screen; the data on the left indicates the specific frame currently displayed on
the screen and during the playback, this value would change continuously. The data
on the right indicates the maximum number of frames that can be recorded
currently.
Please refer to the following descriptions to set the playback parameters.
1. Play Mode
Press Mode to set the playback mode to cycle or single.
 : cycle playback. Play from the start frame to the end frame and then
repeat until you stop it manually.

: single playback. Play from the start frame to the end frame and
then stop.
2. Play Direction
Press Dir to set the playback direction to forward direction or inverse direction.
 : forward direction, Play from the start frame to the end frame.

: inverse direction, play from end frame to start frame.
3. Interval
Press Interval and use to set the time interval of playback. The range
availbale is from 100 ns to 10 s and the default is 100 ns.
4. Start Frame
Press Start and use to set the start frame of playbak. The default is 1 and
the maximum is the maximum number of frames recorded.
5. End Frame
Press End and use to set the end frame of the playback. The default is the
total number of frames of the waveform recorded.
