Rigol DS1000Z Series User Manual

RIGOL Chapter 1 Quick Start
DS1000Z User’s Guide
1-12
Rear Panel Overview

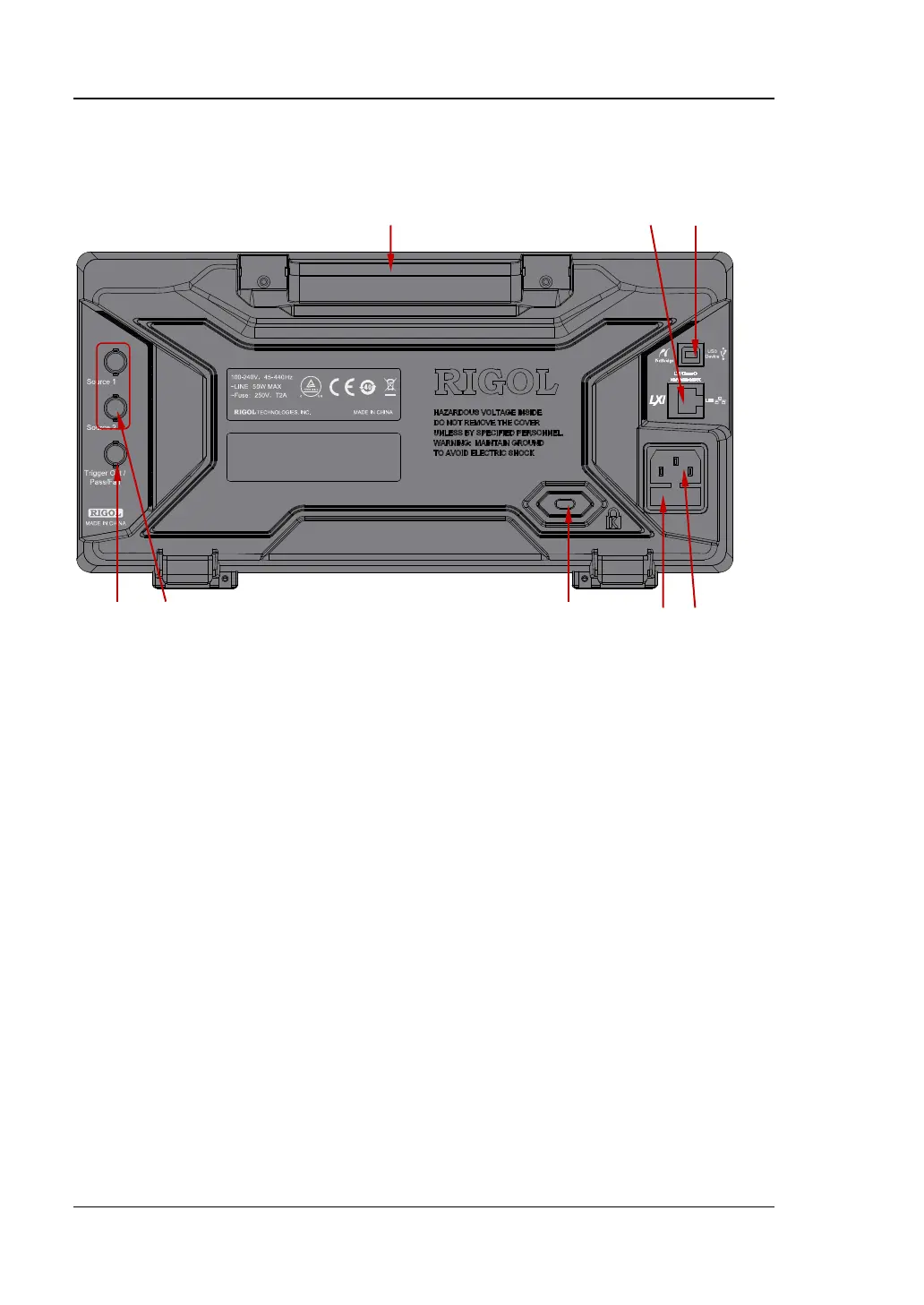

Figure 0-10 Rear Panel Overview
1. Handle
Pull up the handle vertically for easy carrying of the instrument. When you do
not need the handle, press it down.
2. LAN
Connect the instrument to the network via this interface for remote control. This
oscilloscope conforms to the LXI-C class instrument standards and can quickly
build test system with other instruments.
3. USB DEVICE
PictBridge printer or PC can be connected via this interface to print waveform
data or control the instrument using PC software or user-defined programming.
4. Trigger Out/Pass/Fail
Trigger Out: the oscilloscope outputs a signal that can reflect the current
capture rate of the oscilloscope at each trigger via this connector and connect
the signal to a waveform display instrument to measure the frequency of the
1 2 3
4 5 6 7 8
