Rigol DS1000Z Series User Manual

Chapter 1 Quick Start RIGOL
DS1000Z User’s Guide
1-15

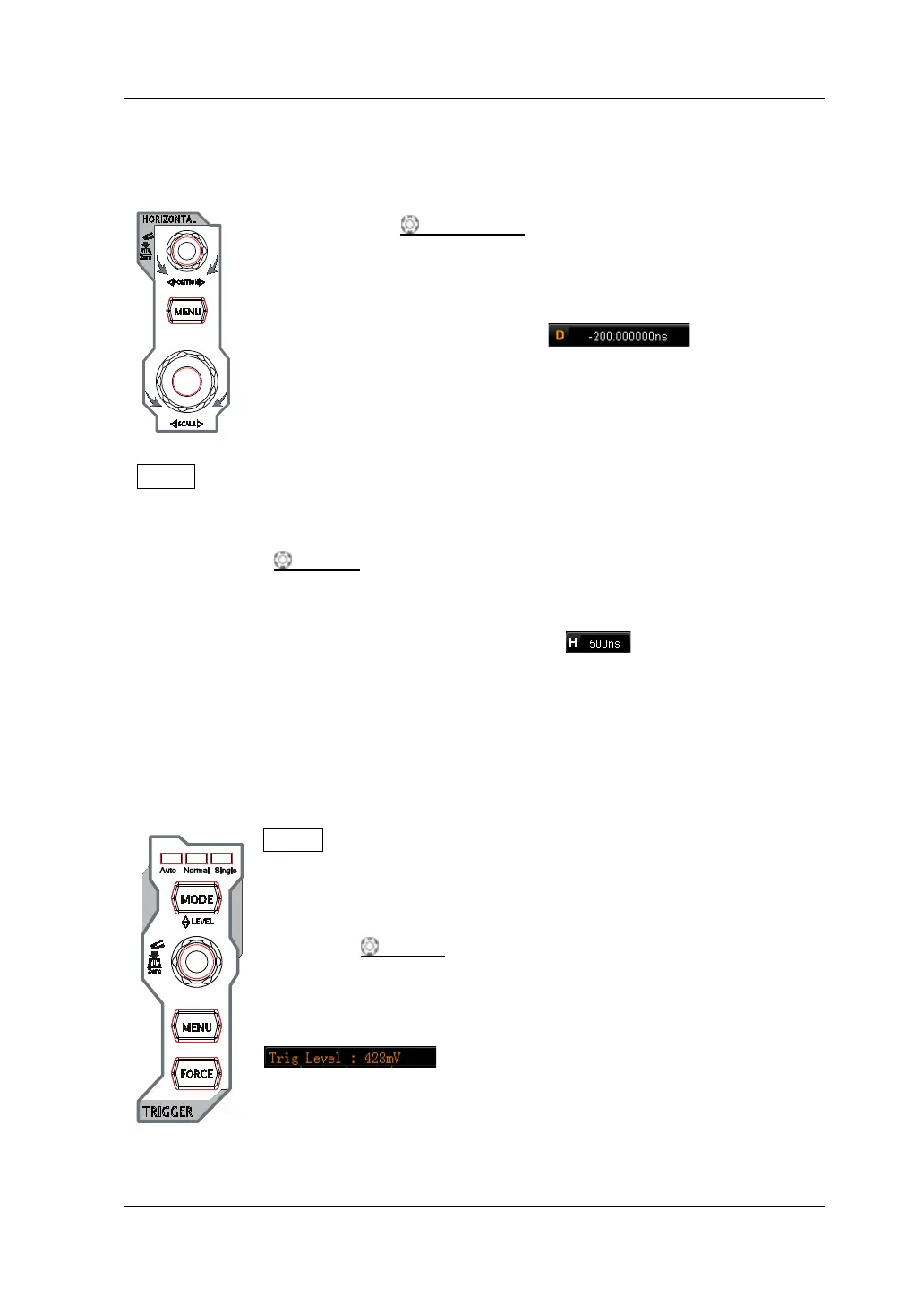

HORIZONTAL
HORIZONTAL POSITION
: modify the horizontal position.
The trigger point would move left or right relative to the center of
the screen when you turn the knob. During the modification,
waveforms of all the channels would move left or right and the
horizontal position message (e.g.
) at the
upper-right corner of the screen would change accordingly. Press
down this knob to quickly reset the horizontal position (or the
delayed sweep position).
MENU: press this key to open
the horizontal control menu under which to turn on
or off the delayed sweep function, switch between different time base modes.
HORIZONTAL
SCALE: modify the horizontal time base. Turn clockwise to
reduce the time base and turn counterclockwise to increase the time base. During
the modification, waveforms of all the channels will be displayed in expanded or
compressed mode and the time base message (e.g.
) at the upper side of
the screen would change accordingly. Press down this knob to quickly switch to
delayed sweep state.
TRIGGER
MODE: press this key to switch the trigger mode to Auto, Normal
or Single and the corresponding state backlight of the current
trigger mode would be illuminated.
TRIGGER
LEVEL: modify the trigger level. Turn clockwise to
increase the level
and turn counterclockwise to reduce the level.
During the modification, the trigger level line would move up and
down and the value in the trigger level message box (e.g.
) at the lower-left corner of the screen would
change accordingly. Press down the knob to quickly reset the
trigger level to zero point.
